Auto Crimping Machine

Cylindrical Battery Automatic Hydraulic Sealing Machine

  • Model Number:

    TMAX-YAFK
  • Compliance:

    CE Certified
  • Warranty:

    One year limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • contact now
Product Details

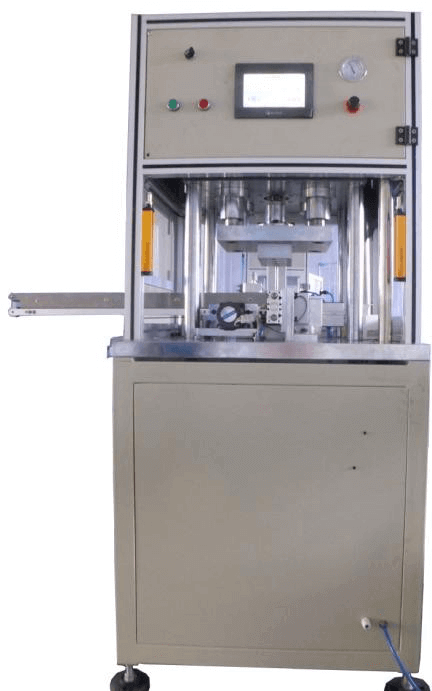

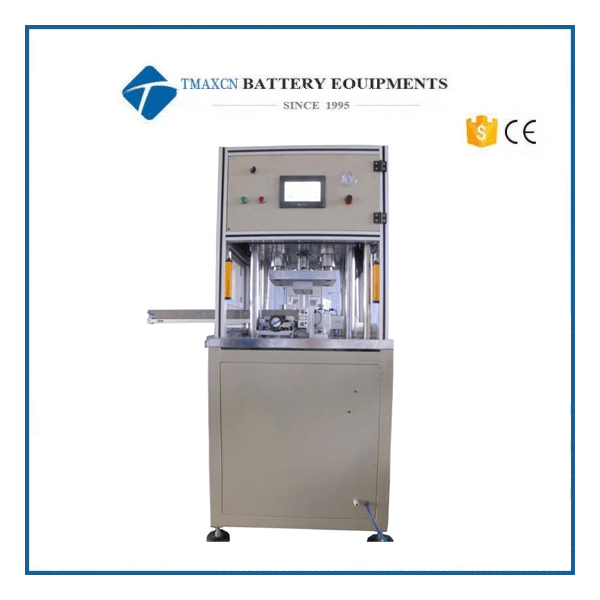

Cylindrical Battery Automatic Hydraulic Sealing Machine


Here is our product video link:

https://youtu.be/RSxyYskBm44


Equipment composition

No.

Name

Detailed description

Advantage



1

Oil pressure part

Touch screen operation, the equipment is provided with sealing pressure by hydraulic station and hydraulic cylinder.

The positioning of copper sleeve is accurate, wear-resistant, and the whole process of mold positioning.



2

Feeding section

Adjustable speed motor drives wear resistant feeding belt.

Lengthen the conveying device, increase the discharging quantity, automatically and accurately deliver the material to reduce the workload of the staff.



3

Pusher part

The precision guide rail pushes the battery to achieve the pre sealing, two sealing and three sealing step-by-step completion.

Step feeding



4

Clamping part

It is made of high-quality imported materials with high precision and strict manufacturing, and 4 positioning and die seat sliding are designed.

4 positioning and matching die bases



5

Discharge part

The discharging mechanism automatically unloads the electric core to the discharging chute

Discharging and discharging are on the same side, which makes it easier for employees to operate



6

Electrical part

Mitsubishi Electric PLC, the whole machine is connected with multiple inductive switches; the equipment will automatically alarm and stop in case of abnormal conditions; equipped with emergency stop, door opening protection and other functions

Convenient and safe operation


Specifications

Applicable steel shell model

18650/21700/26650 / 32650 /AA/AAA etc are available upon request

Rated voltage

380V,50Hz

Rated power

4.0KW

Working air pressure

0.5-0.6MPa

weight

670Kg

Height of material in and out and ground

910MM

External size

L1160*W700*H1680mm

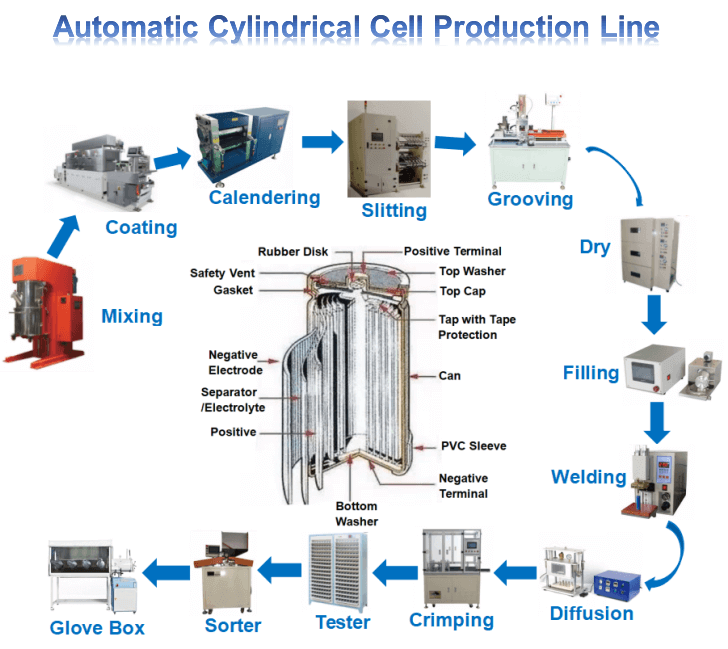

cylindrical cell production equipment






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Hydraulic Crimping Machine


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
