Cylindrical Battery Vertical Grooving Machine for Cylindrical Battery Pilot Line

Model Number:
TMAX-JS-XY-002-B
Input Power:
0.75KW
Dimension(L*W*H):
L1100*W700*H1250mm
Net Weight:
175KG
Compliance:
CE Certified
Warranty:
1 year
MOQ:
1
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
45 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

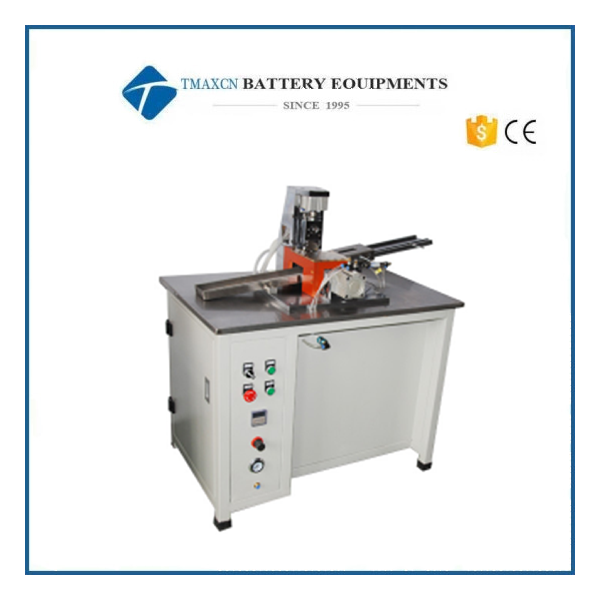

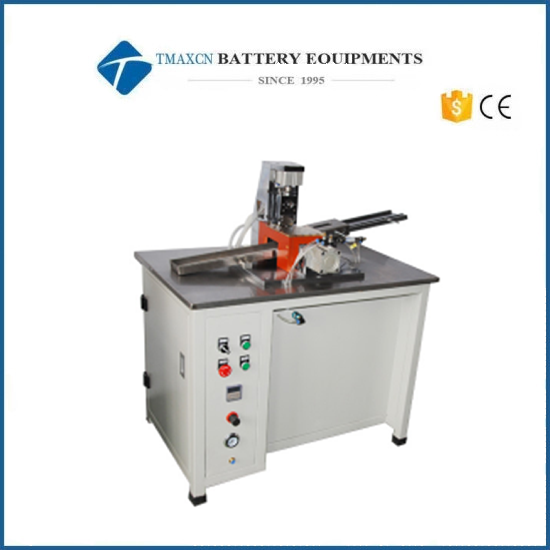

Cylindrical Battery Vertical Grooving Machine for Cylindrical Battery Pilot Line

1. Equipment Description

This equipment can be used in the rolling groove process of rechargeable nickel metal hydride, nickel cadmium and cylindrical lithium batteries. The grooving machine controls the coordinated action of each cylinder through PLC, intermediate relay and time relay. The motor drives the machine body to run at high speed, and uniformly and automatically grooves the cylindrical steel shell with electric core.

2. Basic configuration

	No.	Name	Speci	Brand	Remark
Main configuration	1	Cylinder		AirTAC
	2	Electrical control system		Mitsubishi
	3	Sensor		AirTAC
	4	Power Supply		Omron
	5	Interface	7 inch	VILON
	6	Electric component		Chint, Schneider
	7	Adjustable speed motor		Taizi
	8	Guide		Shangyin、CPC
	9	Guide rail guide post		TMAX	Brass, precision guide post
	10	Lower aluminum profile frame		Domestic	Electrophoretic treatment
	11	Equipment parts		TMAX	Aluminum anode, steel chrome plating

3. Basic parameters

Applicable steel shell model	18650
Rated voltage	380V，50Hz
Rated power	0.75KW
Operating air pressure	0.5-0.6MPa
Weight	175Kg
Height between material inlet and outlet and ground	900MM
Size	LWH：L1100W700H1250mm
Hob thickness error	±0.01mm
Knife edge finish	Above 0.4	（Micrometer measurement）
Accuracy error of grooving die head	±0.01mm	（Micrometer measurement）
Groove depth	±0.02mm	（Micrometer measurement）
Concentricity of grooving die head	±0.01mm	（Dial gauge measurement）
Concentricity of rolling groove die head and tail top	±0.02mm	（Dial gauge measurement）

4、Process parameters

	Size Position Name	Tolerance（mm）
	Concentricity of rolling groove	±0.03mm
	Internal diameter error of rolling groove	±0.03mm
	Groove height error	±0.03mm
	Height error of rolling groove edge	±0.03mm
	Height error of rolling groove edge，	Flaring≤0.08
	Scratch and peeling of coating	None

Detailed Images

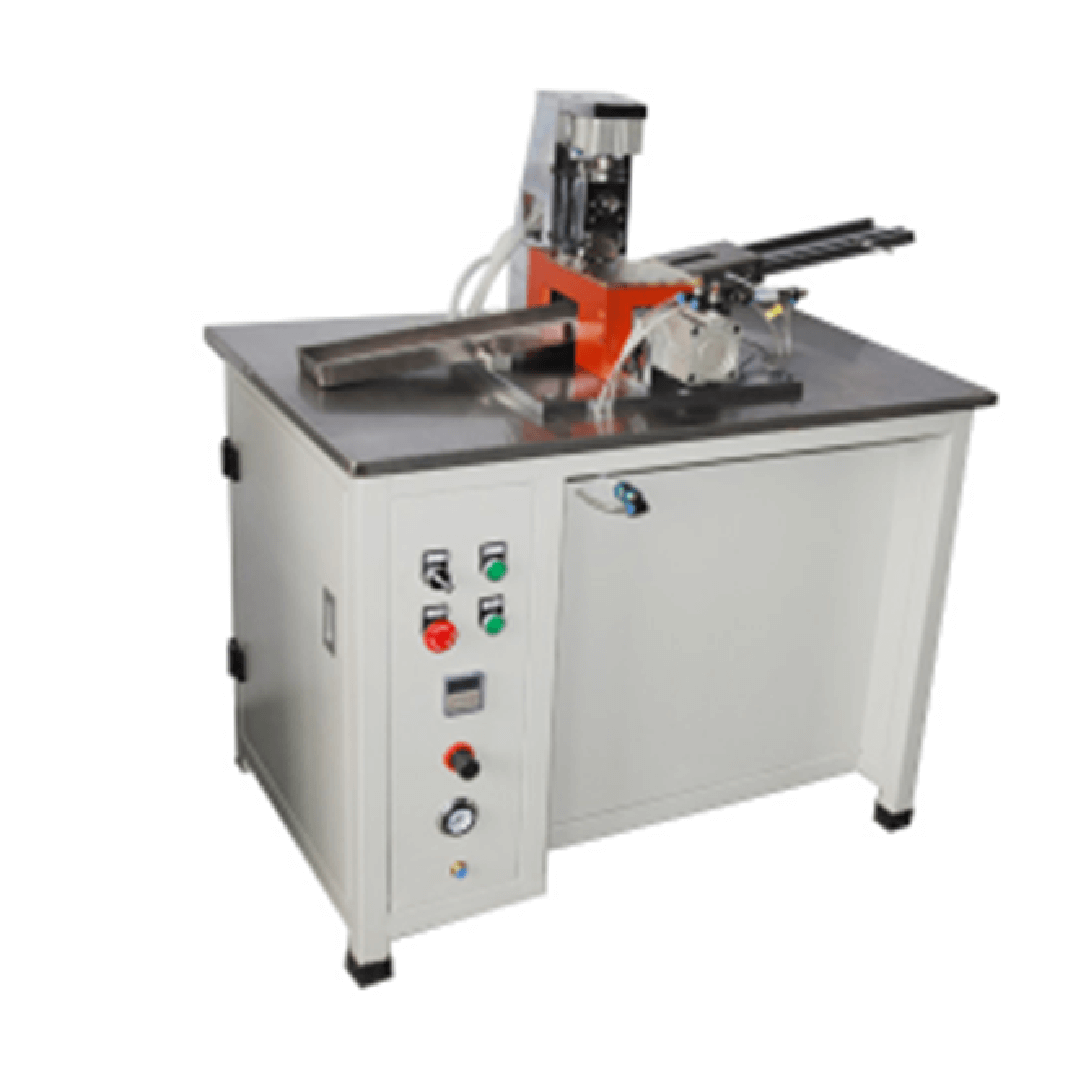

Cylindrical Battery Grooving Machine
