Tube Furnace

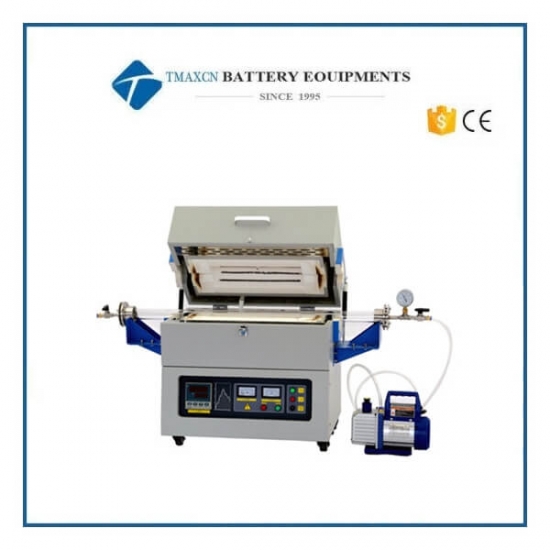

Double-Zone 1200°C Tube Furnace w/ Kanthal (Sweden) Heating Elements

  • Model Number:

    TMAX-Doublefurnace1
  • Dimension(L*W*H):

    Optional Alumina Tube
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Shipping Port:

    Xiamen
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details


Double-Zone 1200°C Tube Furnace w/ Kanthal (Sweden) Heating Elements




TMAX-Doublefurnace1 Double-zone tube furnaces use the famous Kanthal (Sweden) coil wire as their heating elements. Furnace hearth is built with Mitsubishi (Japan) high quality fiber materials. Temperature of this furnace is controlled by high precision temperature controller (Shimaden fp93 from Japan) with +/-1 °C accuracy and 40 programmable segments. Furnace housing is built with double-layer steel and two cooling fans inside keep the furnace body temperature low. Furnace tube is sealed by stainless steel vacuum sealing flanges, it can be used under vacuum and other gases condition. This tube furnace is an ideal tool for sintering all types of materials/chemical. Great for labs or college scientific research use.


These furnaces have built-in interface to a computer. We provide connection cable, adaptor and software that can be used to control the temperature and parameters of the furnace, all from your PC! You can also save a temperature curve for record or study purposes.


All our furnaces are CE certified.

Safety features

1        Furnace overheat protection cuts off power when temperature is over the desired range.

2        Thermocouple protection cuts off power when the thermocouple is broken or malfunctioned.

3        Temperature variation protection cuts off power when the difference between actual temperature and target temperature is off the desired range. (refer to controller’s manual)

4        Power failure protection resume furnace operation right after the point of failure when power is back up.

5        Stainless steel flange support makes sure the tube and flanges are secure and in their absolute position, it also longer the life of the tube

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

 tube furnaces

General specifications

 Electrical requirements

 110-240V, single phase, 50/60 Hz

 Tube material

 High purity quartz

 Min. working temperature

 Ambient

 Max. working temperature

 Zone1/Zone2: 1200°C

 Max. constant working temperature

 Zone1/Zone2: 1100°C

 Constant working temperature under vacuum

 1000°C

 Rated vacuum pressure

 0.001 Pa / 0.0075 millitorr / 0.00001 mbar

 Rated positive pressure

 0.02 MPa / 150 torr / 3 psi

 Refractory lining

 Mitsubishi (Japan) high quality 1500 grade fiber alumina

 Heating element type

 Zone1/Zone2: Kanthal (Sweden) coil wire

 Thermocouple type

 Zone1/Zone2: K

 Temperature controller

 Shimaden fp93 (Japan) with 4 programs and
 40 segments (i.e. 4 x 10 segments or 2 x 20 segments)

 Max/recommended heating rate

 20°C/min   10°C/min

 Heating zone length

 Zone1: 8 inches   Zone2: 8 inches

 Constant temp zone length

 Zone1: 4 inches   Zone2: 4 inches

 Temperature controller precision

 +/- 1°C

 Vacuum level (cold)

 0.1 Pa

 Vacuum sealing flange kit

 Stainless steel vacuum sealing flanges with one vacuum gauge,
 two valves and four thermal ceramic blocks.

 CE compliant

 Yes


Size comparison

 Tube size (OD x length)

 60mm x 1m

 100mm x 1m

 150mm x 1m

 Maximum output

 3 kW

 4 kW

 5.5 kW

 Furnace dimensions (LxWxH)

 24x16x23"

 25x16x24"

 26x18x26"



Standard Package

Part description

Quantity

Part image

tube furnace

 1 pc



 Stainless steel vacuum sealing flange set w/ pressure meter

 1 set



 Quartz tube (60/100mm: 2 pcs, 150mm: 1 pc)

1 pc



 Flow meter

 1 pc



 Spare heating element

2 pcs



 Stainless steel hook

 1 pc



 Alumina ceramic thermal block

 2 pairs



 Thermal gloves

 1 pair

 Spare fuse

2 pcs
