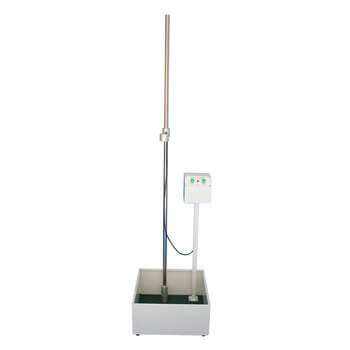

Drop Ball Impact Tester

Drop Ball Impact Tester Falling Ball Impact Test Instrument for Plastic Rubber

  • Model Number:

    TMAX-LQC
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Drop Ball Impact Tester Falling Ball Impact Test Instrument for Plastic Rubber


The machine puts the test product on the test bench, freely drops the steel ball of the specified weight from the specified drop height on the product, impacts the product, and then checks the appearance and performance of the product. This device is designed according to "6.10 Falling Ball Impact Peeling Performance Method" of "GB/T9962-1998 Safety Glass Materials for Construction-Safety Glass Performance Specifications and Test Methods", which meets the requirements for impact testing of construction safety interlayers. Reliability test standards: JIS R3205:1989, ISO/DIS125421 12543-6: 1997 AS/NZS2208: 1996, GB/T9962-1999.


Specifications

Ball weight

5564g110535g

Allowable error of steel ball weight

±5g

protective device

There are protective boxes around

Control and lifting methods

Circuit control electromagnet suction cup, manual lifting electromagnet fixing rod

Drop height

0~1500 mm (can be customized) (manually adjustable, steel scale display scale, select according to requirements)

Drop height display

Scale steel ruler plus square ruler vertical indication

Drop height accuracy

1mm

Drop rod shape

Square pole

Sample clamping method

Fixture clamping

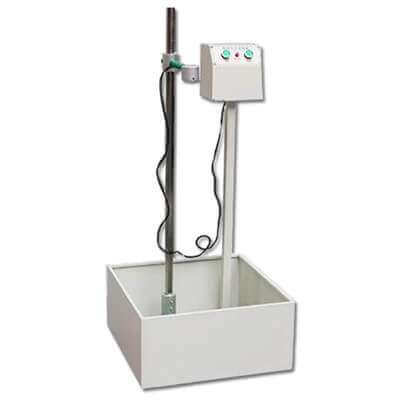

Drop Ball Impact Tester

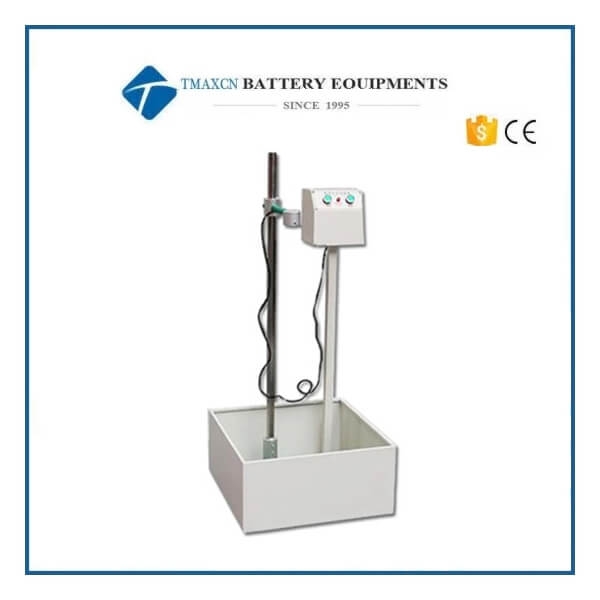

Drop Ball Impact Tester

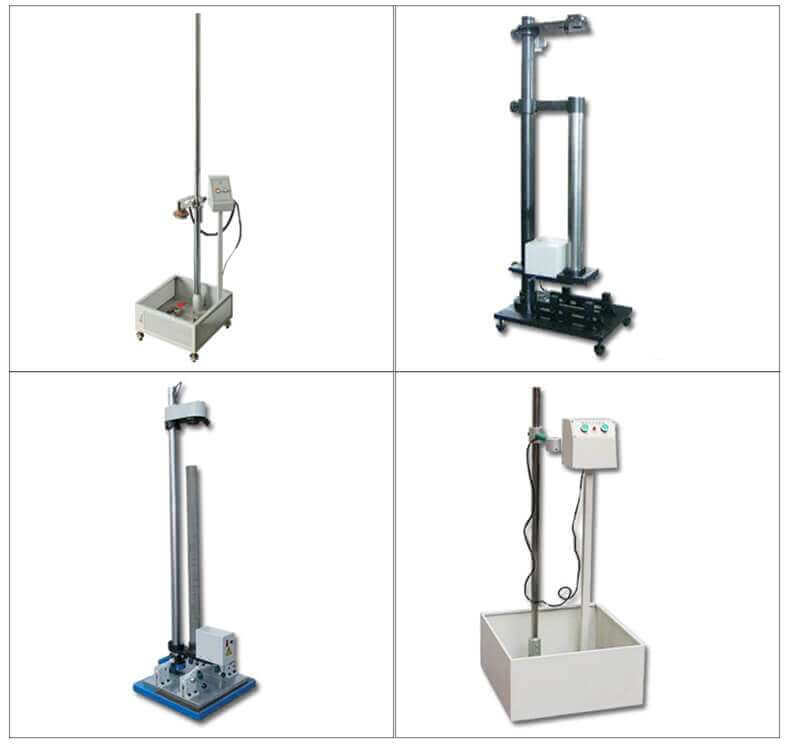

Drop Ball Impact Tester
