Stacking Machine

Dual-Station Fully Automatic Prismatic Cell Stacking Machine

  • Model Number:

    TMAX-ZTH-04
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    65 days
Product Details


Dual-Station Fully Automatic Prismatic Cell Stacking Machine



Ⅰ、Feature

1.High precision: By accurately positioning the electrode plates, the overall position accuracy of the electrode plates during lamination is ensured to be ± 0.3mm

2.Diaphragm accuracy: active unwinding, floating wheel tensioning of the diaphragm, overall module correction, electrostatic removal of the diaphragm, and diaphragm alignment accuracy of ± 0.2mm,

3.Dust control: material box and secondary positioning are equipped with effective dust suction mechanism; The suction cup and rod are made of non-metallic materials; Positive and negative electrode material boxes, secondary positioning, and 4.intermediate isolation treatment to prevent cross contamination of positive and negative electrode materials.

5.Multiple sheet leakage measures: material box swing, sheet separation brush, robotic arm servo shaking plate separation pole plate, ultrasonic sensor detection of multiple sheet leakage.

6.Corner detection of electrode lug: four Corner detection detection and lug detection of electrode lug to prevent the electrode lug from missing angle or folded angle from overlapping into the electric core.


Ⅱ、Specification

Locate mode

Mechanical positioning or CCD positioning

Stacking efficiency

Single station 1.0-1.2 (complete machine 0.5-0.6) s/pcs

Auxiliary time

<10s

Alignment accuracy between electrode and diaphragm

Center deviation ± 0.3mm

Diaphragm end face alignment accuracy

±0.3mm

Adjacent pole alignment accuracy

±0.2mm

Overall alignment accuracy of polar plates

±0.3mm

Number of laminations

Can be set within the thickness adaptation range

Outer diaphragm

Tail roll/no tail roll

Pass rate

≥99.5%

Utilization rate

≥98%

Overall dimensions

W4000mm x L2000mmx H2350mm

Weight/bearing capacity

About 5000Kg ; >650Kg/M2

Power

AC220V single-phase; 10% voltage wave induced soil disturbance; Power: 8KW; Frequency: 50Hz

Compressed air

0.5~0.7Mpa (5~7kgf/cm2 , dosage 400L/min

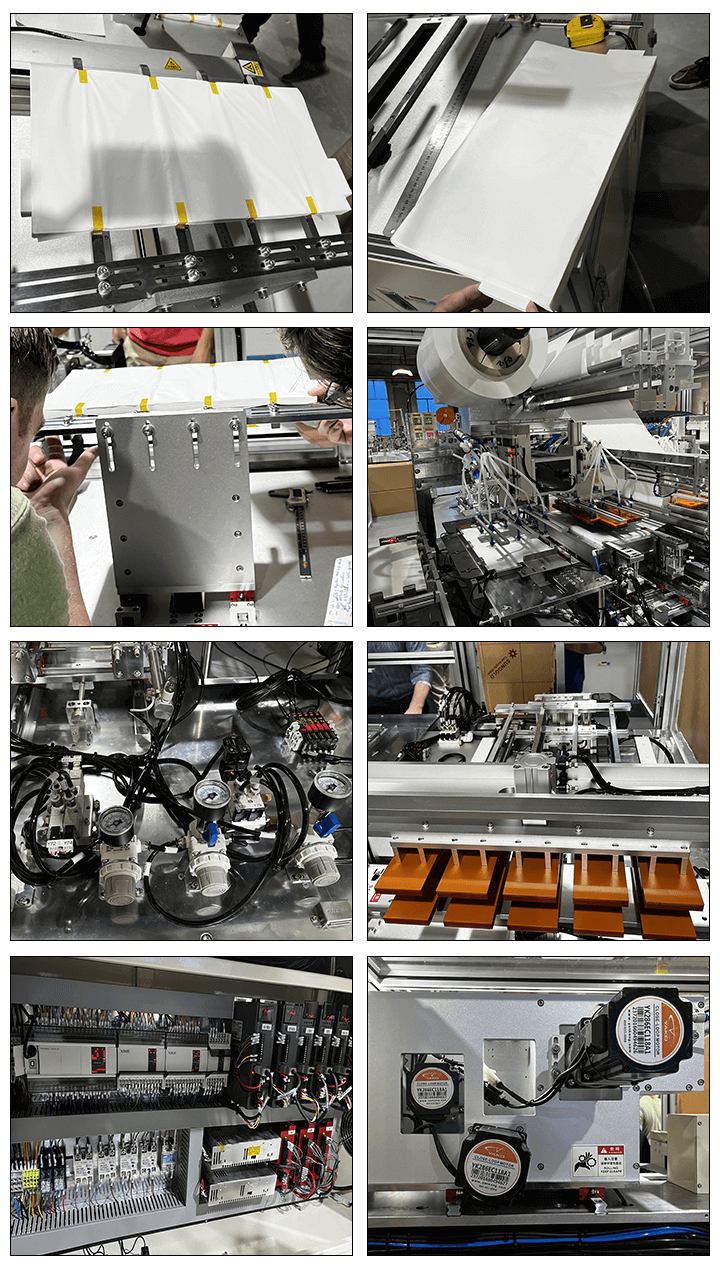

Ⅲ、Production Assembly Plant

  Detailed Images
