Lab coating machine

Economic Desktop Spin Coater (Max. 8000 rpm) with Complete Accessories

  • Model Number:

    TMAX-501
  • Compliance:

    CE Certified
  • Warranty:

    One Year limited warranty with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    7 day
  • contact now
Product Details

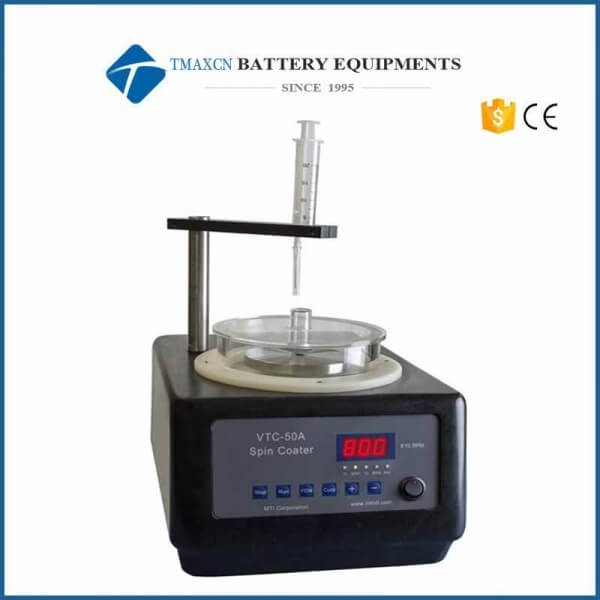

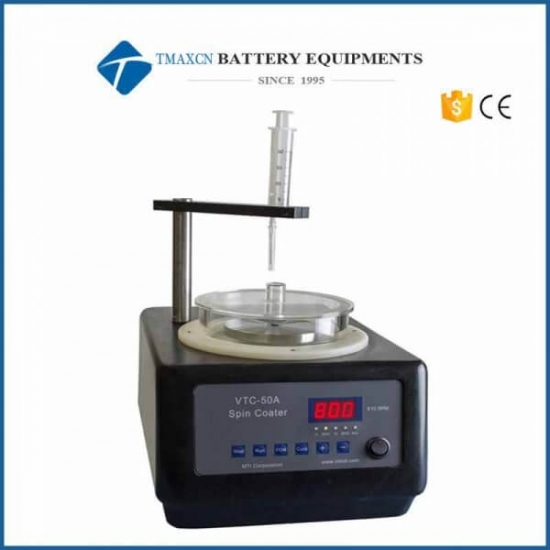

Economic Desktop Spin Coater (Max. 8000 rpm) with Complete Accessories


Specifications:

Working Voltage

110V AC / 220V AC selectable

Structure

· Heavy duty Aluminum casting case to keep spinning stable

· 110VDC motor

· Can not be used under Ar gas

Spin Plates

· Chamber size is 134mm diameter, can accept wafer sample 4" diameter at Max.

· Two 4" stainless steel spin plates are included, which can hold one or multiple samples by wax or double-sided tape

· One roll of 3M removable double-sided tape (3/4' W x 400" L) is included for immediate use (please click picture below to see specs and order spare tape)

Spin Speed

· Digital display with variable speed up to 8000 RPM

· Digital control panel with two programmable segments of different spin times (1~60s) and speeds

Liquid Injecting

· One 20 mL syringe is included for liquid injection

· Support rod and swing arm of injector are included for easy coating

· The syringe holder height can be adjusted and rotated freely along the support rod

Optional

· You may choose Precision Electronic Single Channel Pipette: 20 - 200uL for more accurate coating

· Using plasma cleaner to treat substrate surface before coating can improve film quality



Product Dimensions

 13''(L) x 10''(W) x 7''(H)

Net Weight

30 lbs

Compliance

CE Certified



· One year limited with lifetime support

· Rusting and damage due to improper storage condition or maintenance are not covered by warranty

Application Notes

·  In order to achieve optimal coating quality, please consider cleaning substrates by a plasma cleaner prior to coating. This will significantly reduce the surface tension on the substrates.

· You may place the compact spin coater into a glove box to operate in inert gas



Warnings

· Do not overflush the water bowl/base with any kinds of liquid. Excess liquid will leak into the motor shaft and cause damage. Please use fabric cloth to wipe out the residues remain in the bow/base.

· If necessary, turn on the water outlet when flushing the water bowl/base to avoid liquid overflowing during the operation

Shipping Dimensions

20"(L) x 16"(W) x 18"(H)

Shipping Weight

38 lbs



STANDARD PACKAGE:

Item # Description Qty
1 501 Desktop Spin Coater 1
2 4" Dia. Spindle Plate (one installed and one included in package) 2
3 Plastic Cover for operation safety 1
4 20mL Syringe for dropping coating solvent on the plate 1
5 Drain Hose for disposing of waste water 1
6 Removable Double Side Tape for sticking substrate onto the spindle plate 1
7 4" Dia. Soken Tape 5 pcs

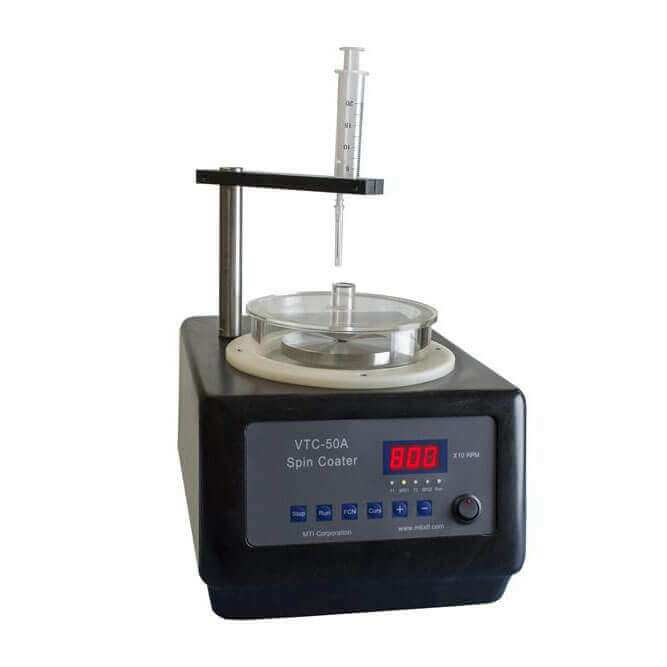

Desktop Spin Coater






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Rolling Cylinder Press


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
