Electrolyte Diffusion & Degassing Chamber for Pouch Cell Battery Research
Model Number:
TMAX-YXY-ZKJZDimension(L*W*H):
900x 620 x 800mmCompliance:
CE CertifiedWarranty:
1 yearMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Battery Electrolyte Filling Pump System With Electronic Control boxNext:
Bottle Top Dispenser Dispensette® S with 32oz Boston Round Glass Bottle: 1- 10 ml adjustable

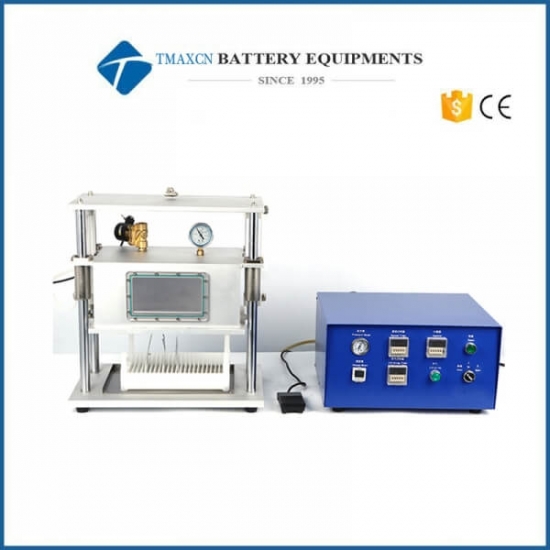

Electrolyte Diffusion & Degassing Chamber for Pouch Cell Battery Research
TMAX-YXY-ZKJZ electrolyte diffusion & degassing chamber is specifically designed for professional Li-ion Battery Research. It is mainly used for removing air from the electrolyteafter it's been injected into the polymer Li-ion cell or after the formation for final sealing under a vacuumed condition. It is easy to operate and suitable for all types of batteries(especially soft bag battery and cylinder battery). Unique periods of vacuum control system allows electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.
SPECIFICATIONS:
Inner Chamber Size |
L860mm*W542mm*H712mm |
Product Dimensions |
900mm(L) x 620mm(W) x 800mm(H) |
Power Supply |
110-240 V, Single Phase 50/60Hz |
Max. Power |
200W |
Compressed Air |
0.5-0.8Mpa |
Chamber Body |
12mm thick Aluminum case with
observation window |
Gas Filling Rate |
<= 5 psi |
Air Pressure Range |
0 - 1 Mpa (0 - 99 psi) Adjustable |
Vacuum Level |
1. Vacuum condition
remains stable, vacuum degree and vacuum circulation times can be set
independently 2. Vacuum mode
(once or twice) can be selected 3. Easy program
setting for specific vacuum condition 4. -0.9 - 0 kPa
adjustable |
Air Inflation Time |
0 - 99.99 sec |
Vacuum Condition Hold Time |
0 - 99.99 sec |
Operation Temperature |
-20 to 40 ℃ |
Warranty |
One Year limited warranty with
lifetime support |
Net Weight |
100KG |
Application Notes |
1. KF25
Feedthrough is included to allow operation inside TMAX Glove box. |
Slot Trays (included)
