Electrolyte Diffusion

Electrolyte Diffusion & Degassing Chamber for Professional Li-on Battery Research

  • Model Number:

  • Dimension(L*W*H):

    500 x 350 x 630mm
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • MOQ:

  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    10 day
  • contact now
Product Details

Electrolyte Diffusion & Degassing Chamber for Professional Li-on Battery Research

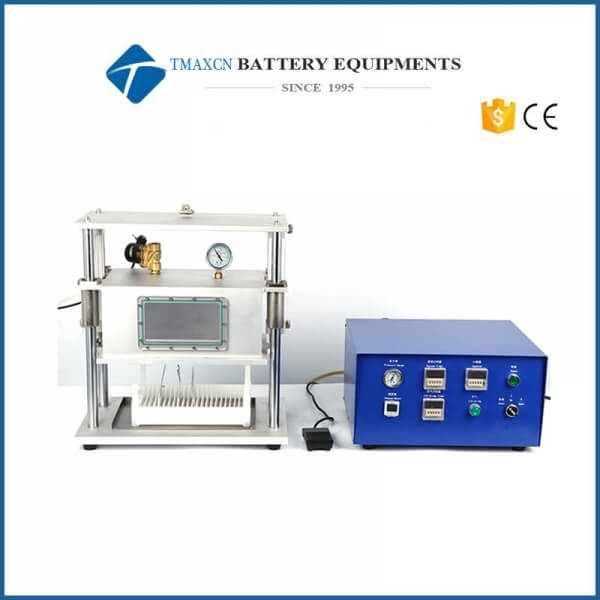

TMAX-JZ200 electrolyte diffusion & degassing chamber is specifically designed for professional Li-ion Battery Research. It is mainly used for removing air from the electrolyteafter it's been injected into the polymer Li-ion cell or after the formation for final sealing under a vacuumed condition. It is easy to operate and suitable for all types of batteries(especially soft bag battery and cylinder battery). Unique periods of vacuum control system allows electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.


Inner Chamber Size


Product Dimensions

1.     Vacuum Box: 500mm(L) x 350mm(W) x 630mm(H)

2.     Control Unit: 460mm(L) x 220mm(W) x 340mm(H)

Power Supply

110-240 V, Single Phase 50/60Hz

Max. Power


Compressed Air


Chamber Body

12mm thick Aluminum case with observation window

Gas Filling Rate

<= 5 psi

Air Pressure Range

0 - 1 Mpa (0 - 99 psi) Adjustable

Vacuum Level

1.     Vacuum condition remains stable, vacuum degree and vacuum circulation times can be set independently

2.     Vacuum mode (once or twice) can be selected

3.     Easy program setting for specific vacuum condition

4.     -0.9 - 0 kPa adjustable

Air Inflation Time

0 - 99.99 sec

Vacuum Condition Hold Time

0 - 99.99 sec

Operation Temperature

-20 to 40


One Year limited warranty with lifetime support

Net Weight


Application Notes

1. KF25 Feedthrough is included to allow operation inside TMAX Glove box.
2. Such a Feedthrough ensures air-tightness of glove box.

Electrolyte Diffusion

Electrolyte Diffusion

Electrolyte Diffusion



1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.

Electrolyte Diffusion

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
