Functions and Features



· Flow rate 0.05 to 380 mL/min adjustable. Flow rate depends on drive rpm and tubing size

· Digital display for information including RPM and flow rates

· Stepper motor drive for high precision, stable transmission

· Stepper motor delivers smooth operation and long service life

· Operating parameters are automatically saved and recalled upon starting up

Speed

· 1~100 rpm, reversible

Speed Precision

· 0.1 rpm

Speed Control

· Rotary coded switch with keypad

Display

· 128 x 64 mm graphic LCD display

Dimensions (L × W × H)

· 202 × 160 × 239 (mm)

Power Supply

· AC 110V 50Hz/60Hz

· For operation under AC208-240V,you may order additional (100W transformer)

Power Consumption

· <50 W

Operating Condition

· Temperature 0 to 40 °C , Relative humidity < 80%

Shipping Weight & Dimensions

· 25 lbs, 15"x15"x11"

 P/N

                                          Description

Quantity

EQ-BK-380-2

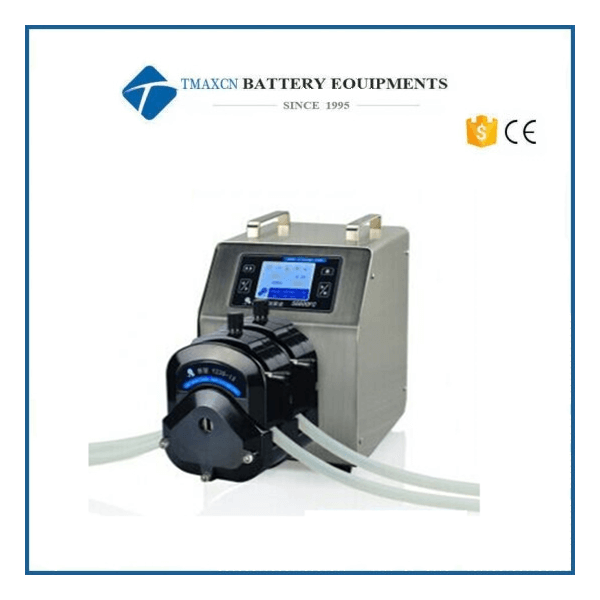

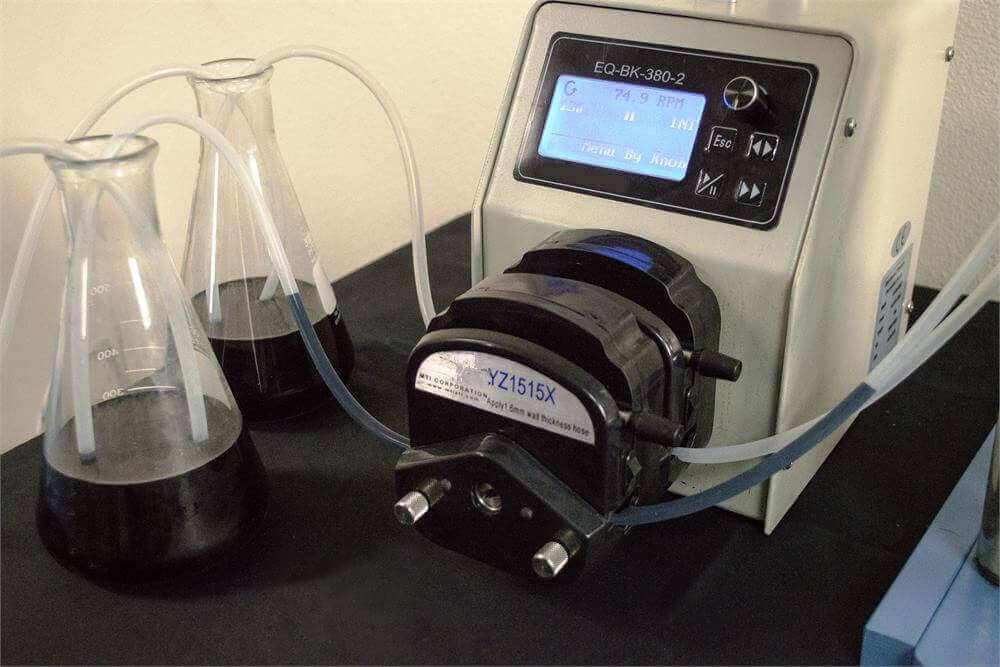

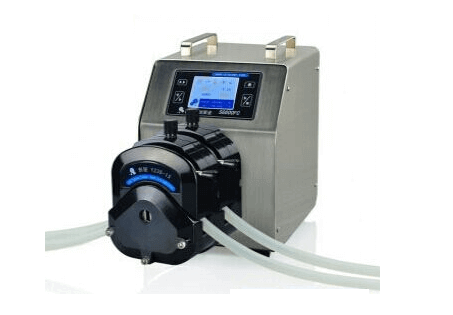

Dual Channel Precision Peristaltic Pump 0.05- 380ml/min adjustable

1

Hose-1.6mm

One Rubber Water Hose (1/16" Wall Thickness) 

1 set

PLUG-110

Power Cord (For operation under AC208-240V without plug, please order separately)

1
