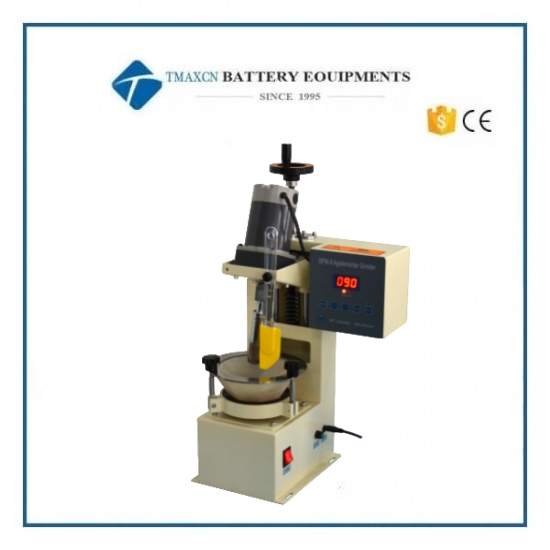

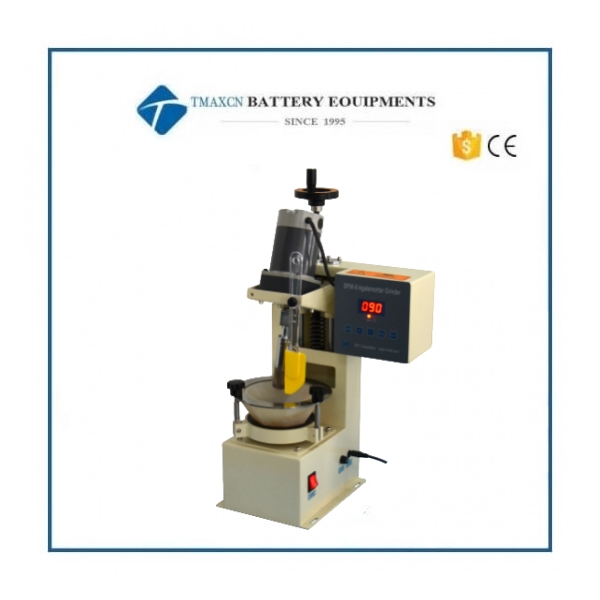

Food Chemical Micro Powder Agate Bowl Grinder with Agate Mantle



Product description

SFM-8 agate bowl grinder is mainly composed of grinding rod, agate mantle and scraper three parts, the working process in the agate mantle clockwise rotation of the process of grinding rod on the mantle of solid particles in the grinding to make solid particles smaller and finer, while the fixed scraper will be the edge of the mantle of the particles scraped off the solid particles back to the mantle to continue to grind, in the agate mantle and the movement of the grinding rod for the During the movement of agate grinding bowl and grinding rod, the grinding opportunity for each solid particle is equal, so the particle size of the milled powder is uniform. For different solid particles to set a reasonable grinding time (in general, the longer the grinding time, the finer the particles), so that the coarse particles and fine particles are milled into very fine powder particles, particle size can reach the micron level, and some can even reach the nanometer level, the whole process of grinding can be automated control.SFM-8 onyx mantle grinder is an ideal milling equipment for small amount of powder grinding in the laboratory. The SFM-8 agate bowl grinder is the ideal milling equipment for small amount of micro powder grinding in the laboratory.



Main features

1. The strength of grinding particles can reach micron level.

2. Precise control of rotating speed of grinding rod and grinding time.

3. Applied to the grinding of super-hard material micro-powder, electronic micro-powder, resin micro-powder, food micro-powder, medicine micro-powder, chemical micro-powder.

4. Simple operation.



Technical parameter

Product name	SFM-8 Agate bowl grinder
Product model	SFM-8
Main parameters	1. Voltage: AC110V/220V 50Hz/60Hz 2. Power: research bowl 10W, research rod 25W 3. Research bowl and research rod material: agate 4. Research bowl caliber: Ø 120mm 5. Research bowl depth: 34mm 6. Grinding bowl speed: 10rpm 7. Roller speed: 20rpm-90rpm 8. Grinding time: 0-900min 9. Grinding volume: measuring cylinder powder about 30ml, salt as the basis for the weight of about 45g
Product specification	Size：250mm×320mm×580mm； Weight：12kg
