Cable Bend Tester

Four-station Button Switch Key Lifetime Test Machine Phone Computer Key Life Test Instrument

  • Model Number:

    TMAX-AJC
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

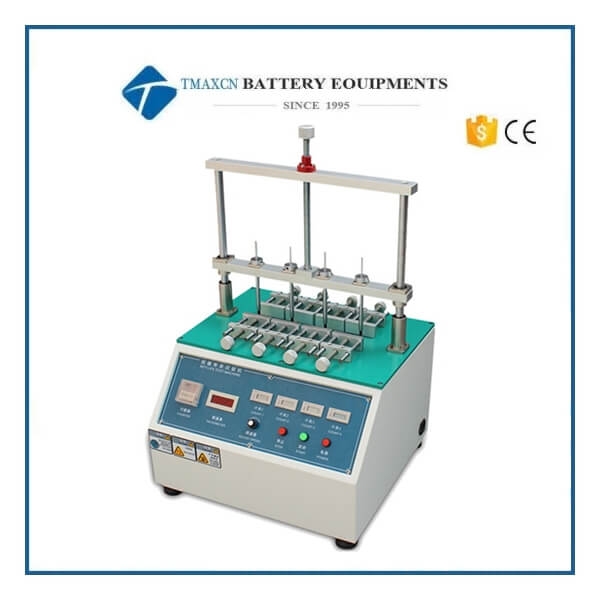

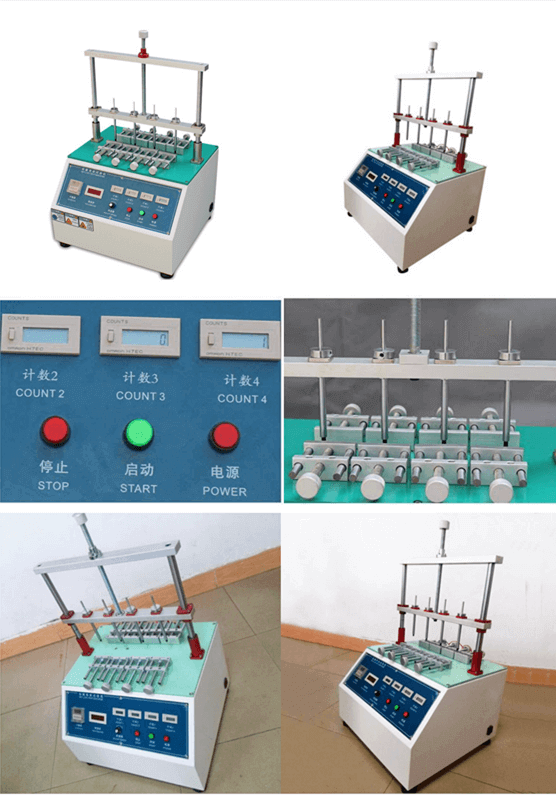

Four-station Button Switch Key Lifetime Test Machine Phone Computer Key Life Test Instrument


The key life testing machine is suitable for life testing of mobile phones, computers, lamps and electrical appliances, smart home equipment, key switches, touch switches, membrane keys, rubber keys, silicone keys and other keys. This machine is to place the product on the test position of the corresponding station, and test the service life of the product with the key test bar under a certain test load, speed, stroke and times.


Features

1. The box body is treated with electrostatic spray paint, and the worktable is treated with aluminum sand blasting, which is beautiful and generous. The design of the whole machine is reasonable and the structure is tight, and the operation is stable, safe and accurate;

2. According to the test and manufacturing of various key products, the test fixture and stroke can be adjusted and widely used;

3. Four groups of stations work at the same time, greatly improving the test efficiency;

4. Test speed, times, humanized design, convenient and fast operation


Specifications

Test station

4 (simultaneously)

Experiment counter

0-99999999 (can be preset, LCD display)

Test distance range

0-60mm

Test rod fixture adjustable range

0-180mm

Machine weight

60KG

Load weight

80, 50, 100, 200, 300, 500G (optional)

Test speed

5-60 times/minute (knob adjustable, LCD display)

Experimental fixture conventional clamping range

60*70mm (manually adjustable)

Dimensions

1000*400*550mm(L*W*H)

Working power

AC220V 50HZ

Test conduction number counter

0-999999 times (four stations turn on automatic technology, disconnect automatically stop counting)



Key Life Test Machine
