Powder Grinding Machine

Full Directional Rotation Lab Scale Micron Fine Milling Powder Grinding Ball Mill

  • Model Number:

    TMAX-QXQM
  • Input Power:

    0.75KW
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

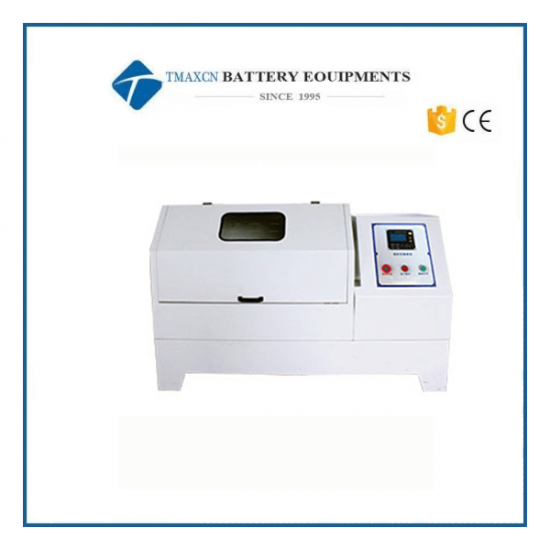

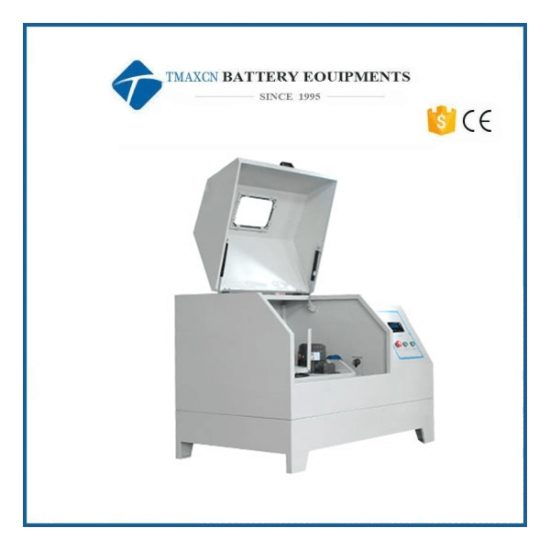

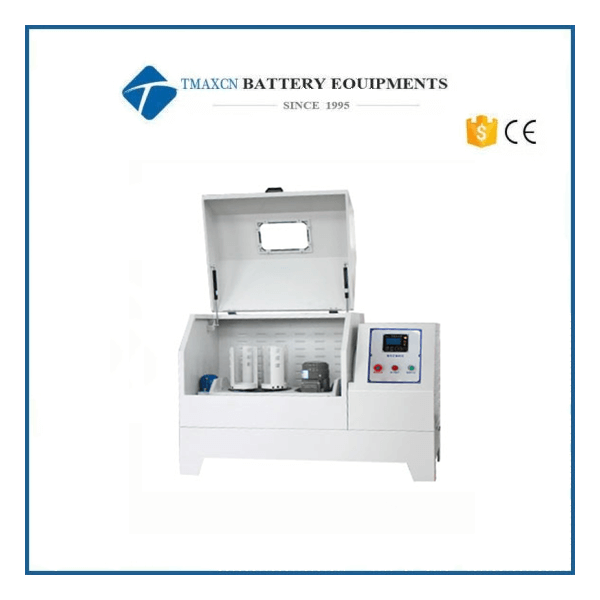

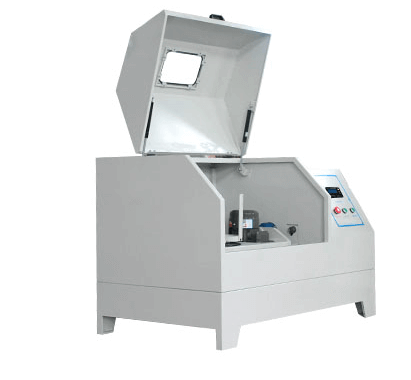

 Full Directional Rotation Lab Scale Micron Fine Milling Powder Grinding Ball Mill





Overview

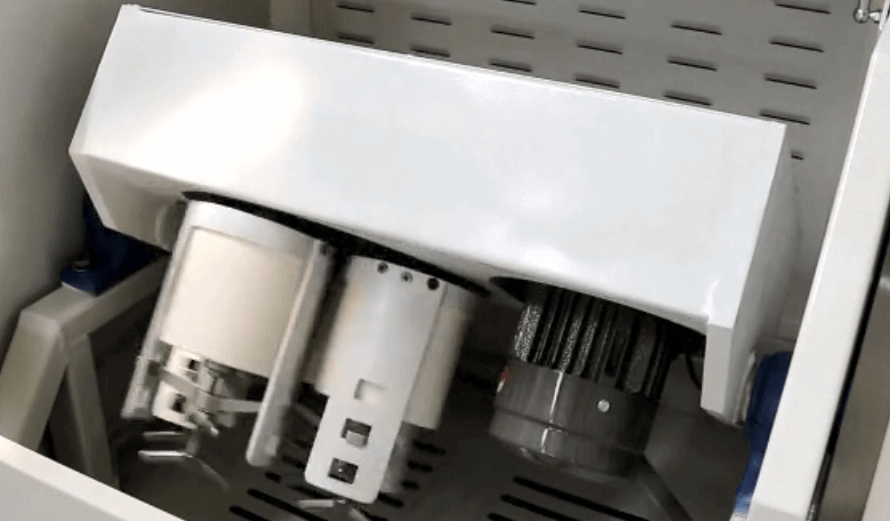

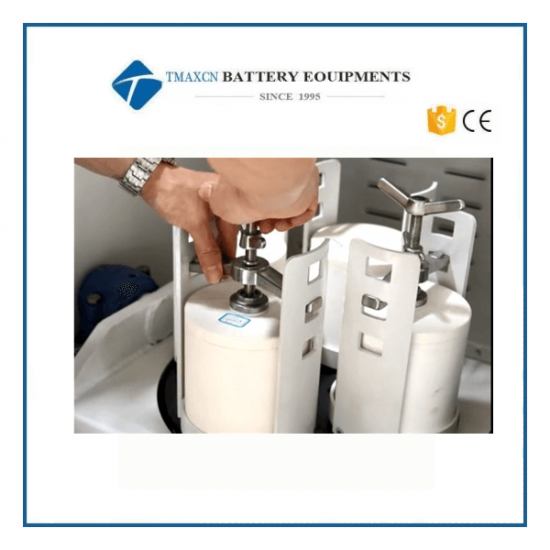

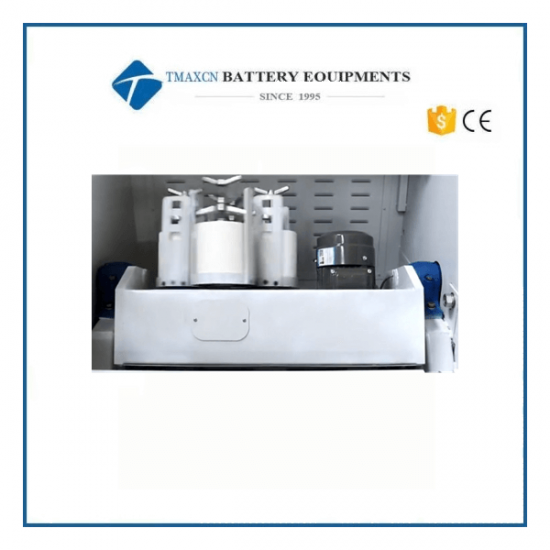

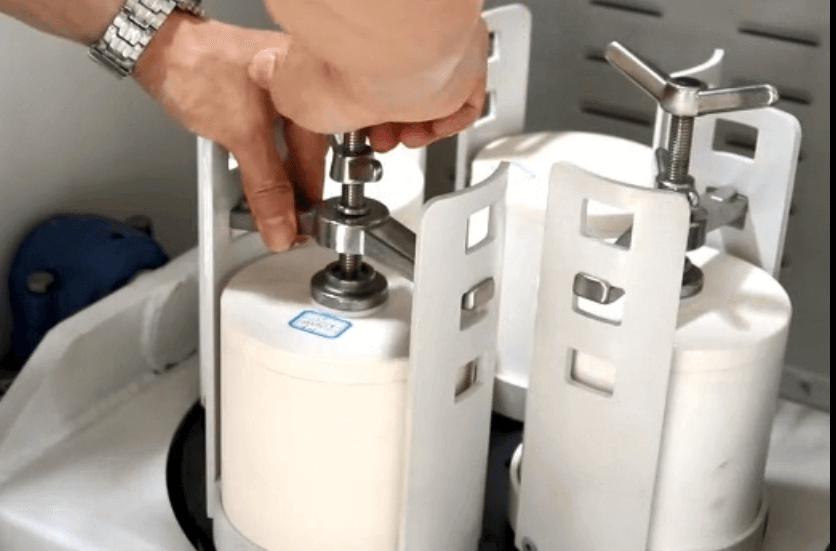

QXQM series planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360 degree rotation. And the balls in the tanks grind and mix samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground samples can be as small as 0.1 micron meter. It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.



Features

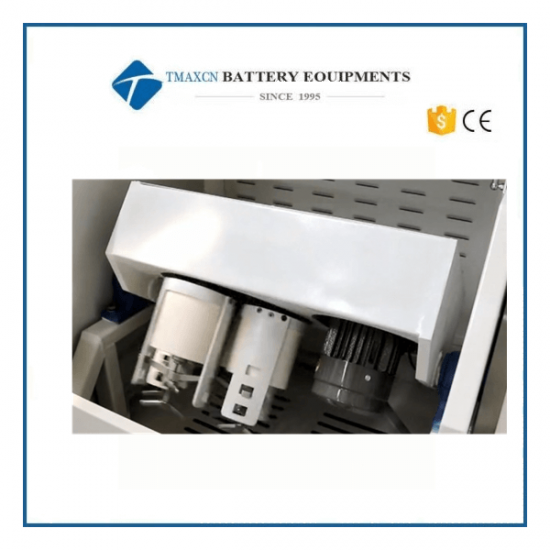

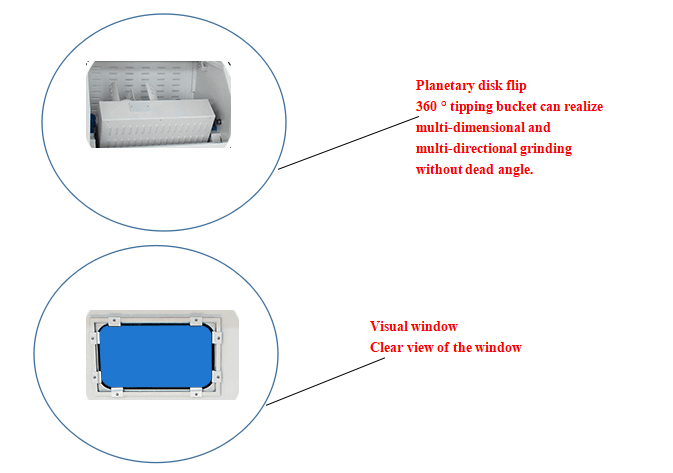

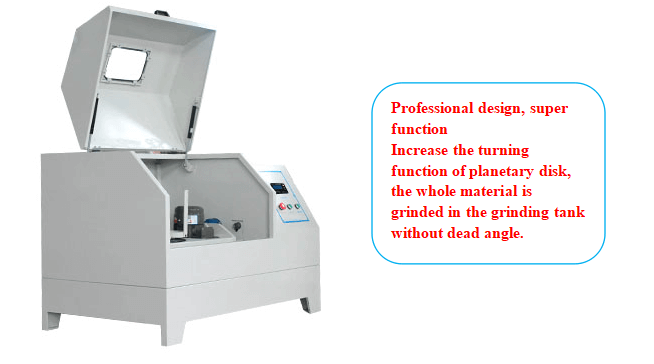

1. The machine makes 360 degree planetary movement without any dead corner, so the ground powder is much smaller and more even.

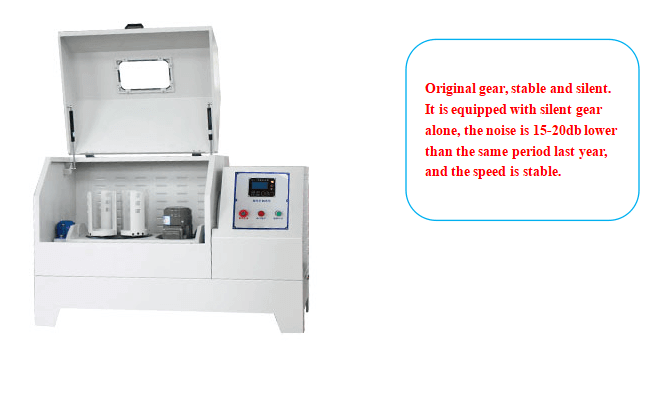

2. Gear transmission ensures to keep consistency and repeatability of experiment.
3. You may get four different powder samples at one time.

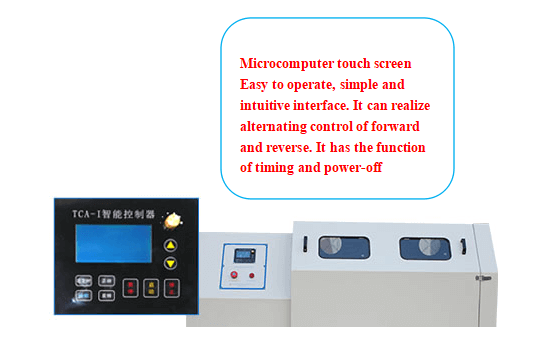

4. Variable frequency controlled and program controlled.
5. It solves the problems of materials sinking and sticking to the pot.
Advantages:

A wide range of powder can be ground by our planetary ball mill with different mill jars and balls, such as ore powder, fluorescent powder, glass powder, pigment powder and so on. Following are some powder samples for your reference.



Specifications

Drive Mode

Gear drive

Operate Mode

Two or four grinding jars working together

Maximum Loading Capacity

2/3 of the total volume of milling jars

Feeding Size

Soil material≤10mm,other materials≤3mm

Output Granularity

Smallest granule reaches 0.1μm

Rotational Speed Ratio

1:2

Max.Continuous Operating Time

48 Hours

Materials of Jar

Stainless steel.agate,nylon,corundum,zirconia,etc

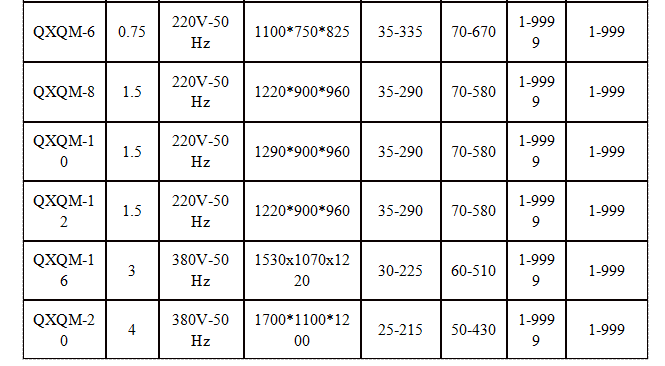

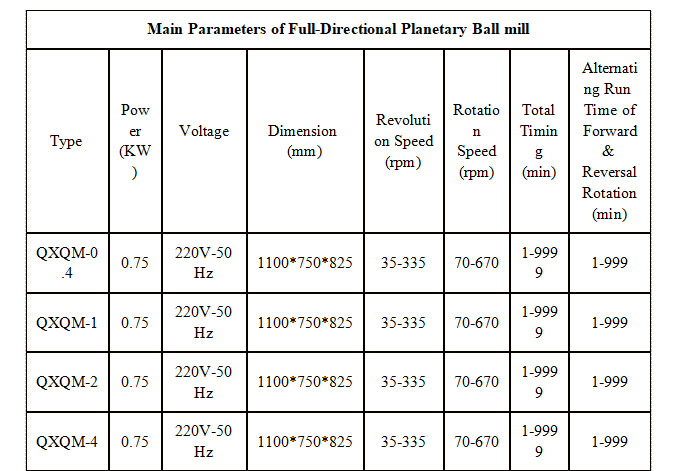

Main Parameters of Full-Directional Planetary Ball mill

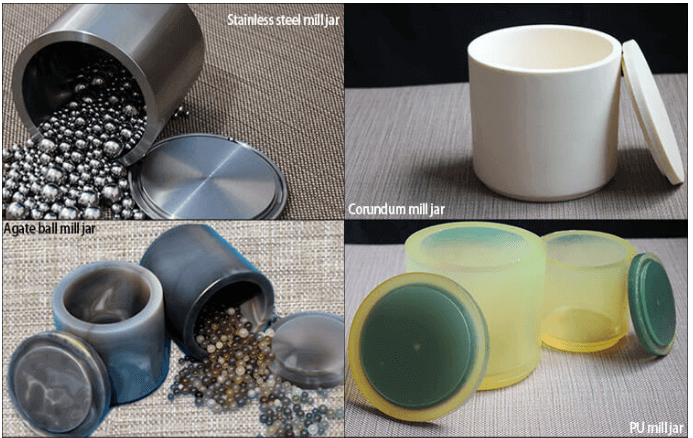

Accessories of Mill Jars & Balls fo powder grinding ball mill

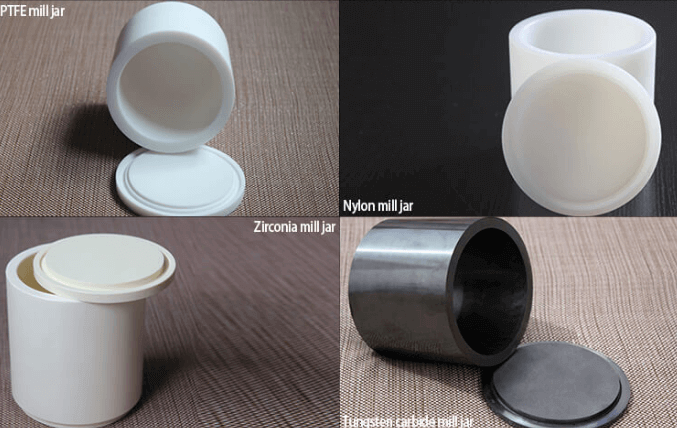

Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

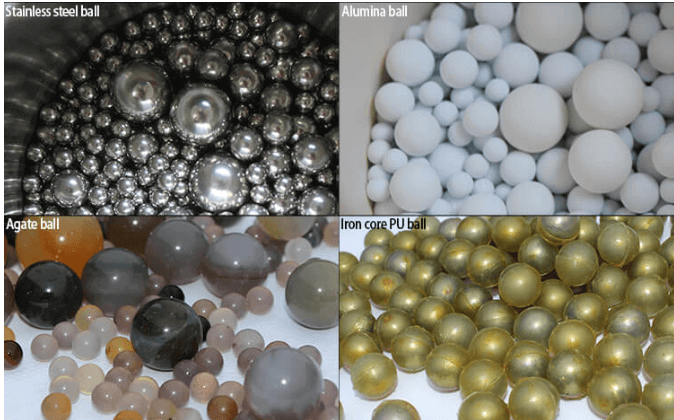

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
