Project

Parameters

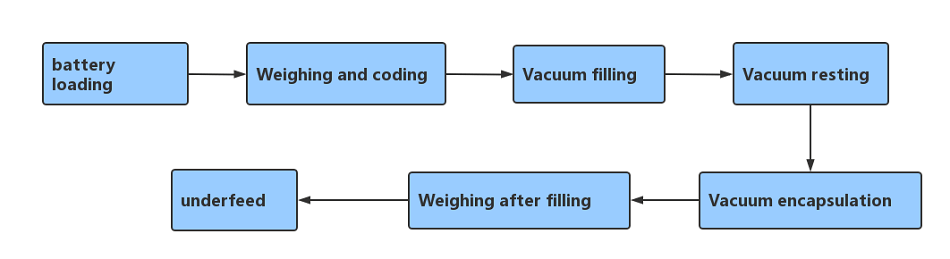

Liquid injection method

Vacuum filling or atmospheric pressure filling

Sealing mode

Thermal sealing

Head temperature control accuracy

±3°C

Head working temperature range

170~200°C

Vacuum holding pressure

5KPA value change within 60S

Liquid injection accuracy

Liquid injection ≥125g ±8%; liquid injection <125g ±1g

Production efficiency

Model 150 ≥12ppm; Model 300 ≥8ppm

Qualification rate

≥99%

Crop rate

≥98%

Dimension

W8000 × L3000 x H2350mm

Weight/load

>650Kg/M2

Power supply

AC380V three-phase;voltage fluctuation±10%;power:20KW;frequency:50Hz

Compressed air

0.5~0.7Mpa ( 5~7kgf/cm2 ), dosage 600L/min

Model

TMAX-ZTHZYS-150

TMAX-ZTHZYX-300

Cell length

45~150mm

120~300mm

Cell width

35~100mm

80~200mm

Cell thickness

3~10mm

4~12mm
