Heating Three Roll Mill

Heating Type Three Roll Mill for Milling and Mixing

  • Model Number:

    TMAX-SYJ
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Heating Type Three Roll Mill for Milling and Mixing

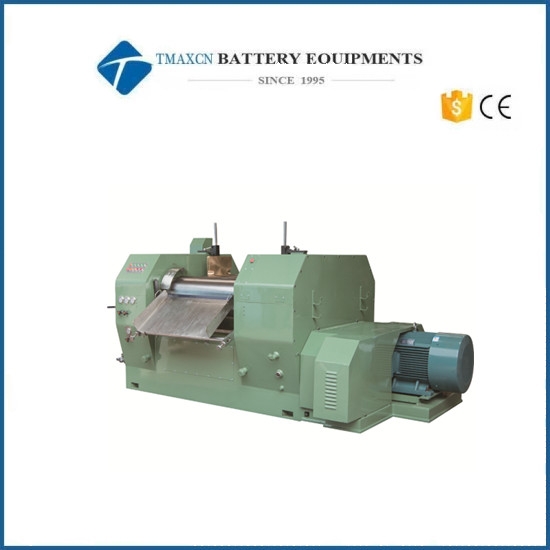

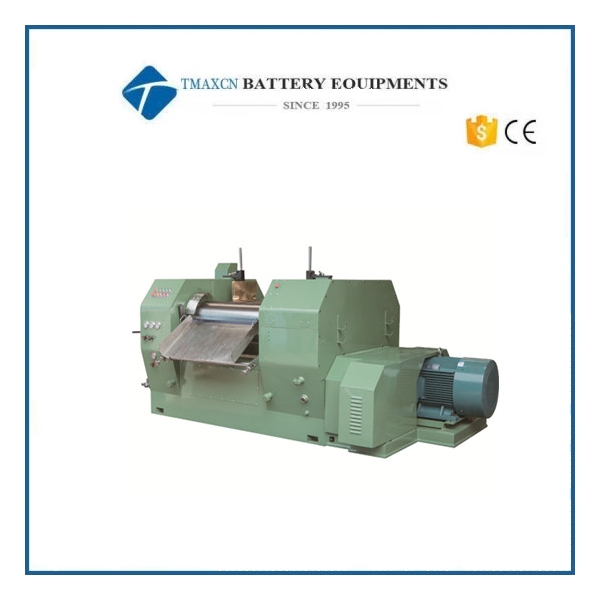

SYJ Heating Type Three Roll Mill

This machine is improved model based on SQ powerful mill. Hydraulic operation system is good for high automation and stable working. The mill is especially applicable for super high viscosity and hard material milling and mixing like EVA, ABS, PE, PP, PVC rubber masterbatch. The roll spindle heads are increased, gears are made by special material for strong power use.

SPECIFICATION:

Model SYJ-400
Roller Diameter 400mm
Roller length 900mm
Slow roller speed 13.9rpm
Middle roller speed 41.7rpm
Fast Roller speed 125rpm
Hydrualic prseeure 6.3Mpa
Hydraulic pump power 2.2kw 1500rpm
Main motor power 30-50kw 980rpm
Weight 7800kg
Size  4280*1950*1805 mm
