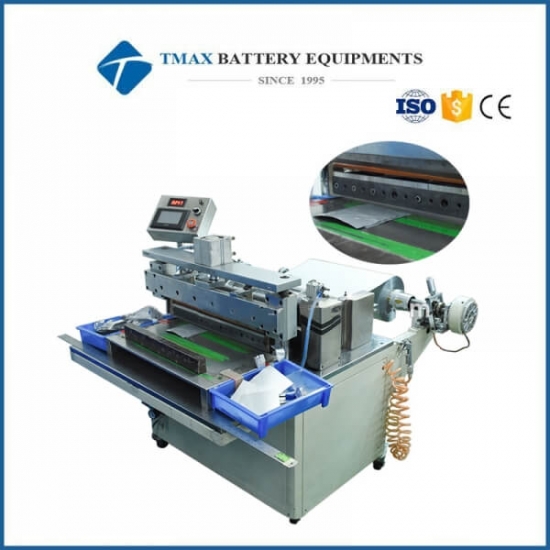

High Accuracy Cutting Machine with Slitting Function

  • Model Number:

    TMAX-BT-500L
  • Input Power:

    1.5KW
  • Dimension(L*W*H):

    1142*800*1100mm
  • Net Weight:

    About 300 kg
  • Compliance:

    CE Certified
  • Warranty:

    One Year limited warranty with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

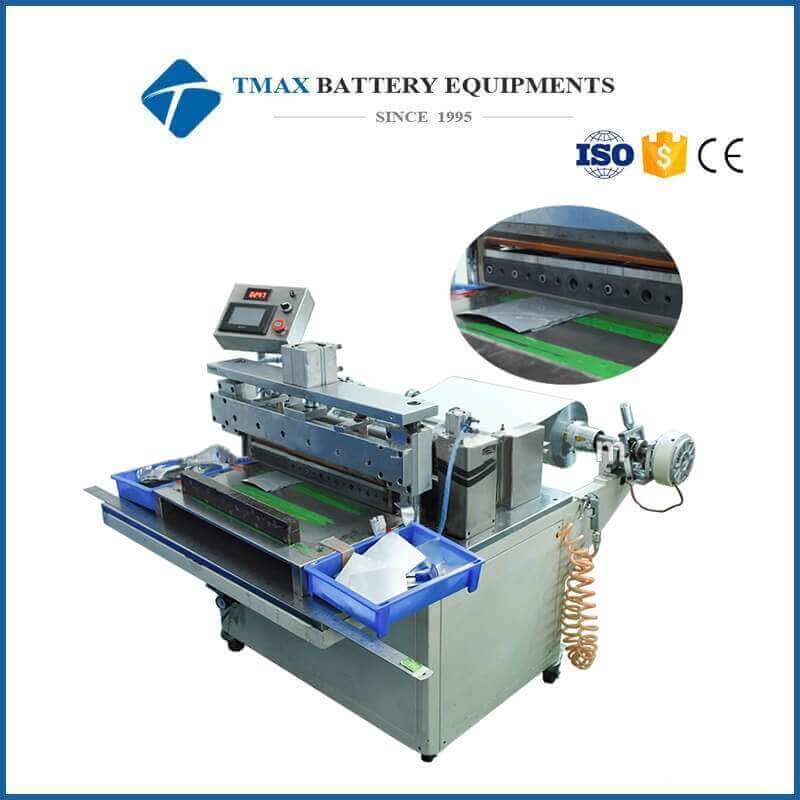

High Accuracy Cutting Machine with Slitting Function


DESCRIPTION:

This machine is suitable for the slitting and cutting of flexible packaging lithium and aluminum-plastic film. The whole volume (width 500mm) through the blade after the longitudinal cutting, the two rollers are driven by a stepping motor , and send the aluminum-plastic film to the knife-edge for cutting according to the set length, then get the packaging film which conforms to the packaging process.

The machine uses imported PLC and touch screen as master control element, control performance is stable, easy to operate and intuitive. Driven by the high-power stepper motor and equipped with speed control motor to keep the tape tension constant and ensure the accuracy of the cutting.


Model

TMAX-BT-500L

Source voltage

220V/50Hz

Power

1.5KW

Air compression

≥0.5MPa

Weight

About 300 kg. Equipment installation of the ground load-bearing requirements:> 0.5T / m2

Dimension(L*W*H)

1142*800*1100mm

Slitting width

The minimum 55mm-500mm

Cutting length

10mm-500mm

Cutting accuracy

±0.1mm

Maximum loading width

500mm

Maximum loading diameter

350mm

Equipment capacity

Depending on the cut length. About 3000-12000PSC/H
