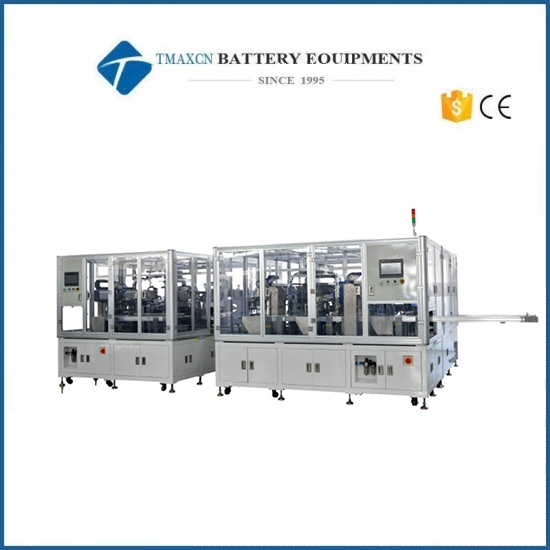

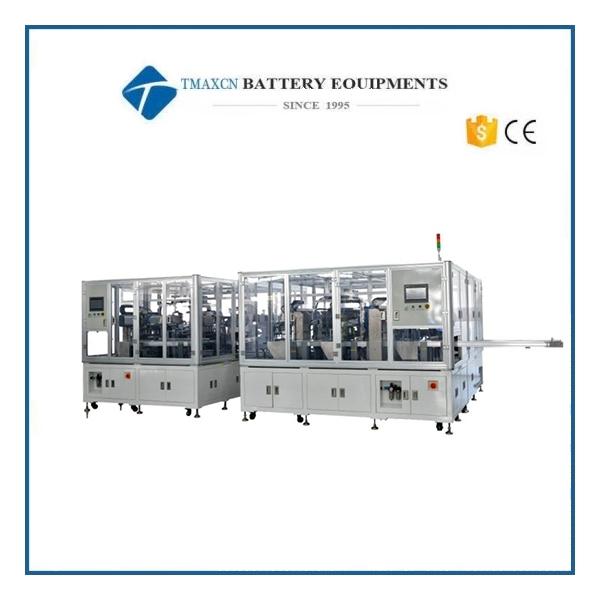

Auto Welding Line for Prismatic Cell

High Efficiency Fully Automated Prismatic Cell Welding Line

  • Model Number:

    TMAX-ZTH-07
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

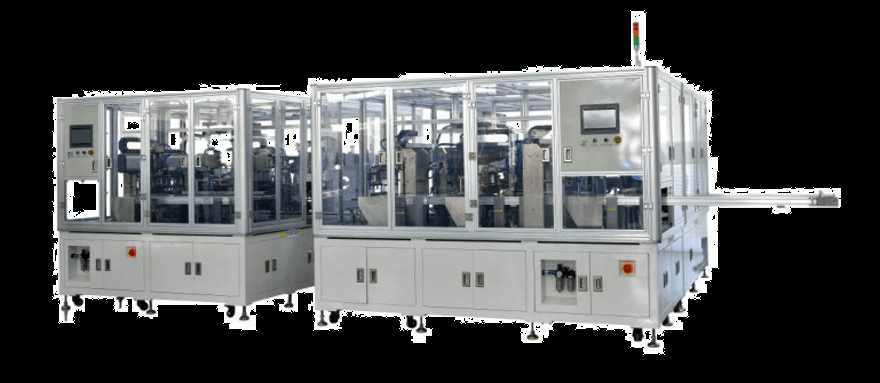

High Efficiency Fully Automated Prismatic Cell Welding Line



Ⅰ、Workflow



Ⅱ、Specification

Project

Parameters

Production efficiency

150 type 12ppm; 300 type 8ppm

Pole position accuracy

±0.3mm

Adhesive position accuracy

±0.5mm

Qualification rate

99%

Crop rate

>98%

Dimension

W6000x L4000x H2350mm

Weight/load

>750Kg/M2

Power supply

AC380V three-phase;voltage fluctuation±10%;power:30KW;frequency:50Hz

Compressed air

0.5~0.7Mpa ( 5~7kgf/cm2), dosage 200L/min

Model

TMAX-ZTHHJX-150

TMAX-ZTHHJX-300

Cell length

45~150mm

120~300mm

Cell width

35~100mm

80~200mm

Cell thickness

3~10mm

4~12mm



Ⅲ、Production Assembly Plant

 Detailed Images
