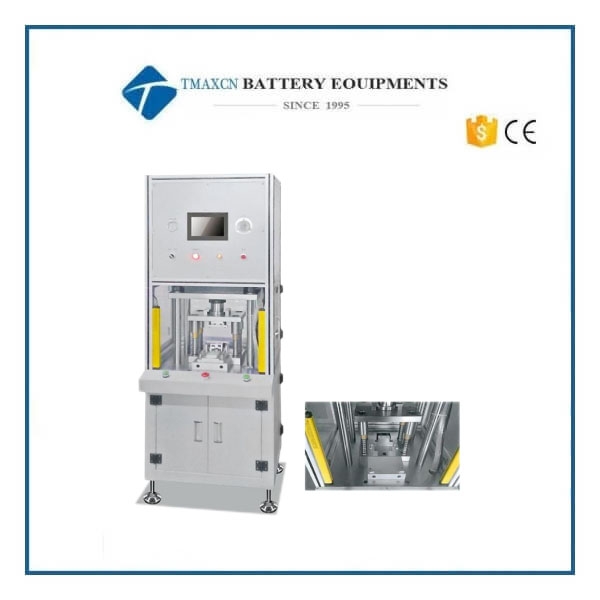

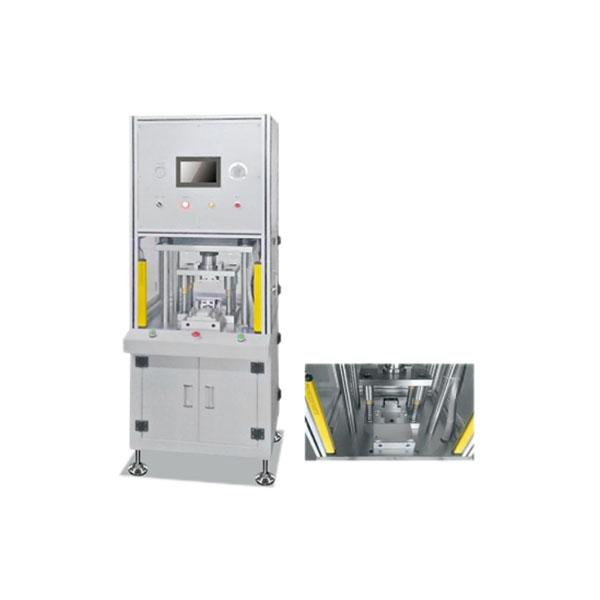

High-Precision Tab Punching and Trimming Machine

Application

The Tab Punching & Trimming Machine is designed for punching holes and trimming tabs on electrode tabs of prismatic cells and supercapacitors.

Key Features

· Uses precision guide pillars and bushings to ensure zero-gap alignment between upper and lower blades, enhancing longevity.

· Equipped with high-speed-steel punch and shear blades, ensuring sharp, clean cuts.

· Includes a positioning tray for accurate cell placement.

· PLC-controlled for reliable, stable operation with easy usability.

· Color touchscreen LCD for intuitive operation and parameter monitoring.

· Solid steel-welded frame with smooth finish and powder-coated for an elegant look.

· Includes safety light curtain and protective doors to ensure operational safety.

Technical Specifications
