Alumina Grinding Jar

High Temperature Resistant Alumina Grinding Jar for Fine Grinding

  • Model Number:

    TMAX-CRjar

  • Dimension(L*W*H):

    106*106*140 (mm)

  • Net Weight:

    35KG

  • Compliance:

    CE Certified

  • Warranty:

    One years limited warranty with lifetime technical

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

High Temperature Resistant Alumina Grinding Jar for Fine Grinding


Product introduction

Corundum, its name originated from India and is a mineralological term. Corundum is second only to diamond in terms of hardness. Corundum is mainly used as a high-grade grinding material. Corundum jars combined with zirconium oxide balls form a classic combination for wear resistance. Additionally, we would like to kindly inform our valued customers that although corundum jars have strong hardness, they are also fragile items. Please prevent them from falling to the ground and from being subjected to high-intensity impacts during use to avoid cracking. We can customize vacuum jars of various materials and models according to customer requirements.

Product function

1. Name: Corundum roll mill jar
2. Chemical Composition Al2O3 ≥ 99
  R2O ≤ 0.2
  Fe2O3 ≤ 0.1
  SiO2 ≤ 0.2
3. Volume density (g/cm2) ≥ 3.80
4. Apparent porosity (%) <1
5. Bending strength (Mpa)> 350
6. Compressive strength (Mpa)> 12000
7. Dielectric constant Σ (1MHz) 2
8. The highest operation temperature (°C) 1800
9. Best roast container for making powder TV, rare earth materials, precious metals, and roasting high, medium and low ceramic capacitors, NTC, PTC piezoelectric ceramic and lithium cobalt oxide, lithium manganese oxide powder.

Product features

Resistant to high temperatures, corrosion, high strength, and so on.

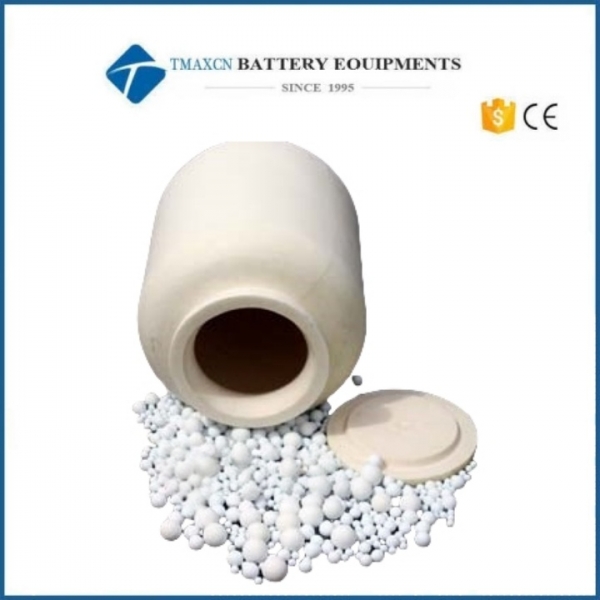

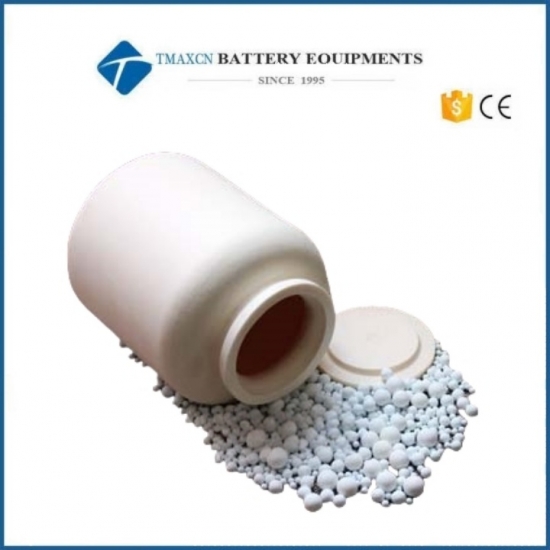

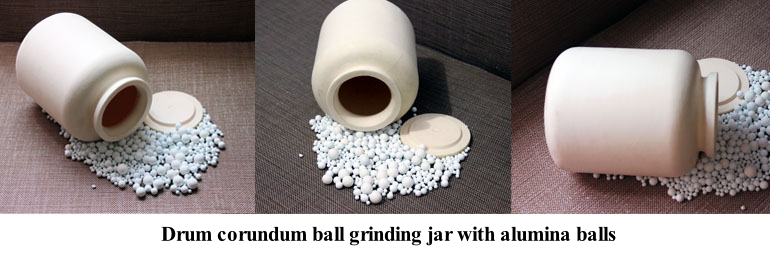

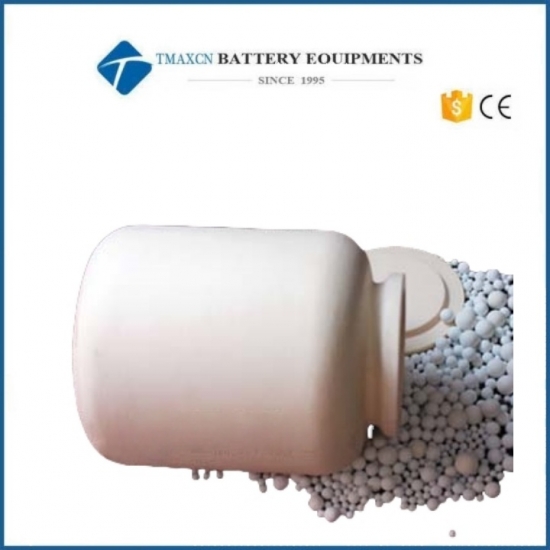

Product picture

Alumina Grinding Jar

Product Parameter

Parameters of Corundum Roll mill jar

Specification

Outer Diameter(mm)

Height(mm)

500ml

106

140

1000ml

140

160

1500ml

146

176

2000ml

146

201

3000ml

180

230

4000ml

185

260

10L

230

350









planetary ball mill
