High Test Force Accuracy Manual Rockwell Hardness Tester Optional HRD And HRF Rockwell Scales

High Test Force Accuracy Manual Rockwell Hardness Tester Optional HRD And HRF Rockwell Scales

Product features:

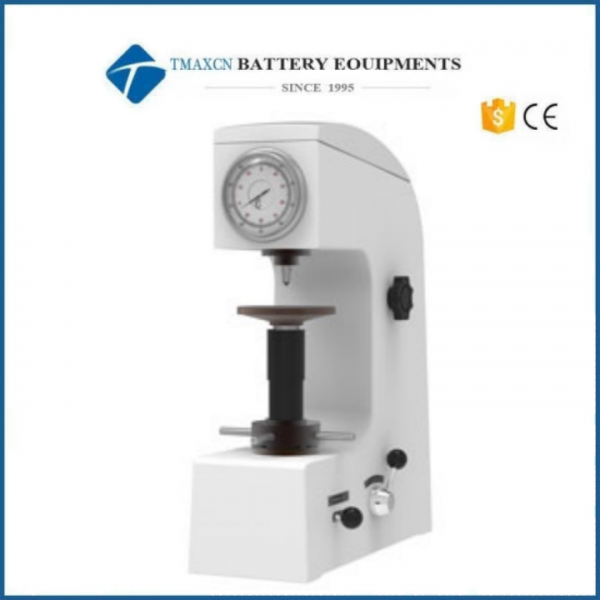

The HR-150A manual Rockwell hardness tester is a universal Rockwell hardness tester. Mechanical manual test, no power supply, wide range of application, easy to operate, with good economy and practicability.

1. Mechanical manual test, no power supply, wide range of application, easy operation, with good economy and practicality;

2. The fuselage is cast with high quality cast iron once, with the automobile paint treatment process, the appearance is rounded and beautiful;

3. The dial directly reads the hardness value, and other Rockwell scales can be selected, such as HRD, HRF and other hardness scales;

4. Frictionless spindle, high test force accuracy;

5. Precision hydraulic buffer cast in one body, no buffer leakage, stable loading and unloading, no impact, adjustable speed;

6. Accuracy in line with GB/T230.2, ISO6508-2 and ASTM E18 standards.

Scope of application:

1. Determine the Rockwell hardness of ferrous metals, non-ferrous metals and non-metallic materials;

2. Rockwell hardness measurement of heat treatment materials such as cemented carbide, carburized steel, hardened steel, surface hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable casting, mild steel, tempered steel, annealed steel, bearings and other materials.

Technical parameters:

Attachment configuration:

The above is the standard configuration, the actual product shall prevail in kind!
