Product Details

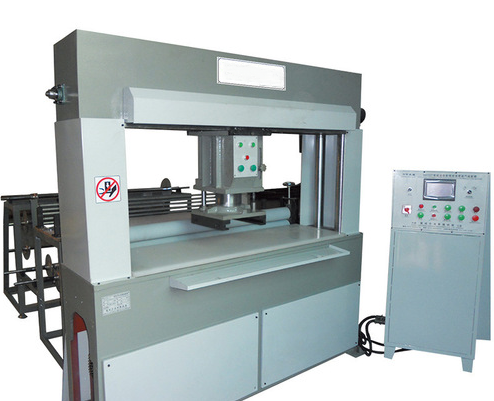

Hydraulic Automatic Travel Head Die Cutting Press Machine
Uses and features:
1, using computer control, continuous automatic blanking.
2, the use of double cylinder drive, to achieve high tonnage cutting force, save energy consumption
3, equipped with lubrication system to ensure the service life of the machine.
Technical parameters
Model number |
TMAX-XCLP-H10 |
Maximum cutting force |
600KN/1000KN |
Cutting speed |
0.10m/s |
Cutting adjustment range |
0-180mm |
Distance between upper and lower plate |
60-250mm |
Upper plate size |
1600*780mm |
Lower work surface size |
1600*800mm |
Motor power |
4KW/5.5KW |
External dimension |
2200*2260*1400mm |
Machine weight |
4000KG/6000KG |
