Hydraulic Three Roll Mill

Hydraulic Three Roll Mill for High Viscosity Material

  • Model Number:

    TMAX-SYP
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

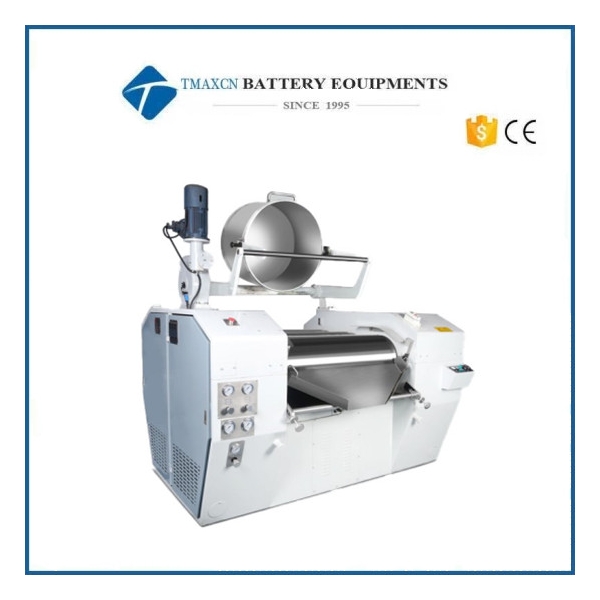

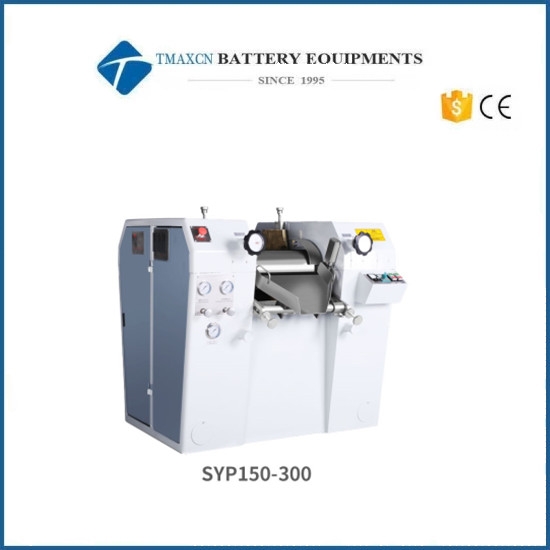

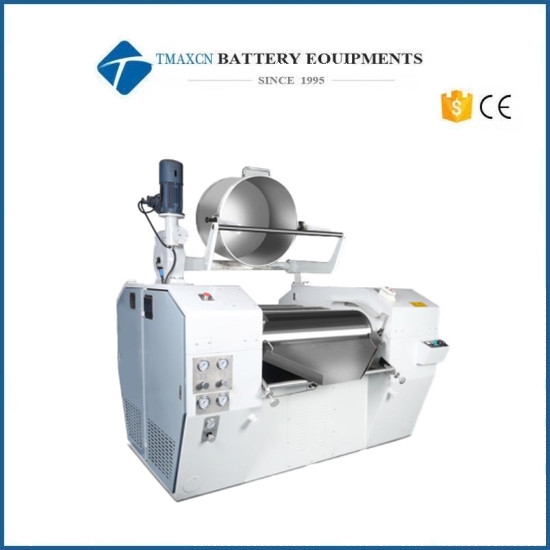

Hydraulic Three Roll Mill for High Viscosity Material



SYP – a three-roll mill designed for universal applications and for meeting the most stringent quality standards.


Convenient, easy operation, handy design and easy to clean. Versatile machine for low to high viscosity masses, e.g. all types of printing inks, artists’ colours, industrial and decorative paints, toners, coating masses, etc. Due to the wide range of options and models, SYP  also meets the demands of applications in the electronics, cosmetics and pharmaceutical industries.


Each of the three rolls is equipped with an individually adjustable high-efficiency cooling system. Automatic, precise control ensures constant roll temperatures and thereby uniform, reproducible operating conditions. The cooling water supply is automatically stopped when the machine is not running. This prevents undesirable cooling of the rolls and unnecessary water consumption. The hydro-dynamic roll pressing system guarantees high throughput and permanently stable, reproducible pressures in the roll gap.


Three roll operating positions can be selected:

• Pressing: Working position for fine grinding and dispersion

• Mixing: Intake gap is pressed for intermixing the material

• Disengagement: Rolls are disengaged for cleaning


An adjustment mechanism allows a defined roll gap to be set. This permits the processing of short, dilute and low- viscosity products.


Roller dia 150mm 200mm 260mm 400mm 400mm
Roller length 300mm 600mm 650mm 800mm 1000mm

Distance height

750mm 650mm 680mm 700mm 700mm
Slow roll speed 44rpm 52rpm 49rpm 31rpm 31rpm

Middle roll speed

103rpm 144rpm 140rpm 122rpm 122rpm
Fast roll speed 0-240rpm 0-400rpm 0-400rpm 0-400rpm 0-400rpm

Main motor power

5.5kw 11-15kw 18.5-22kw 30kw 37kw

Hydraulic pressure

6.3Mpa 6.3Mpa 6.3Mpa 6.3Mpa 6.3Mpa
Pressure power 1.1kw 1.5kw 1.5kw 1.5kw 1.5kw
Weight 950kg 1500kg 2400kg 5000kg 5500kg
