In Stock Nickel Foam Sheet Ni Metal Foam for For Filtering
Model Number:
TMAX-Nickel-Foam2Compliance:
CE CertifiedPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
2 days
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : Wechat 18659217588
Introduction
Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness.
Usefulness: (Various shapes can be produced)
1. Used as the base plate/substrate of positive electrode in Ni-MH / Ni-Cd battery, Supercapacitor.
2. Filtration materials of air / oil / smoke etc.
3. Porous electrode in Galvano-Chemistry Engineering.
4. Elimination of heat.
5. Amortization materials.
6. Noise-Absorbing and Vibration-Absorbing materials.
7. Electromagnetic shielding materials.
8. Catalyst carrier.
9. Precious metal recovery.
Specifications
Type
Open cell
Purity
> 99%
Form
Sheet or Roll, depending on size & thickness

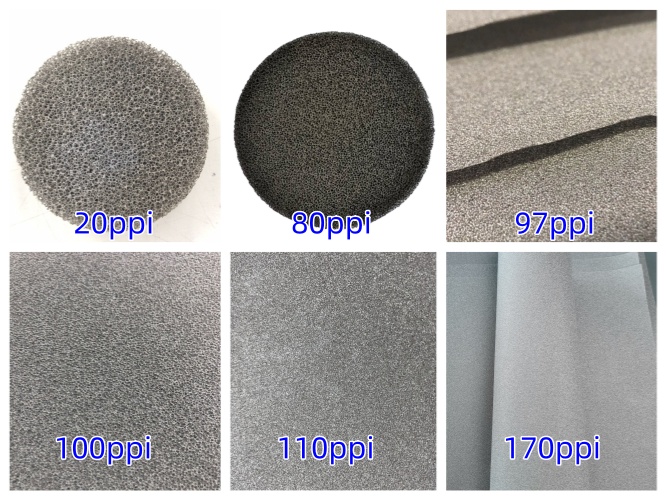

Cell Size (PPI)
10-150PPI, as per request
Thickness
Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request
Size & Shape
Standard: 500*500mm/ 200*300mm; can be made in different shape as per request
Porosity
95%-98%
Open Cell Rate
≥98 %
Volume Density
>0.1g/cm3, as per request
Surface Density
200-2500 g/m ^2, as per request
Thermal Conductivity (Theoretical)
>3W/M.K
Mechanical Strength (Theoretical)
≥2~7MPa
Tensile Strength (Theoretical)
8~50MPa
Temperature Resistance (Theoretical)
≥500℃
Type |
Open cell |
Purity |
> 99% |
Form |
Sheet or Roll, depending on size & thickness |
Cell Size (PPI) |
10-150PPI, as per request |
Thickness |
Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request |
Size & Shape |
Standard: 500*500mm/ 200*300mm; can be made in different shape as per request |
Porosity |
95%-98% |
Open Cell Rate |
≥98 % |
Volume Density |
>0.1g/cm3, as per request |
Surface Density |
200-2500 g/m ^2, as per request |
Thermal Conductivity (Theoretical) |
>3W/M.K |
Mechanical Strength (Theoretical) |
≥2~7MPa |
Tensile Strength (Theoretical) |
8~50MPa |
Temperature Resistance (Theoretical) |
≥500℃ |
0.1mm*200mm*300mm |
0.2mm*200mm*300mm |
0.3mm*200mm*300mm |
0.5mm to 1.7mm*200mm*300mm |
2mm*200mm*300mm |
3 to 4mm*200mm*300mm |
5mm*200mm*300mm |
6mm*200mm*300mm |
8mm*200mm*300mm |
10mm*200mm*300mm |
10 to 20mm*200mm*300mm |
The size can be customized |
