Electrode Die Cutter

Lab Electrode Die Cutter for Pouch Cell Electrodes Cutting

  • Model Number:

    TMAX-180S
  • Dimension(L*W*H):

    Max.300mm(L) x 250mm(W)
  • Net Weight:

    40KG
  • Compliance:

    CE Certified
  • Warranty:

    Two year limited warranty and lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

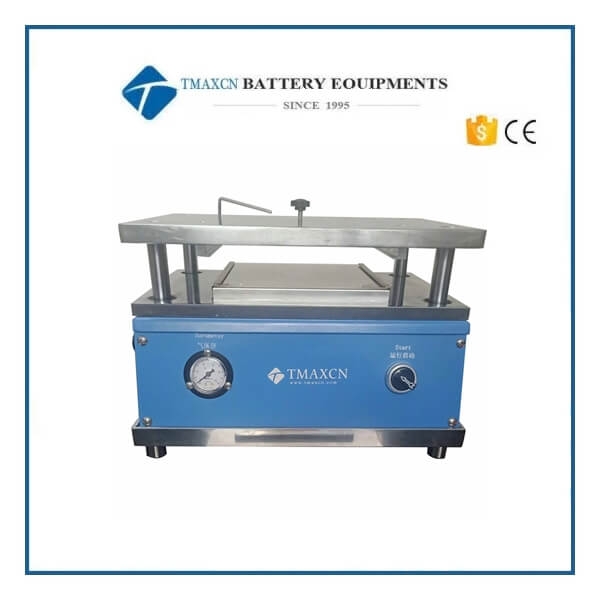

Lab Electrode Die Cutter for Pouch Cell Electrodes Cutting

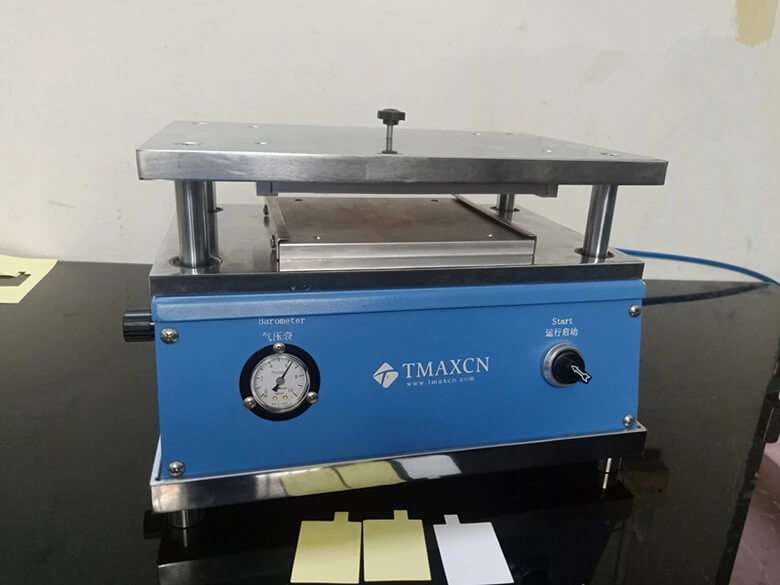

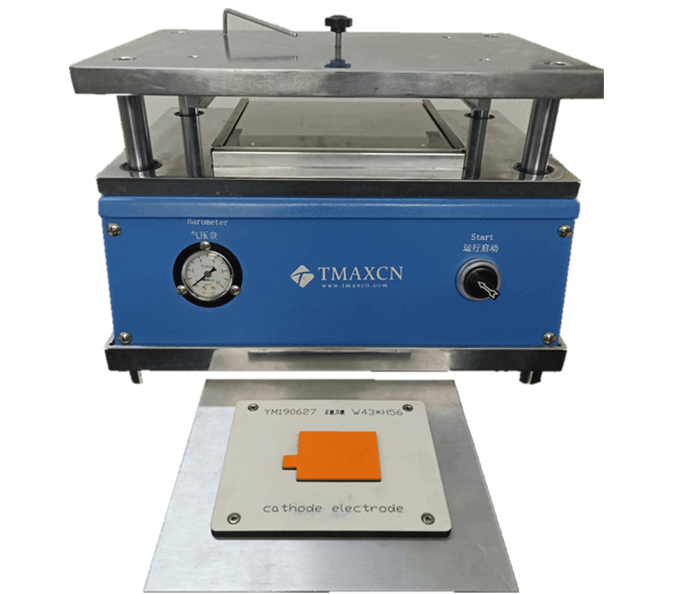

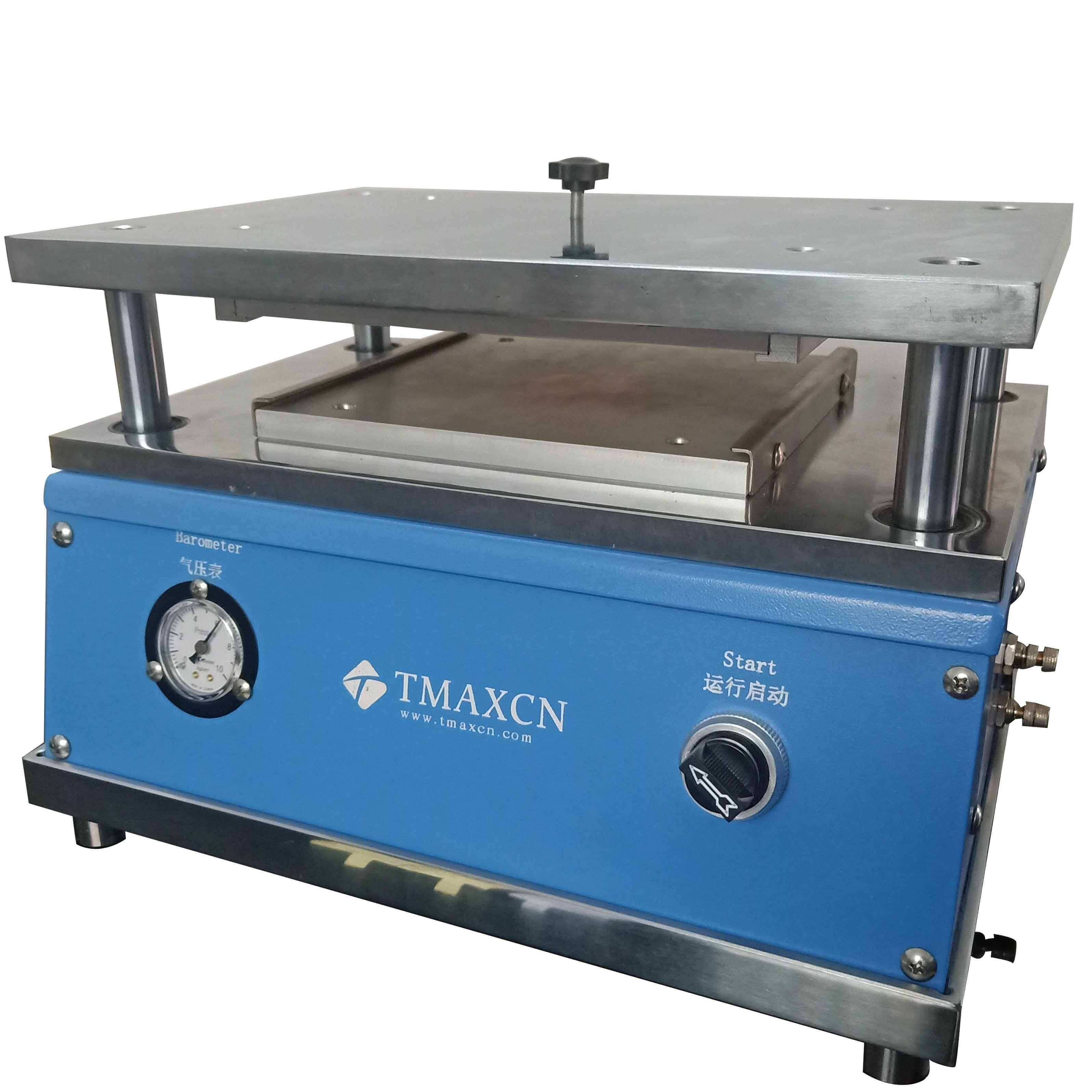

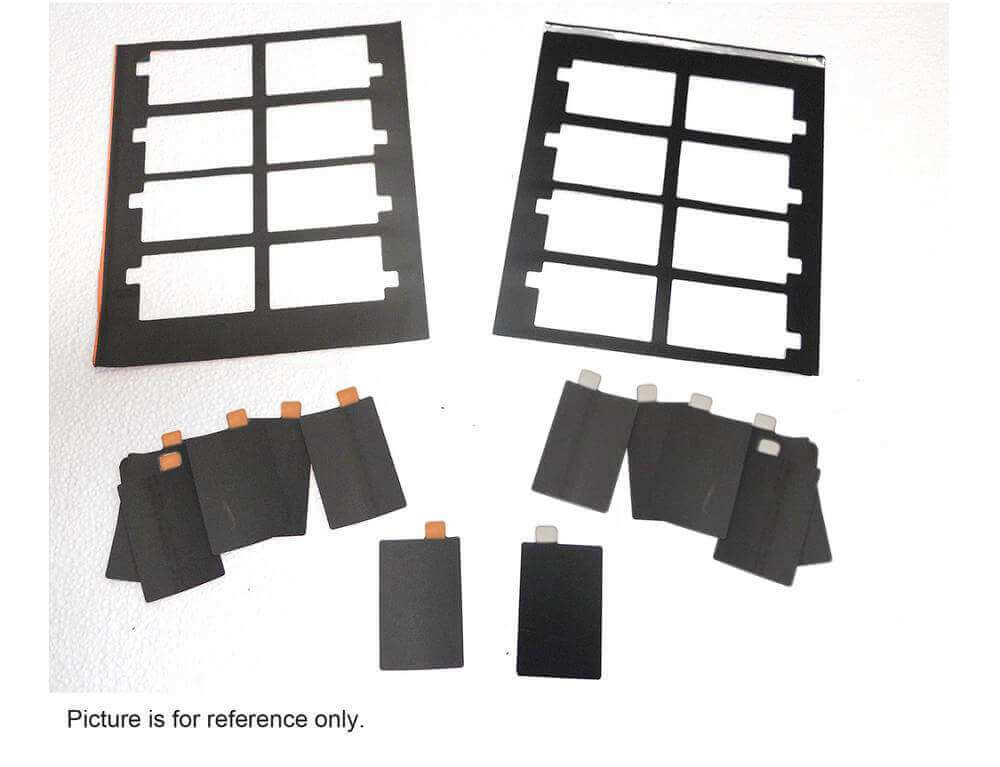

TMAX-180S is a gas driven die cutter for producing pouch battery cathode/anode electrodes ( no electricity required ) Its compact design enables the operation inside a glove box with Ar atmosphere where moisture/oxygen-sensitive electrodes will be cut


SPECIFICATIONS:

Die Set Dimensions

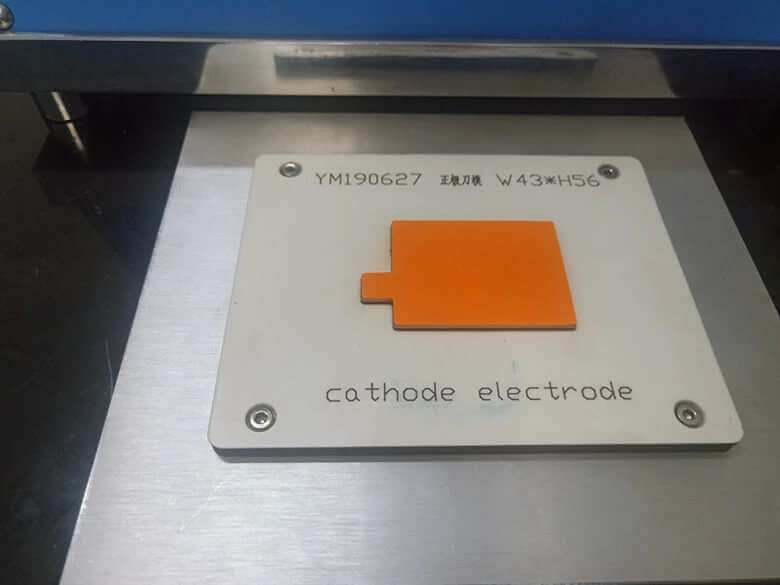

The die size can be customized according to customer's actual needs

Cutting Accuracy

±0.1mm

Cutting Pressure Force

Max. 1T (recommended pressure force for cutting battery electrodes is 0.5T)

Gas Pressure

· 0.5~1.0Mpa (0.7Mpa is recommended)

o For the use of inside the glove box, please use compressed inert gas such as Ar.

o For the use of outside the glove box, you may use the air compressor, 60 psi recommended.

· Compressor is not included, please contact the sales manager for further quote

Feeding

Manually

Stroke Length

12mm

Cutting Die Life Span

~30000 strokes

Compliance

· CE Certified

· No UL required because no electricity

Warranty

One Year limited warranty with lifetime support

Product Dimensions

 370mm(L) x 250mm(W) x 245mm(H)

Optional

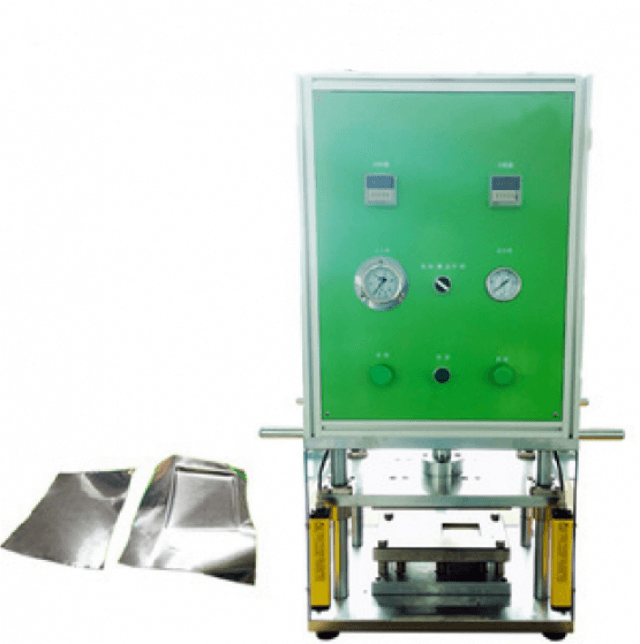

· You may  order pouch cell case forming machine  by click picture below right

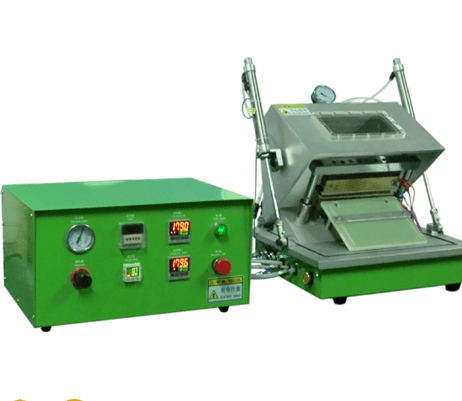

· We can also provide sealing machines for making pouch cells.


Net Weight

32kg

 Pouch Cell Machine

 pouch cell die cutter

pouch cell die cutter

pouch cell die cutter

pouch cell die cutter



electrode die cutter

 Pouch Cell Assembly
