Electrode Intergrated Tester

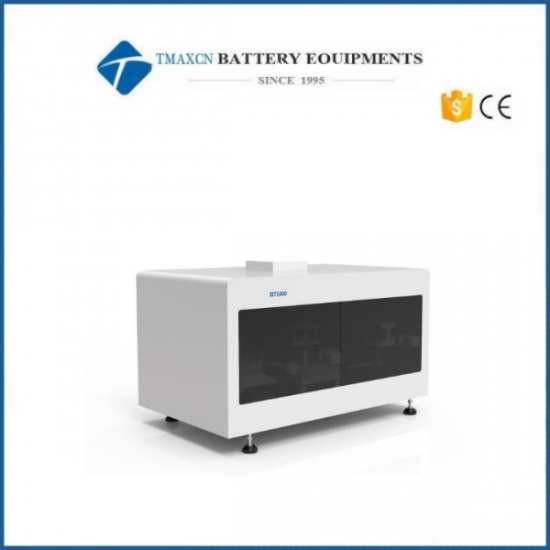

Lab Electrode Intergrated Tester For Lithium Battery Electrode Testing

  • Model Number:

    TMAX-EIT1000

  • Compliance:

    CE Certified

  • Warranty:

    1 Year limited warranty with lifetime support

  • MOQ:

    1

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

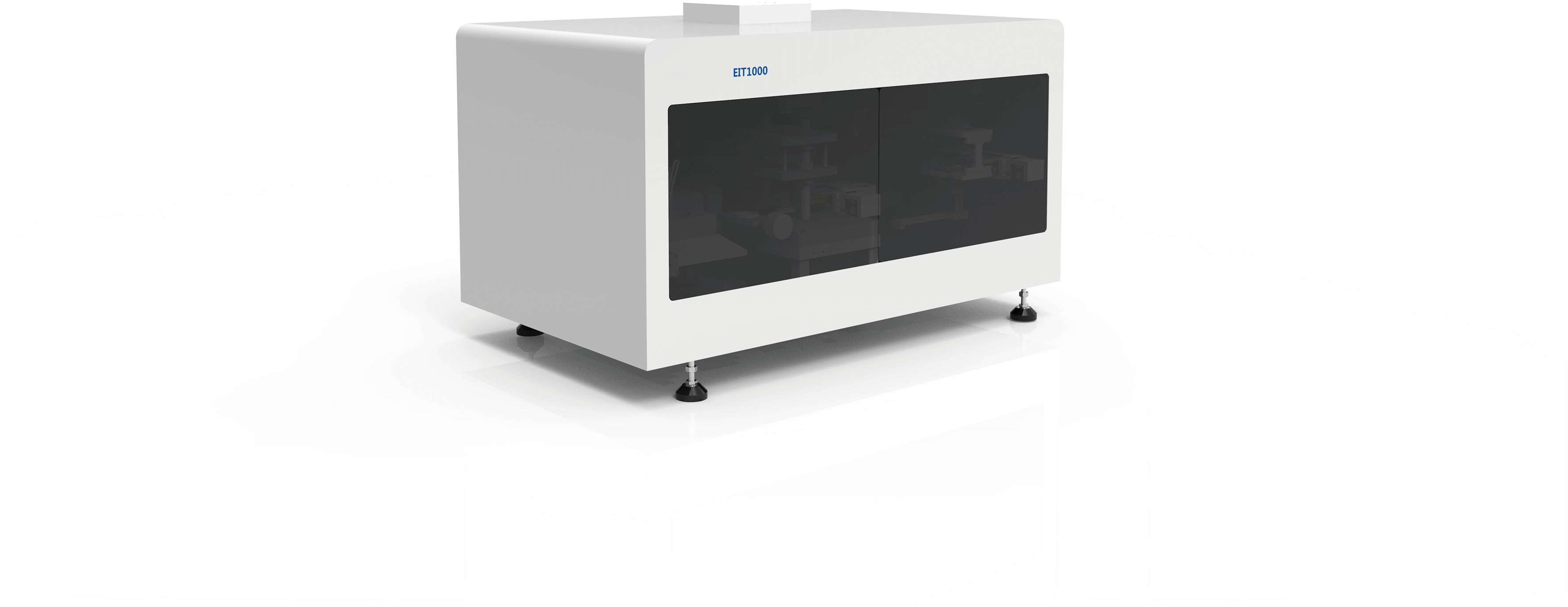

Lab Electrode Intergrated Tester For Lithium Battery Electrode Testing


Instruction

Background: Currently, each test item of electrode, i.e., gram weight, weight loss rate and electrode resistance et.al., are independent. Moreover, gram weight and weight loss rate need to be punched with a punching machine before the measurements.

Problem points: Slow testing efficiency, high labor consumption, low space utilization, data from

all tests need to be integrated and analyzed in the later stage, and individual items need to be individually checked and then uploaded to MES.


Test items

Objective

Test method

Gram weight

The weight after coating can reflect the coating uniformity, judge whether the edge thinning is within the specified range, and can effectively avoid lithium precipitation after the cell is formed

Tablet punching machine+electronic scale;

m=M1-M2 (m=coating weight of fixed area,

M1=coating+substrate weight, M2=substrate

weight)

Weight loss rate

The weight loss rate can reflect whether the coating oven parameters are within the range

Moisture meter; X=(M1-M2)/M1 * 100%(X=sol

id content, M1=weight of sample before drying,

M2=weight of sample after drying)

Electrode resistance

The electrode resistance can better evaluate the performance of the electronic conductive network or the uniformity of the electrode microstructure during the electrode manufacturing process, and help to research and improve the electrode formula and the control parameters of the mixing, coating and rolling process

electrode resistance meter BER series

Peeling force

The peeling strength between the coating and the collector will affect the cycle performance and internal resistance of the lithium-ion battery

Tensile testing machine



Creative Solutions

Measurement modularization: a certain detection module can be operated independently without mutual interference;

Consistency improvement: it can reduce the difference of personnel in sample preparation and improve the consistency level of each measurement item;

Efficiency improvement: shorten testing time and improve testing frequency;

Optimization of production line layout: adopt integrated scheme to save space;

Data traceability: integrated analysis of measurement data to facilitate subsequent traceability;

Routine check automation:three equipment can be checked at the same time and the routine check results can be uploaded;

Low cost: it can reduce equipment management, maintenance and after-sales costs.



Equipment Parameters

Process

Modular

Parameter

Range

Cold pressing

Electrode resistance

(standard configuration)

Resistance measurement resolution

0.1μΩ

Resistance measurement range

1μΩ~3100Ω



Electrode plate thickness

(optional)

Thickness measurement resolution/accuracy

0.1μm/±1μm

Thickness measurement range

0~5mm

Peeling force

(standard configuration)

Maximum load

50N

Force measuring accuracy

±0.2%F.S

Test speed range

0.01~500mm/min

Speed accuracy

±0.5%F.S

Coating

Gram weight

(standard configuration)

Weight accuracy

0.0001g

Weight loss rate

(also known as water content,

standard configuration)

Weight accuracy

0.001g





 Pouch Cell Equipment
