Lab Glove Box With Vacuum Spin Coater Instrument O₂/H₂O

Lab Glove Box With Vacuum Spin Coater Instrument O₂/H₂O <1ppm

General

· Purpose: Designed for preparing new materials (e.g., perovskite solar cells) in an O₂/H₂O-free environment (<1 ppm).

· Recessed Box: Bottom chamber for spin coater or small vertical equipment.

Electrical & Power

· Working Voltage: 110VAC or 220VAC, 50/60Hz, Single Phase

· Power Consumption: 2700W

Glove Box Chamber

· Window: Openable left-front panel (8 mm tempered glass).

· Dimensions: 2400mm (L) × 800mm (W) × 930mm (H).

· Material: Stainless Steel 304 casing.

· Safety Glass: 12mm double-layer laminated with corrosion protection.

· Lighting: Built-in fluorescent lamp.

· Shelves: Two slidable shelves (300mm L × 250mm W × 300mm H).

· Purification System: Maintains O₂/H₂O <1 ppm.

· Automation: Auto purging/regenerating functions for rapid O₂/H₂O removal.

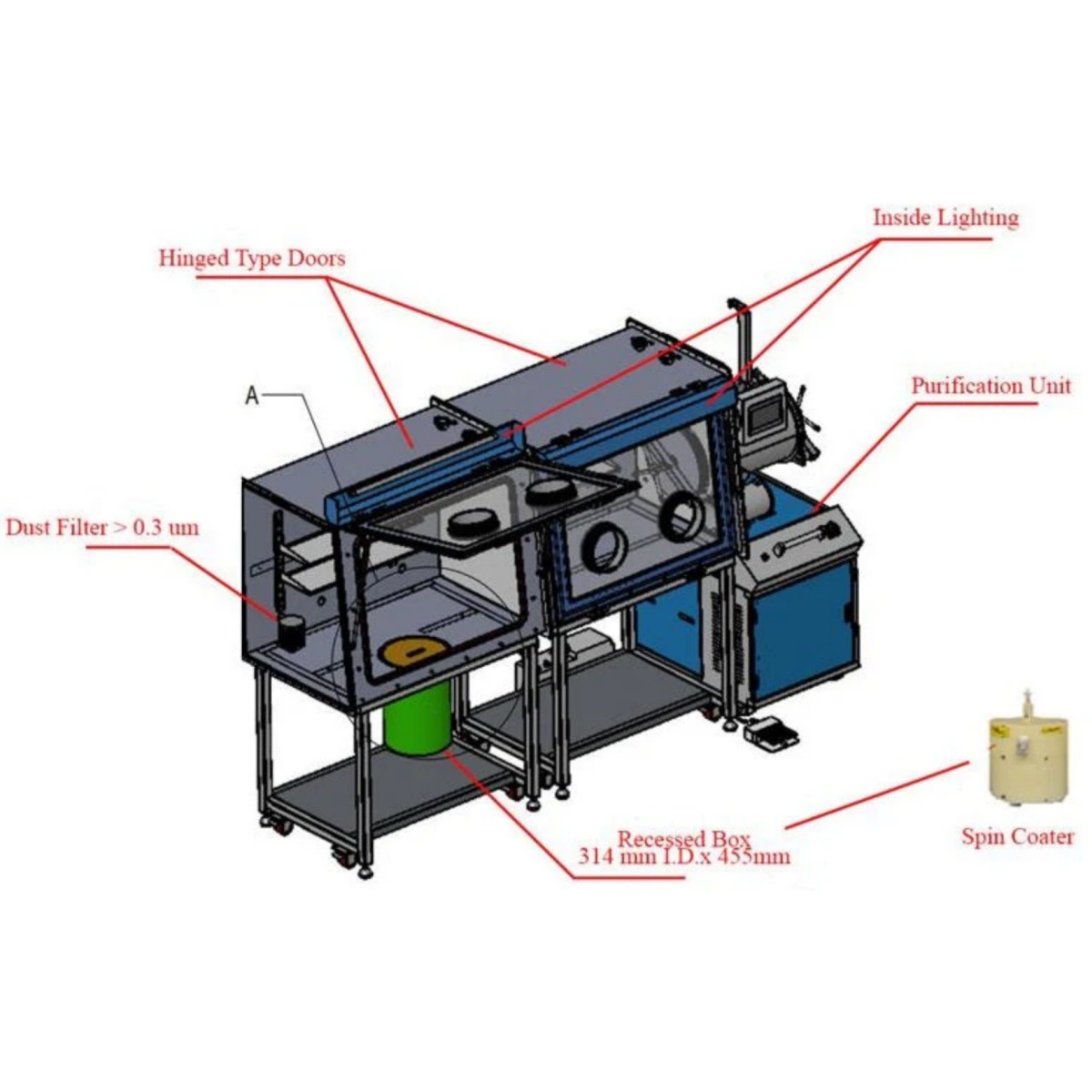

· Recessed Box:

o Round design (314mm ID × 455mm depth) on left side.

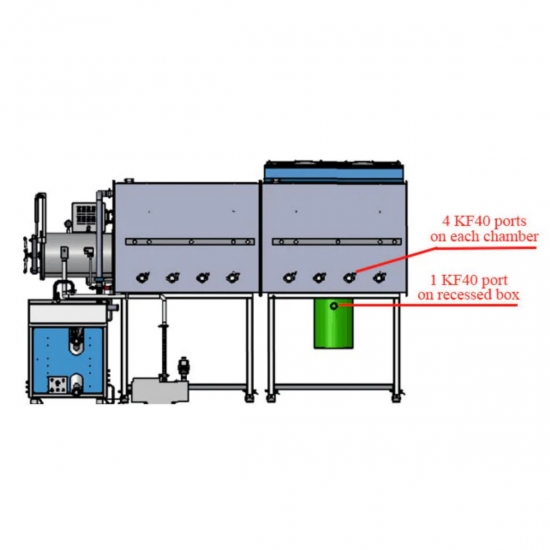

o Includes two feed-throughs for power/vacuum pump connections.

Spin Coater

· Material: Polypropylene (PP) case/spin disk (corrosion-resistant).

· Placement: Housed in recessed box with cover; control box/vacuum pump external.

· Filter: Included to prevent pump contamination.

· Chamber Diameter: 150mm.

· Vacuum Chuck: Φ100mm (holds substrates up to 6" diameter).

o Note: For samples <10mm, rubber cup (extra cost) or blue tape (irregular shapes) recommended.

· Spin Speed: 500–8000 RPM (programmable, 6-segment control).

Optional Upgrades

1. Heating Cover:

o Digital temperature control (up to 120°C).

o Enables in-situ sample drying during/after coating

2. Precision Pipette: 20–200μL for improved coating.

3. Plasma Cleaner: Enhances substrate surface treatment.

4. Heatable Antechamber:

o Max 200°C; DN385×588mm (L).

o Large left/right ante-chambers available on request.

Dimensions & Shipping

· Product Dimensions: 3115mm (L) × 830mm (W) × 1830mm (H).

· Shipping:

o Pallets: 2 (total weight: 1800 lb).

o Pallet 1: 86" × 41" × 84".

o Pallet 2: 86" × 41" × 83".

Warranty & Compliance

· Coverage: 1-year limited warranty with lifetime support.

o Exclusions: Rust/improper maintenance damage, consumable gloves.
