Lab High Temperature Brookfield Viscometer with PC Interface
Model Number:
TMAX-SSRDimension(L*W*H):
820mm×550×660mmCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588

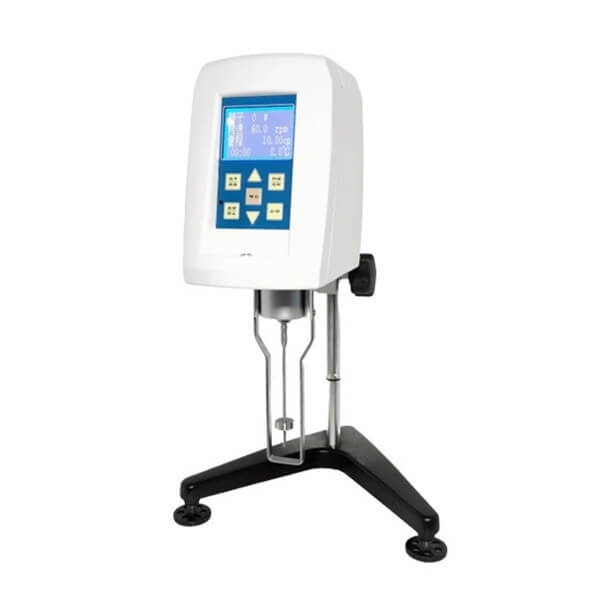

Lab High Temperature Brookfield Viscometer with PC Interface

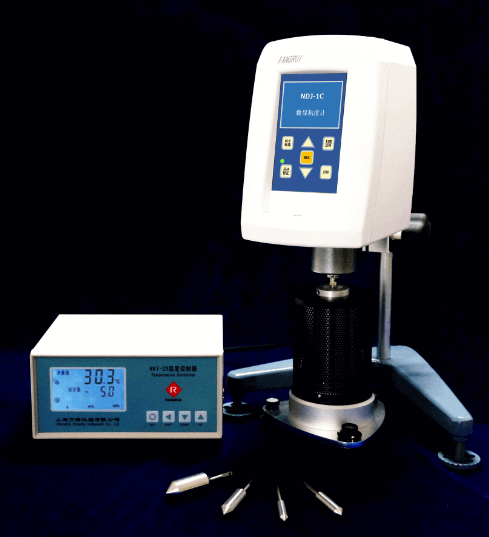

The high temperature viscometer adopts coaxial center structure, using small sample adapter, the sample quantity required for each measurement is very small, and the temperature control is quick and accurate. Full range, all the linearity through the PC interface, with different viscosity of the standard sample measurement correction, to ensure that the instrument has high accuracy and repeatability. The measuring range is wide, suitable for the testing of all kinds of samples that need to be heated and melted, such as asphalt, rosin, hot melt adhesive, etc.
Main features:
1. Horizontal bubble front, sit Adjust the level is OK, very convenient.
2. with timing measurement function. most of our measured samples are typical non-newtonian liquids, and their viscosity is not only related to temperature, shear rate, but also to the length of time measured. In order for the measured data to be comparable, the measured time must be consistent.
3. The accuracy of the measured data is two decimal places.
4. Using a small sample adapter, the sample size required for testing is very small, as long as 15-20 ml;
5. Temperature Control Range: Room temperature plus 10°C -250°C (optional 300°C heating furnace)
6. Viscometer with RS232 interface to connect micro printer and computer
model |
RV-SSR (NDJ-1C、NDJ-1D) |
HA-SSR |
HB-SSR (NDJ-1F) |
display |
liquid crystal |
||
speed(r/min) |
0.5/1/2/2.5/4/5/10/15/20/25/30/40/50/60/70/80/90/100 Total 18 |
||
rotor |
21、27、28、29# Ultra-low viscosity adapter (rotor No.0) with separate heating furnace (optional) |
||
measuring range (mPa.s) |
6.4 – 2M rotor No.0: 6.4-1K rotor No.21: 50-100K rotor No.27: 250-500K rotor No.28: 500-1M rotor No.29: 1K-2M |
12.8 – 4M rotor No.0: 12.8-1K rotor No21: 100-200K rotor No.27: 500-1M rotor No28: 1K-2M rotor No.29: 2K-4M |
51.2 – 16M rotor No.0: 51.2-2000 rotor No.21: 400-8M rotor No27: 2K-4M rotor No.28: 4K-8M rotor No.29: 8K-1.6M |
Test error |
±2% (Newtonian liquid) |
||
repetitive error |
±1% (Newtonian liquid) |
||
repetitive error |
Room temperature plus 10°C -250°C (300°C optional) |
||
Temperature Control Precision |
0.1℃ |
||
Print interface |
have |
||
computer interface |
have |
Note: K = 1000; M = 1000000; 1Pa.S= 1CP
Our company also has a number of non-polar speed-regulating touch-screen high-temperature viscometer model, the maximum range of 80 million, optional data software, showing shear rate and viscosity rheological curves.
Standard Configuration:
main engine |
1 |
rotor |
21,27,28,29 |
Container |
2 |
processing software |
1 |
temperature regulating device |
1 |
furnace |
1 |
instructions |
1 |
certificate |
1 |
warranty card |
1 |
|
