Square Die

Lab Ordinary Rectangular or Square Mold Made with Cr12MoV Alloy Tool Steel

  • Model Number:

    TMAX-PMF-E
  • Type:

    Laboratory Press
  • Net Weight:

    About 48kg
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • Place of Origin:

    Fujian, China (Mainland)
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Lab Ordinary Rectangular or Square Mold Made with Cr12MoV Alloy Tool Steel

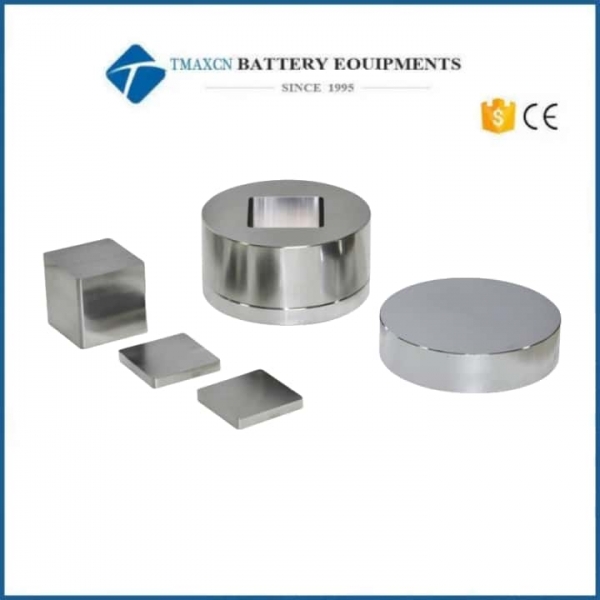

Ordinary Square Mold

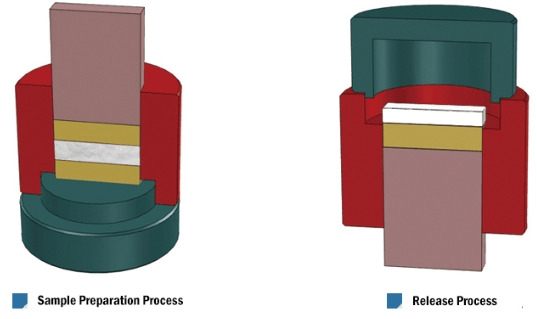

Schematic diagram of mold operation

Ordinary Square Mold

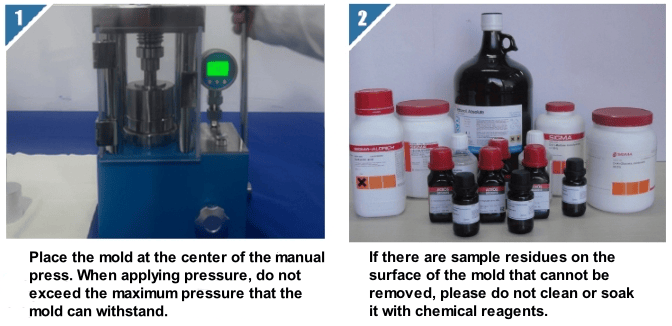

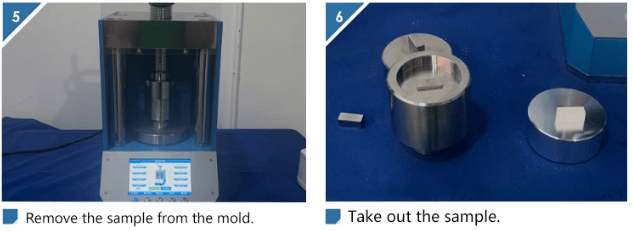

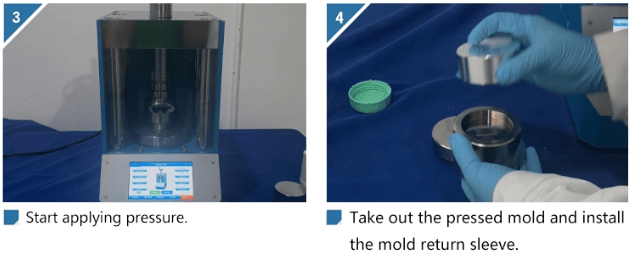

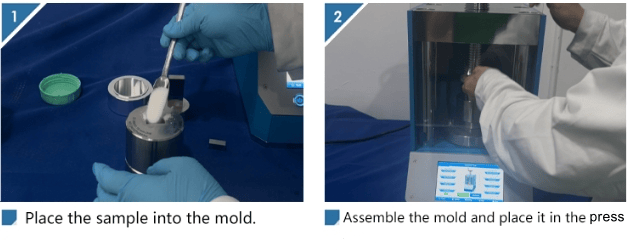

Operation steps

Rectangular molds are suitable for some slender samples that are easy to form. The size ranges from 3 to 100mm. Special mold sizes can be customized according to customer requirements.

Ordinary Square Mold Ordinary Square Mold Ordinary Square Mold



Mold usage and maintenance

Each time the mold is used, the surface of the mold should be wiped clean with lint-free paper first to prevent the anti-rust oil on the mold from affecting the test results of the sample. When applying pressure, it is necessary to pay attention not to exceed the maximum pressure that the mold can withstand. After using the mold, the samples on the mold should be cleaned in time to prevent corrosion of the mold. When the mold is not used for a long time, anti-rust oil should be applied to the mold and it should be stored in a dry environment.

Ordinary Square Mold

Ordinary Square Mold



Technical parameters

Instrument model

PMF-E

Pressed sample shape

Hot Press

Mold material

Alloy tool steel: Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

50x50, 60x60, 70x70mm(M)

Cavity depth

556065mm(N)

External dimensions

φ98x150mmφ118x180mφ138x180mm(LXH)

Mold weight

7.3Kg11.4Kg20Kg

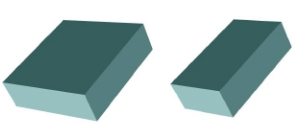

Schematic diagram of dimensions

Hot Press
