Battery Slurry Resistivity

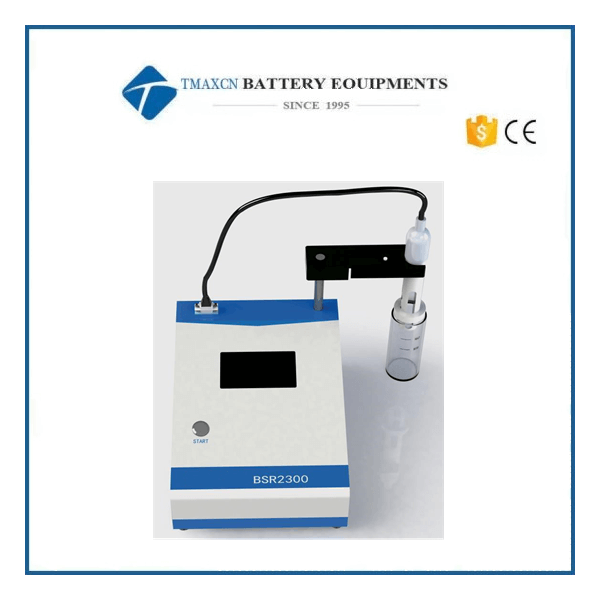

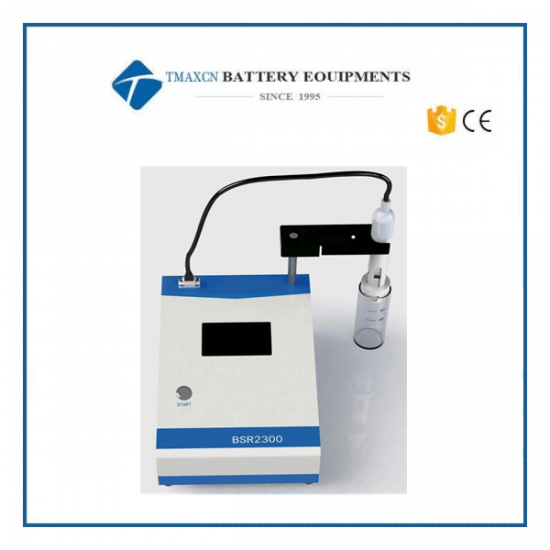

Lab Pouch Cell Battery Slurry Resistivity Meter

  • Model Number:

    TMAX-BSR2300
  • Compliance:

    CE Certified
  • Warranty:

    1 Year limited warranty with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

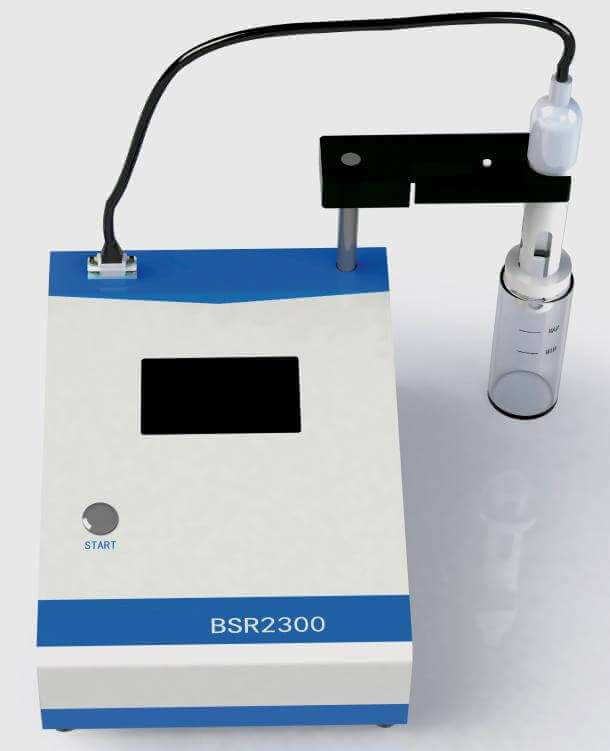

Lab Pouch Cell Battery Slurry Resistivity Meter

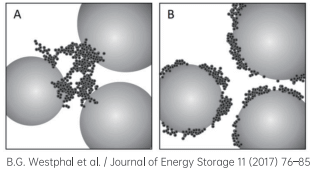

THE SIGNIFICANCE OF SLURRY RESISTIVITY

The slurry is an important intermediate product in the production of lithium-ion batteries. The uniformity and stability of the slurry greatly affect the consistency and electrochemical performance of the final battery cell.


The current method of monitoring slurry only has viscosity parameters, which cannot accurately evaluate the uniformity and stability of its electrical properties. However, the slurry conductivity parameters and slurry formulation, conductive agent type and content, binder type andcontent etc, which all have significant correlation to monitor the production of slurry, and the slurry may have gel sedimentation after dwelling for a period of time after mixing.


At this time, the conductivity value will also show varying degrees of change. Therefore, the conductivity of the slurry can be used as a method to characterize the uniformity and stability of the electrical properties of the slurry.


Monitoring the conductivity of the slurry, on the one hand, it can evaluate the influence of different active materials, conductive agents, binders, solid content, etc. on the electrochemical performance, for material evaluation and screening, on the other hand, it can also be used for process stability monitoring, which can quickly identify abnormalities in the mixing process, and avoid the waste of time and cost caused by defective products flowing into the subsequent process.

battery slurry resistivity



SLURRY RESISTIVITY TEST PRINCIPLE

Test steps: Putting a certain volume of slurry (~80mL) into the measuring glass, inserting a clean electrode pen, start the software, start to test the changes in the slurry resistivity at the three pairs of electrodes over time and save it in the file.

Test parameters: Resistivity, Temperature, Time

Calculation formula: Resistivity (Ω*cm):ρe=U/I*S/l


Character:

1. Separate the voltage and current lines, eliminate the influence of inductance on voltage measurement, and improve the accuracy of resistivity detection;

2. The disk electrode with a diameter of 10mm ensures a relatively large contact area with the sample and reduces the test error;

3. Real-time monitoring of changes in resistivity of the slurry at three positions in the vertical direction over time;

Resistivity measurement range

2.5Ω*cm-50mΩ*cm

Resistivity measurement accuracy

±0.5%

battery slurry resistivity

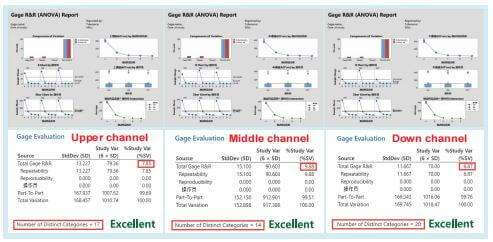

SLURRY RESISTIVITY ANALYZER MSA

Test program:

Three operator, Three times

Testing of each operater


Test method:

Deionized water was sonicated for 30 seconds, cleaned with deionized water,dried with

dust-free paper, 5 sets of data were tested, and the fifth set of data was taken for GRR analysis.

battery slurry resistivity

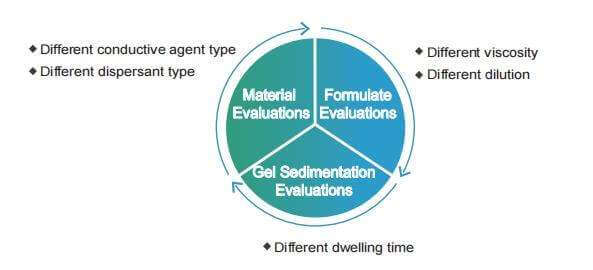

APPLICATIONS

 battery slurry resistivity

APPLICATION CASES

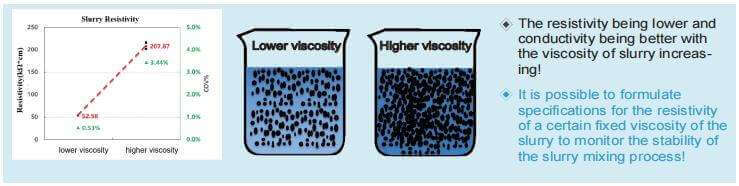

1.Evaluations of different viscosity in slurry resistivity

battery slurry resistivity

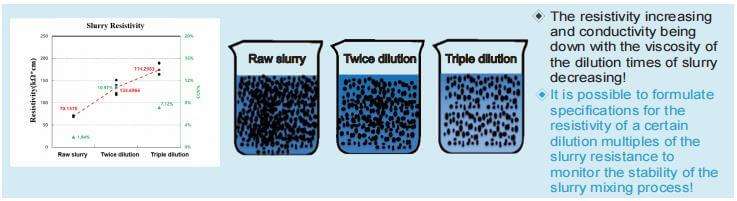

2. Evaluations of different dilution multiples in slurry resistivity

battery slurry resistivity

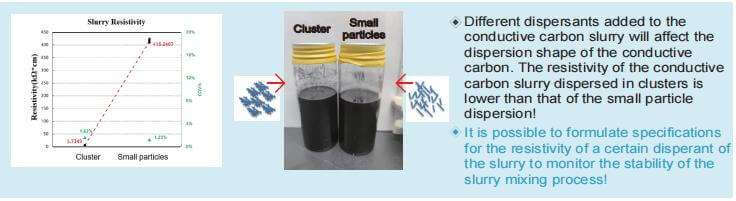

3. Evaluations of different dispersant in slurry resistivity battery slurry resistivity

4. Gel sedimentation evaluationsComparing different types of conductive agent

PARAMETERS

Resistivity measurement range

2.5Ω*cm-50mΩ*cm

Resistivity measurement resolution

0.01μS/cm

Resistivity measurement accuracy

±0.5%



INSTALLATION REQUIREMENT

Voltage

220-240V

Voltage variation tolerance

±10%

Power

80W

Environmental temperature

0-40

Environmental humidity

80%RH

Net wet

5kg

Dimension(W*D*H)

210*300*120 mm

battery slurry resistivity
