PVD Coater

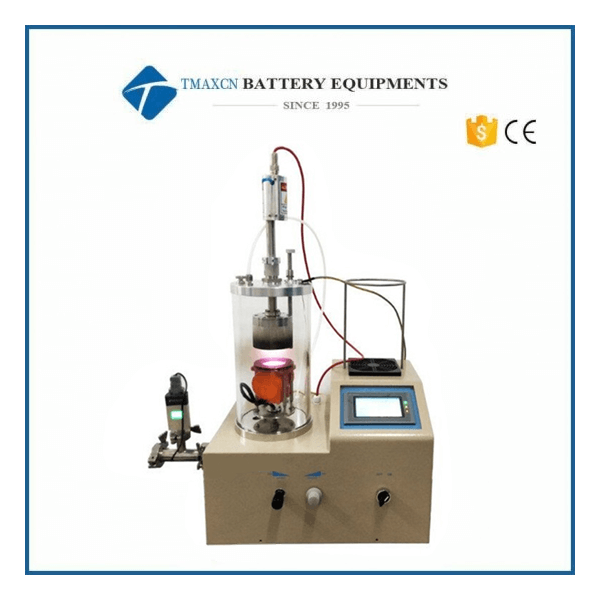

Lab Powder PVD Coater Machine with DC Magnetron Sputtering & Vibration Stage

  • Model Number:

    VTC-16--PW
  • Compliance:

    CE Certified
  • Warranty:

    One Year limited warranty with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • contact now
Product Details

Lab Powder PVD Coater Machine with DC Magnetron Sputtering & Vibration Stage

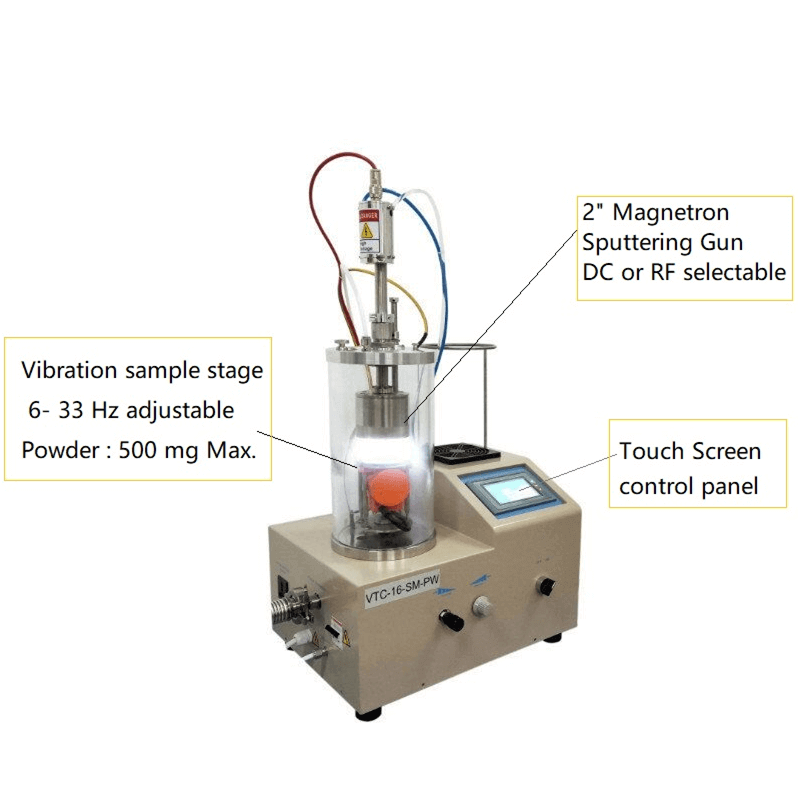

VTC-16--PW is a compact powder PVD coater, which consists of 2" water cold magnetron sputtering head and vibration stage. The particles will jump on the vibration stage during coating and form a core-shell structure. The DC magnetron sputter is suitable for coating for metallic materials. RF power source is optional for non-conductive material or carbon. The coater will be useful for preparing special powder for 3D printing and solid state electrolyte powders.

SPECIFICATIONS

Input Voltage

  • 220 VAC 50/60Hz
  • 110 V power is available by using a 1000 W transformer (15 A fuse). The transformer is sold separately

Output Power

  • 1600 VDC
  • 250 W
  • 150 mA max.
  • Built-in over current protection (>150 mA)


Sputtering Head


  • 2" flexible magnetron sputtering head with water cooling jacket is included
  • One manually operated shutter for target protection
  • Sputtering head holder is available for holding sputtering head while non-operation
  • The distance between the sputtering head and sample stage is adjustable from 60 - 100 mm
  • One Water Cold Recirculating Water Chiller 16 L/min Flow is included for cooling sputtering head



Vibration Stage

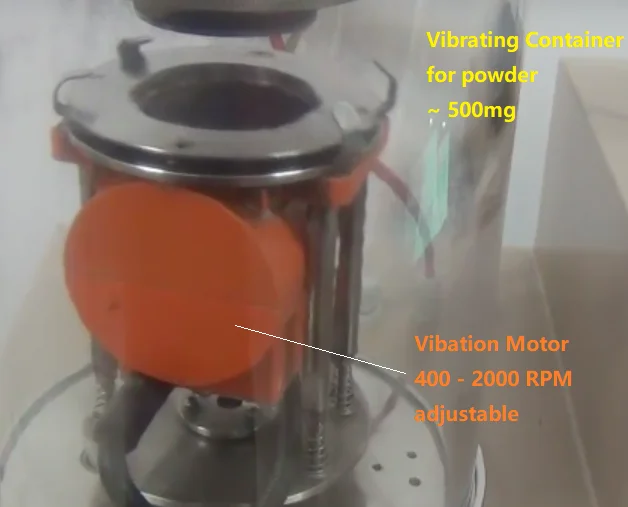

  • The vibration stage is built-in the bottom of the vacuum chamber
  • The vibration speed is adjustable from 400 - 2000 RPM (6 - 33 Hz)
  • One 2" container of powder is placed on the vibration stage. It will rotate during the vibration
  • Suggested powder quantity: < 500 mg max.
  • Suggested particle size: 1 ~ 1000 microns

Vacuum Chamber

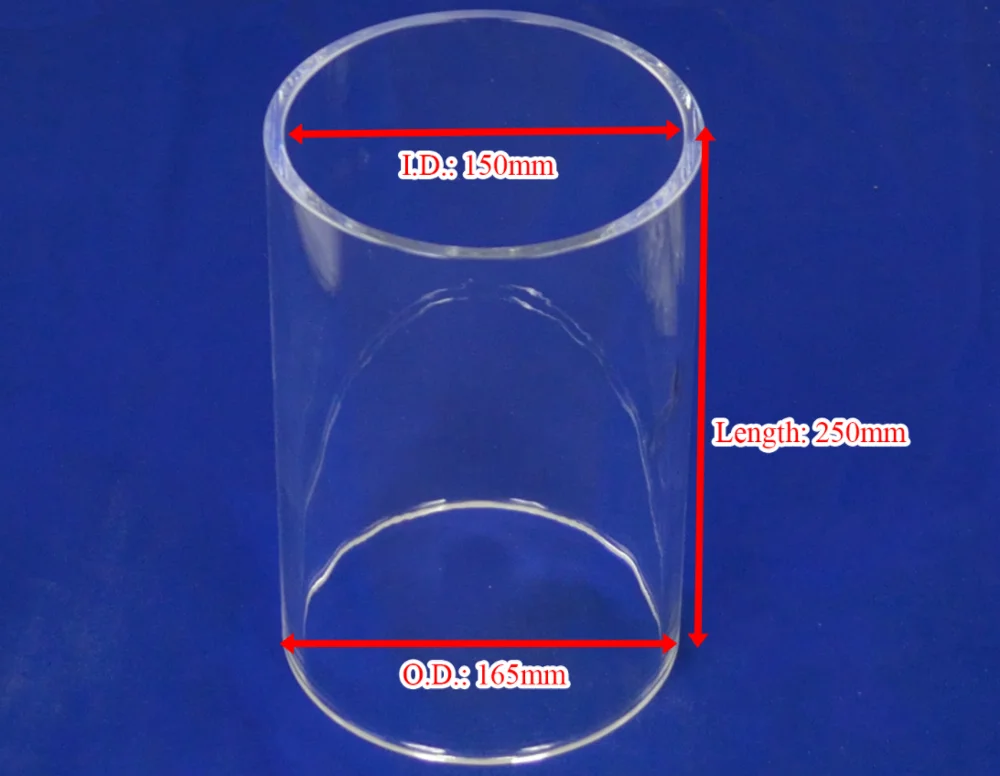

  • Quartz glass tube, 165 mm OD. X 150 mm ID x 250 mm Height

Control Panel

  • 6" color  touch-screen control panel with PLC integration for easy operation
  • One panel for all parameters monitor and control: vacuum, current

Ultimate Vacuum Pressure

  • Built-in KF25 vacuum port
  • The system requires an Ar gas tank with pressure regulator (not included)
  • < 1.0E-2 Torr by Vane vacuum pump (not included) for Au, Ag, Pt, Cu, Mo targets (not sensitive to air)
  • < 1.0E-5 Torr by Turbomolecular pump (not included) for Al, Mg, Li, Lr, Ti, Zn targets (sensitive to air)
  • The lowest vacuum may reach < 4.0E-6 Torr by pumping overnight and baking



Gas Atmosphere

  • One needle valve installed to allow Ar gas inlet to achieve better plasma coating
  • The system requires an Ar gas tank with the pressure regulator (not included)


Target

  • One 2" Copper target is included for testing, target size: 2" Dia. x 2.5mm
  • It also can coat Ag, Al, Cr, Ni, Pt, Ti, Sn, Li, Mg, etc. almost every kind of metallic material
  • Warning: Aluminum, Chromium or Nickel can be coated by this machine, but please view the Recommend Coating Method in the below target link
  • Please using RF Plasma Magnetron Sputtering coater for coating non-conductive materials and carbon

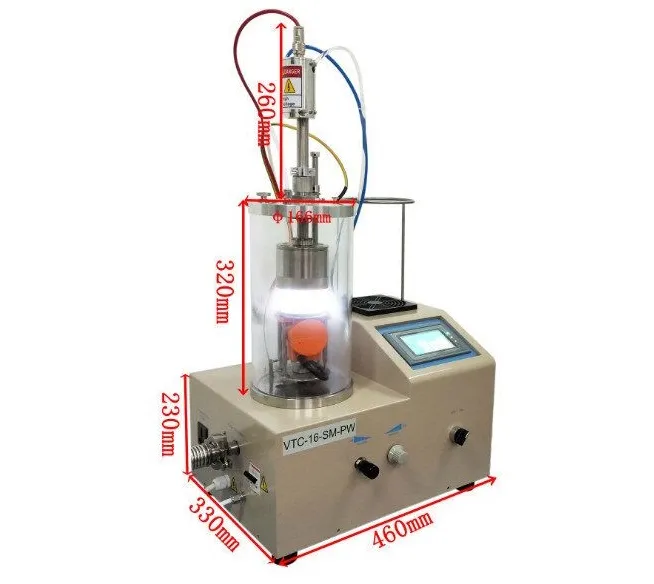

Overall Dimension



Net Weight

  • 20 kg

Shipping Weight & Dimension

  • 160 lbs
  • 45" x 45" x 40"

Compliance

  • CE approval
  • NRTL (UL 6100) certification is available upon request at an extra cost, please contact our sales representative for a quote



Warranty

  • One year limited with lifetime support

Application Notes

  • Warning: Sputtering head connects to HIGH voltage. The operator must wear gloves during operation
  • Make sure the target, sputtering head, substrate, and heating stage are clean before coating, need to use the sandpaper and alcohol to clean and fresh the Al or Nickel target each time using
  • Note: the powder must dry and disperse well before coating
  •



Coater






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Rolling Cylinder Press


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
