30 to 2000L Roll Ball Mill with Different Types of Inner Liners Options

Product overview

This experimental ball milling equipment can set the abrasive time arbitrarily and can be used for both dry and wet grinding. It adopts frequency conversion technology, with a wide speed regulation range. It is convenient for abrasive, mixing and uniformity. The equipment does not require foundation treatment during installation, has low noise, low pollution, is easy to clean during operation, and has good grinding sealing performance. This machine is a new type of grinding equipment that is small, lightweight and multi-purpose for laboratory use. It can be used by laboratories, research units and concentrators in metallurgy, geology and chemical engineering, building materials, and coal industries for the purpose of grinding fine ore when conducting ore beneficiability research. This product features advanced performance, a reasonable structure, high sample preparation efficiency, and excellent sealing performance. It is suitable for the crushing and processing of various metal and non-metal mineral raw material laboratory samples. Any production units in the geological, mining, carbon metallurgy, coal, building materials, and power sectors that need to conduct laboratory crushing and processing can choose it. At the same time, it is also used for ultra-fine grinding processing in the coating, ink, fuel, and food industries. The ball mill is a key equipment for further grinding of materials after they have been crushed. Ball mills are widely used in the production industries of cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal beneficiation, as well as glass and ceramics, for dry or wet grinding of various ores and other grindable materials.

Working principle of the product

This ball mill is a horizontal cylindrical rotary device, driven by outer edge gears, with two compartments and a grate type ball mill. The materials are evenly fed into the first chamber of the mill through the feeding device and the hollow shaft spiral. This chamber is equipped with step liners or corrugated liners and contains steel balls of different specifications. As the cylinder rotates, the centrifugal force lifts the steel balls to a certain height and then they fall, exerting impact and grinding effects on the materials. After the materials are roughly ground in the first bin, they pass through a single-layer partition plate into the second bin, which is lined with flat plates and contains steel balls to further grind the materials. The powder is discharged through the discharge grate, completing the grinding operation.

Product structure characteristics

This machine is mainly composed of the feeding part, discharging part, rotating part, transmission part (reducer, small transmission gear, motor, electrical control), etc. The hollow shaft is made of cast steel, and the inner lining is detachable. The large rotating gear is processed by casting and gear hobbing. The cylinder is lined with wear-resistant plates, which have good wear resistance. This machine operates smoothly and reliably.

Product parameter table

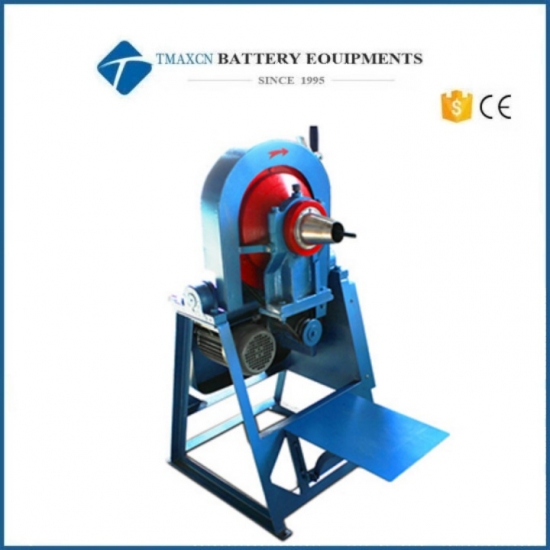

 Product display
