Model

GBP800S-2

Source voltage

AC110V-240V, Customized

Warranty

One Year limited warranty with lifetime support

Type

Single section single station

Dimension(L*W*H)

SUS304 stainless steel plate, 1200*800*930mm

Total dimension(L*W*H)

SUS304 stainless steel plate, 1915*830*1830mm

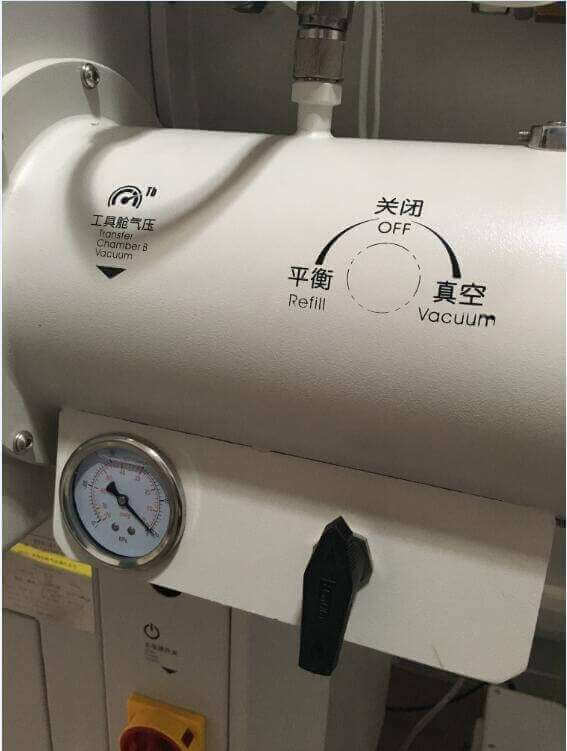

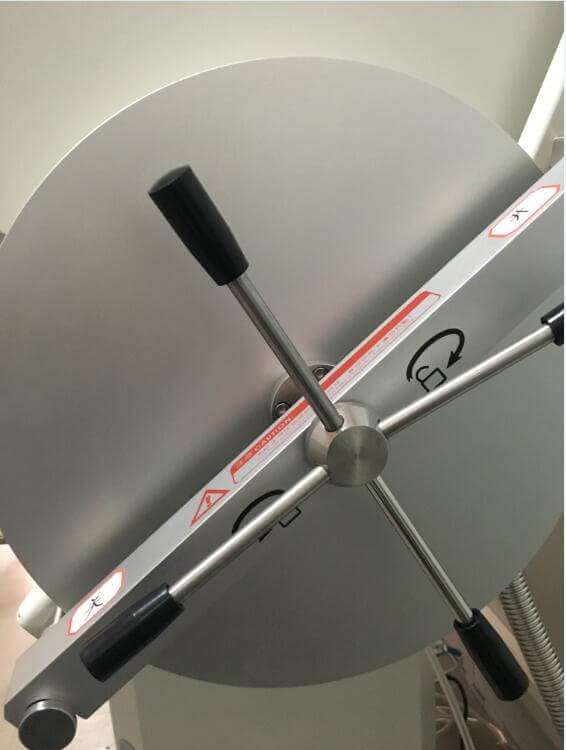

Big transitive cabin

SUS304 stainless steel, DN385*588mm

Small transitive cabin

SUS304 stainless steel, DN150*350mm

Gloves

2 pcs, butyl material, thickness : 0.4mm

Gloves port

DN215mm, Acid and alkali resistant material PPS

Purification system

Single purifying column,

With the remove of water, oxygen function

Control system

6 inch color touch screen, SIEMENS

Vacuum pump

4L/S

Pressure sensor

-2500~2500Pa, Touch screen

H2O concentration

<1 ppm (20 °C, 1 atm) Touch screen

Oxygen concentration

<1 ppm (20 °C, 1 atm) Touch screen

Organic solvent filter

21 L

Working gas

N₂,Ar,He

Specifications of Standard Model of Purification Glove Box

No.

Model No.

Box Dimensions

Total Dimensions

Operating Sides

Numbers of Gloves

Options

1

GBP800S-2

1200*800*930mm

1915*830*1830mm

Single

2

Single or double purification columns

2

GBP1000S-4

1200*1000*930mm

1915*1060*1830mm

Single

4

Single or double purification columns

3

GBP1000D-4

1200*1000*930mm

1915*1060*1830mm

Double

4

Single or double purification columns

4

GBP1200S-2

1200*1200*930mm

1915*1260*1830mm

Single

2

Single or double purification columns

5

GBP1200D-4

1200*1200*930mm

1915*1260*1830mm

Double

4

Single or double purification columns

6

GBP800S-3

1500*800*930mm

2215*1060*1830mm

Single

3

Single or double purification columns

7

GBP1000S-3

1500*1000*930mm

2215*1060*1830mm

Single

3

Single or double purification columns

8

GBP1000D-6

1500*1000*930mm

2215*1060*1830mm

Double

6

Single or double purification columns

9

GBP1200S-3

1500*1200*930mm

2215*1260*1830mm

Single

3

Single or double purification columns

10

GBP1200D-6

1500*1200*930mm

2215*1260*1830mm

Double

6

Single or double purification columns

11

GBP800S-4

1900*800*930mm

2615*1060*1830mm

Single

4

Single or double purification columns

12

GBP1000S-4

1900*1000*930mm

2615*1060*1830mm

Single

4

Single or double purification columns

13

GBP1000D-8

1900*1000*930mm

2615*1060*1830mm

Double

8

Single or double purification columns

14

GBP1200S-4

1900*1200*930mm

2615*1260*1830mm

Single

4

Single or double purification columns

15

GBP1200D-8

1900*1200*930mm

2615*1260*1830mm

Double

8

Single or double purification columns

Notes：
Cabinet water and oxygen content under the standard condition:
Water content ≤1ppm, oxygen content≤1 ppm (Note: Standard condition is that an atmospheric pressure, constant temperature of 20 degree).
Leakage Rate: ≤0.05Vol%/ h (subject to change value of oxygen content in box)

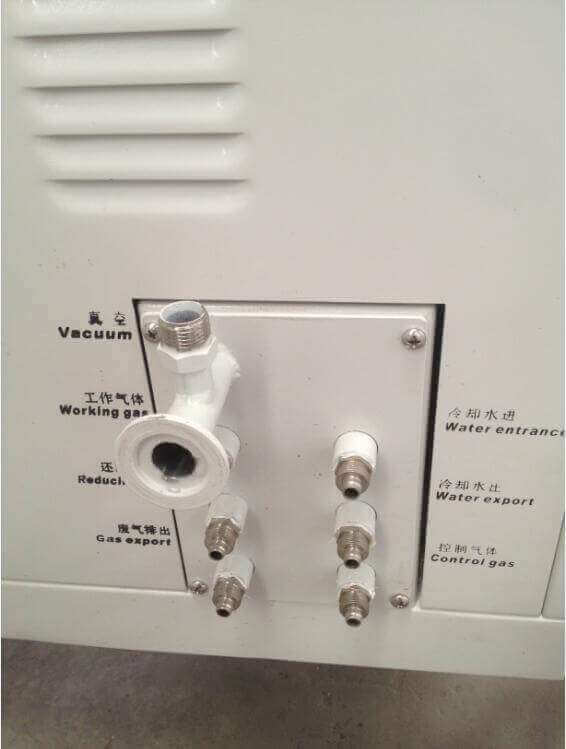

Used Gases
a) Working Gas: N2、Ar、He and etc.
b) Controlling Gas: Compressed air or Inert Gas.
C) Restoring Gas: Mixed gas of working gas and hydrogen.
Restoring gas is as same as working gas if there is only water removal system or oxygen removal system.
Remarks: All Single side boxes of 4 gloves are assembled glove box. Numbers of assembled box can be ordered as per customer’s needs. Quantity of purification columns is also designed to be matched according to customer’s requirements
