Laboratory Desktop Precision Flat Slot Die Coater W/ Heating Vacuum Chunk
Model Number:
TMAX-PD100Compliance:
CE CertifiedWarranty:
One Year limited warranty with lifetime supportShipping Port:
XiamenPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 18659217588
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Intermittent Slot Die Coating Coater Machine With Drying Oven And Winding&Unwinding SystemNext:
Lab Customized Film Coating Machine with Doctor blade & Bar Alternately

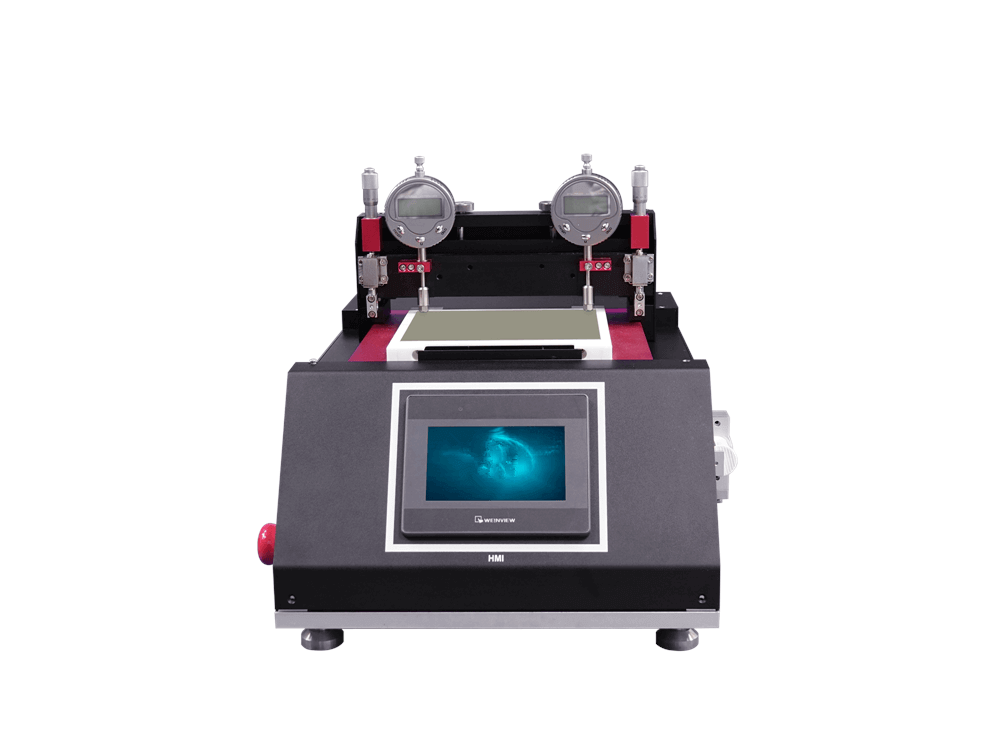

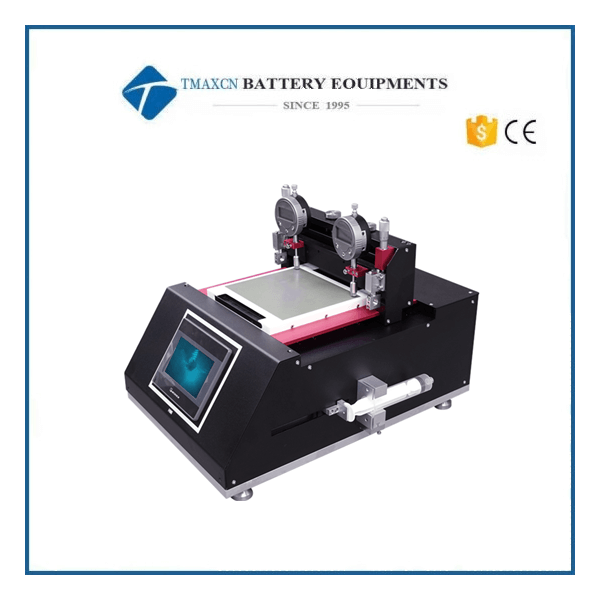

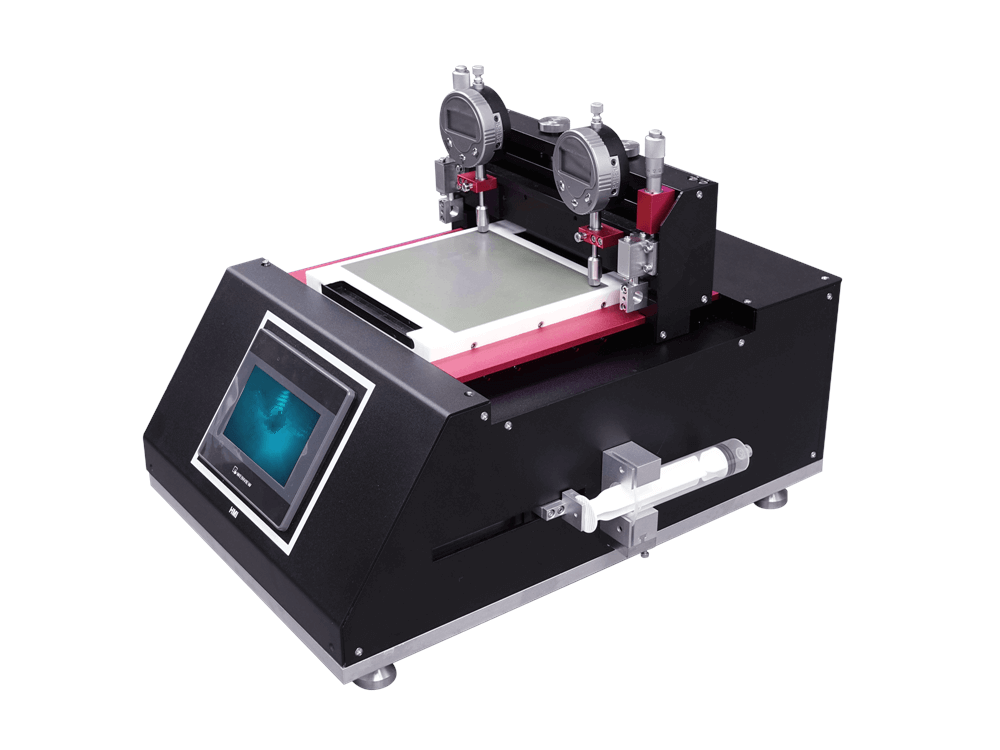

Laboratory Desktop Precision Flat Slot Die Coater W/ Heating Vacuum Chunk
TMAX-PD100 is a precision slot die coater with a 100 mm width coating head. It is an excellent tool to research film coating for OLED, perovskite solar cells, and fuel cell proton exchange membrane. Choosing the best bar coater from our company.
Features
*Adopting the extrusion coating process, the coating accuracy is high, the consistency is good, and the coating window is wide.
*Chip extrusion coating, with high coating accuracy and good consistency.
*Suitable for low viscosity coatings and thin coating processes.
*The demand for coatings and substrates is small, easy to use, and suitable for process validation.
*Coated substrate with vacuum adsorption function, standard vacuum pump.
*Coating substrate with heating function, temperature controllable.
*Multiple coating processes can be optionally selected
*Optional wind knife module for perovskite coating.
*Special coating plates can be selected for membrane coating.
*Can be used inside the glove box.
SPECIFICATIONS
Power supply |
Single phase AC110-20V ± 10%, frequency 50/60Hz, power 280W |
Coating method |
extrusion coating |
Coating thickness |
± 1 µ m (reference graphite carbon slurry, viscosity ≤ 1000mPa. s, solid content 5%, coating dry thickness ≤ 5 µ m) |
Extrusion die head |
Brand: Domestic Type: Single layer coating Chamber: semi-circular single chamber Coating width: Max.100mm Gasket: Comes with 1 set of gaskets as standard, with opening size specified by the customer |
Mold head movement |
0.05-20mm/s(Squeezing coating head movement speed) |
Mold feeding |
Speed: 0.05-5ml/s Mold cavity capacity (single cavity): approximately 2.6ml |
Mold head adjustment |
Adjustment range: 0-5mm Adjustment method: manual adjustment with micrometer, display accuracy of 1 μ m |
Coating size |
Max.L100ｘW100mm |
Substrate accuracy |
Flatness of 6 μ m at room temperature |
Minimum material loss |
About 12ml |
Substrate temperature |
Max 120 ℃ (heating time of more than half an hour) |
Substrate size |
L150ｘW130mm |
Device dimensions |
Approximately L450xW360xH350mm |
Weight |
About 20Kg |
