Ball Mill Machine

Laboratory High Speed Vibrating Ball Mill Machine for Lithium Battery R&D

  • Model Number:

  • Input Power:

  • Dimension(L*W*H):

  • Net Weight:

    40 kg (88 lbs)
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • Place of Origin:

    Fujian, China (Mainland)
  • MOQ:

  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    7 day
  • contact now
Product Details

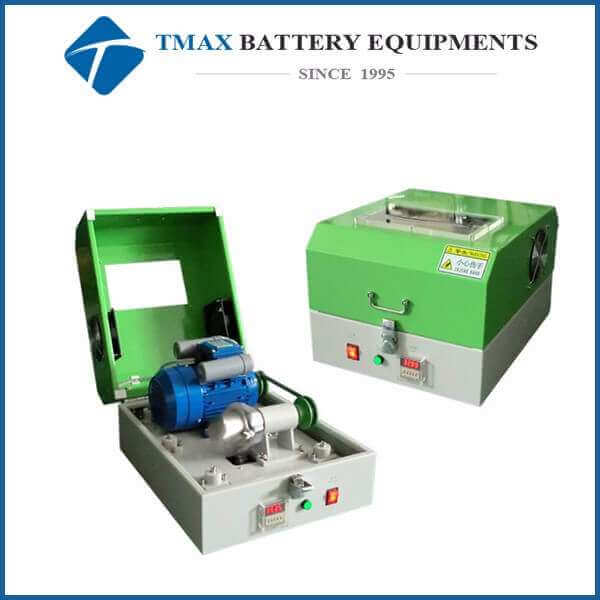

High Speed Vibrating Ball Mill for Lithium Battery R&D

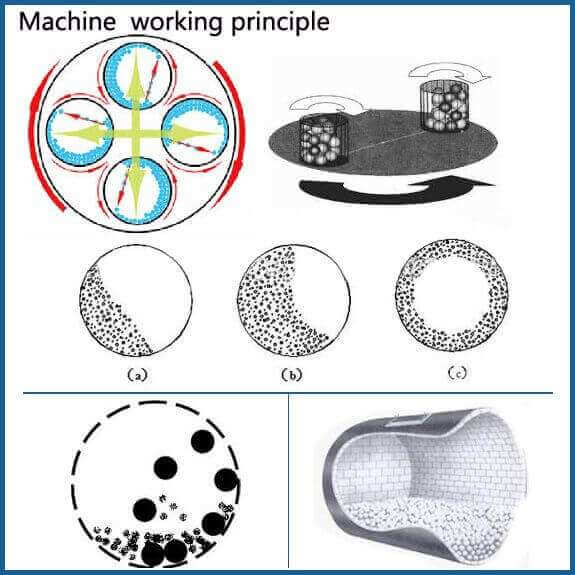

TMAX-ZQM1 is a compact high speed vibrating ball mill for making the small quantity of powder samples at easy and fast with improved vibration design. It has higher impact energy created by three-dimensional movement, e.g. rotation, vibration and oscillation with frequency up to 1200 cycles per minute with the two-year warranty. The TMAX-ZQM1 can be used in either dry or wet method to mill materials and mix all kinds of solids, suspended liquids, and pastes with different sizes and materials. One milling jars is included for the use of most of the materials. It is an ideal choice to make small quantity sample in material and chemical research laboratories.



1. 1200RPM allows efficient pulverization and homogenization
2. Easy jar installation
3. Optional for variable speed

Standard Milling Jars & Media

One 80 ml Stainless Steel Jar with a set of SS milling balls are included for achieving a finer particle size.

Power Input

220V AC Power plug

Motor Power Comsumption


Oscillation Frequency

1,200 rounds/min

Timing Range

0 to 120 minutes for built-in mechanical timer

Maximum Feeding Capacity

1/3 of the capacity of the ball milling tank

Feeding Granularity


Discharging Granularity

0.1 micron minimum for certain material ( Mainly ceramic material )


CE Certified


Two years limited warranty with lifetime technical support

Overall Dimensions


Net Weight

40 kg (88 lbs)

Detailed Images

                  Ball Mill Machine



           Vibrating Ball Mill

Our Certifications


Cooperative Brand


Hot Sale Products

1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.

Ball Mill for Lithium Battery

Packing & Delivery

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
