Fully Transparen  Glove Box For Lithium Battery

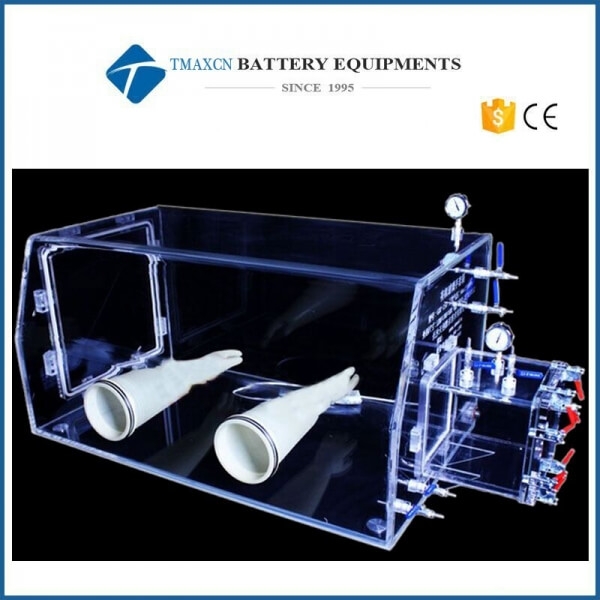

Laboratory Protection Vacuum Transparent Glove Box

  • Model Number:

    TMAX- Glove Box6
  • Dimension(L*W*H):

    1000mm*500mm*500mm
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    60 day
  • contact now
Product Details

glove box

Applications of Transparent Vacuum Glove Box

Some materials are very sensitive to water and oxygen when doing chemical experiment.So it is hard to finish the research. Although vacuum vessel can satisfy anaerobic and vacuum degree, it is not convenient for operating the procedure. Vacuum glove box solve the environment and operation problem.So it is widely used in chemistry, biology and biochemistry, especially in catalyst and metal organics.

Main Parameters of Transparent Glove Box

No.

Model No.

Box Size
(mm)

Material

Glass Thickness
(mm)

Size of Transition Cabinet
(mm)

Remarks

1

GBT-10A

740*450*500

Organic Glass
or Acrylic Glass

10

No Transition Cabinet

Isolated from dust, no vacuum

2

GBT-15A

740*450*500

15

240*240*240

Slight vacuum can be pumped, water or oxygen removal system is for option.

3

GBT-30A

740*450*500

30

240*240*240

Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal

4

GBT-10B

1000*500*500

10

No Transition Cabinet

Isolated from dust, no vacuum

5

GBT-15B

1000*500*500

15

240*240*240

Slight vacuum can be pumped, water or oxygen removal system is for option.

6

GBT-30B

1000*500*500

30

240*240*240

Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal

7

GBT-10C

1200*600*600

10

No Transition Cabinet

Isolated from dust, no vacuum

8

GBT-15C

1200*600*600

15

240*240*240

Slight vacuum can be pumped, water or oxygen removal system is for option.

9

GBT-30C

1200*600*600

30

240*240*240

Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal

10

GBT-10D

1200*800*700

10

No Transition Cabinet

Isolated from dust, no vacuum

11

GBT-15D

1200*800*700

15

240*240*240

Slight vacuum can be pumped, water or oxygen removal system is for option.

12

GBT-30D

1200*800*700

30

240*240*240

Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
