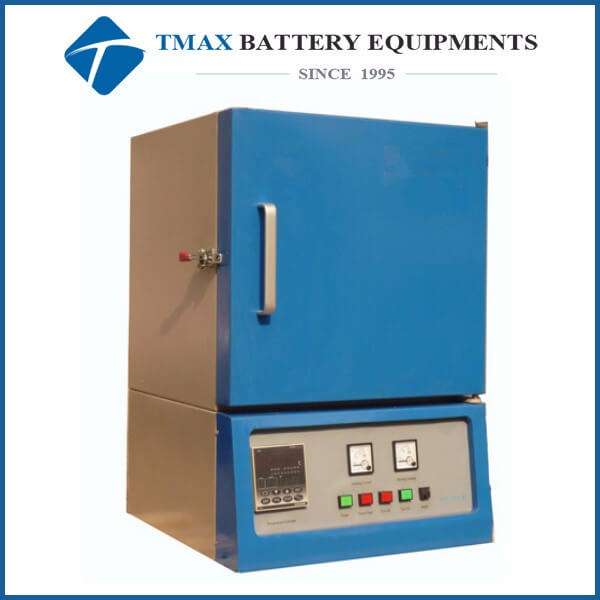

High Temperature Muffle Furnace

Laboratory UL-Standard 1600C High Temperature Electric Muffle Furnace (8 - 36 L Heated Chamber) with Programmable Controller & Venting Port

  • Model Number:

    TMAX-KFB1600
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    10 day
  • contact now
Product Details

UL-Standard 1600°C High Temperature Muffle Furnace (8 - 36 L Heated Chamber) with Programmable Controller & Venting Port

TMAX-KFB1600 is a CE certified muffle furnace that offers high purity fibrous alumina chamber, gas inlet and outlet ports and a 40-segment, programmable temperature controller, and the furnace is with UL Certified electric components. It is the ideal muffle furnace for preparing small-sized sample using temperatures up to 1600oC in material research and dental labs with maximum energy saving. In addition, the compact furnace can be placed into a glove box to sinter samples in a vacuumed or controlled atmosphere.


Here is the video link for your reference:

https://www.youtube.com/watch?v=7IXIf4sPP10&feature=youtu.be

SPECIFICATIONS:

Model

KFB1100-I

KFB1100-II

KFB1100-III

KFB1100-IV

Chamber Size

200x200x200 mm, Capacity: 8 liter

300x200x200 mm, Capacity: 12 liter

300x250x250 mm, Capacity: 19 liter

400x300x300 mm, Capacity: 36 liter

Power

5 KW

6KW

7KW

10KW

Furnace Construction

High purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands.

Voltage

220V or AC 380V 50/60 Hz

Operating Temperature

1.    1500°C max continuously

2.     1600°C max for 1 hour

Max. Heating Rate

30 °C /min

Temperature Controller

1.      PID automatic control and auto-tune function.

2.      40 programmable segments for precise control.

3.      Built in protection for the over-heating and broken thermocouple.

4.      Large digital control panel (48 x 96 mm) for easy operation.

Temperature Accuracy

+/- 1 °C

Heating Elements

Fe-Cr-Al Alloy doped by Mo

Thermocouple

K type

Net Weight

8~ 30Kg

Warranty

One year limited warranty with lifetime support

Compliance

 CE Certified

Application Notes

With the small footprint, low weight and low power requirement, it can be easily accommodated in a glove box and heat treat samples under protective gas.

Warnings

1.      Toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. Please put furnace into fume hood for better safety.

2.      Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.

Detailed Images

                    High Temperature Muffle Furnace

Our Certifications



Cooperative Brand



Hot Sale Products


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


High Temperature Muffle Furnace

Packing & Delivery


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
