Freezer

Large Industrial Ultra-low Temperature Refrigerator

  • Model Number:

    TMAX-B60
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

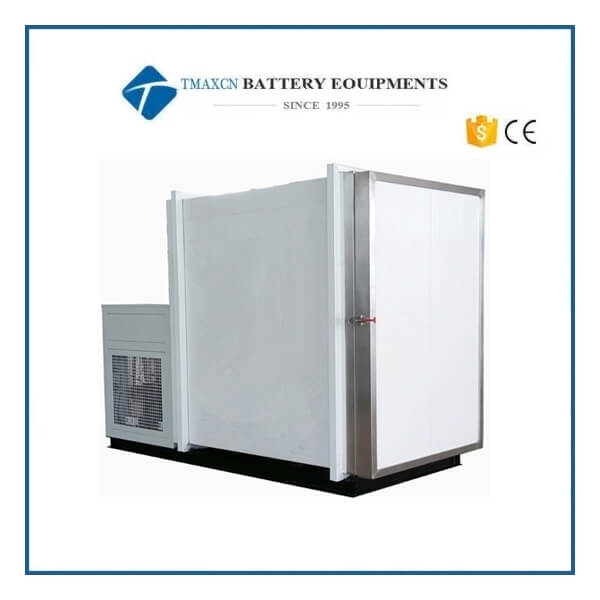

Large Industrial Ultra-low Temperature Refrigerator


Applications

1. It is mainly used to assess and determine the adaptability test of parts and materials of electrical, electronic, aerospace, automobile electrical appliances, materials and other products, electronic components and other related products when they are stored and used in low temperature and constant temperature environment, and test their performance indexes.

2. It is mainly used in the industrial cooling treatment to make the homogeneous, fine and dispersive carbonization products on the metal structure matrix precipitate. The precipitation of this kind of carbide will improve the wear resistance and friction performance of the metal significantly, the hardness will also increase, and will directly improve the life of the wear parts. An ideal alternative to liquid nitrogen.

3. It is used for copper sleeve, bearing and other cold shrinkage, widely used in precision machinery assembly.

4. It is applied to the ultra-low temperature test of large equipment (automobile, large construction machinery, aircraft parts, aerospace equipment parts, military equipment parts).

5. Food preservation and refrigeration;

6. Cold storage of seafood;

7. Can be used as low temperature refrigeration equipment of cold chain logistics distribution vehicle


Features

 Easy to use: the refrigerator door adopts full-automatic valve control, and the door opening and closing are completely controlled by electricity, which is easy and convenient.

 Safety: the panel control is equipped with 4 fault lights, such as valve switch, refrigeration switch, operation and fault. If any part fails, the fault light will be on, and the unit will automatically protect and stop operation without any danger.

 Energy saving: save energy consumption through special compressor system and refrigerator door system, users can use it at ease.

● microcomputer control, cascade temperature controller, digital display of temperature, adjustable unit 0.1 degree, temperature range in the box - 20 degrees to - 125 degrees;

● multiple safety protection, more reliable operation;

● French Taikang compressor, German blog compressor, bizel compressor, binary cascade supercooling technology;

● it has self diagnosis function, refrigerator overload protection, high pressure switch, overload relay, thermal protection device and other safety protection functions to fully ensure the use safety;

Three layer sealing, mold heat breaking layer, super thick polyurethane foam insulation layer, better insulation; embedded vacuum insulation board.

● humanized design, flexible and convenient;

● it is suitable for the environment of mechanical workshop;

● super large condensation design to ensure the cooling effect of workshop environment;

● large volume ratio design; large capacity bearing capacity design;

● it can set the temperature difference between the compressor on and off;

● various fault alarms (overtemperature alarm, sensor alarm, high pressure alarm, compressor overtemperature alarm;

● startup delay protection;

● all parts are grounded safely;

● LED display, which can display the temperature in the box and the set temperature at a glance; it can set the over temperature alarm and the temperature in the box, with the function of fault prompt;

Customized non-standard size, ultra-low temperature freezer (can produce and manufacture ultra-low temperature freezer within - 100 degrees and 100 cubic meters)

● optional color touch screen, temperature recorder and other equipment


SPECIFICATIONS

Model

TMAX-B60-1000L

TMAX-B60-1500L

TMAX-B60-2500L

TMAX-B60-3500L

Volume

1020L

1700L

2500L

3400L

temperature range

-40~-60℃

-40~-60℃

-40~-60℃

-40~-60℃

carrying capacity

500KG

500KG

500KG

500KG

Cooling mode

Air cooling

Air cooling

Air cooling

Air cooling or water cooling

Refrigerant injection

R404A+R23

R404A+R23

R404A+R23

R404A+R23

Chamber size

(Width * depth * height)

1000*600*1700

1000*1000*1700

1000*1500*1700

1000*2000*1700

Overall size

(Width * depth * height)

1500*1800*2200

1500*2200*2200

1500*2700*2200

1500*3200*2200

Door opening mode

Heavy hinged door, heavy stainless steel door lock

Temperature control

PID temperature control, temperature control accuracy ± 0.1 ℃

sensor

PT100 platinum resistance, ± 100 ℃

Indicator light

Indicator light: power failure light, compressor running light, compressor failure light, fan failure light

Safeguard

Protection: leakage proof air switch, high and low voltage, overvoltage and undervoltage, phase loss, overcurrent, double door seal

Power Supply

Three phase five wire 380V 50Hz

Various specifications and models can be customized according to customers' needs:

1

Loading capacity;

2

Chamber size: length, width, height or overall dimension of parts provided;

3

Time to cool down to the target value under full load.

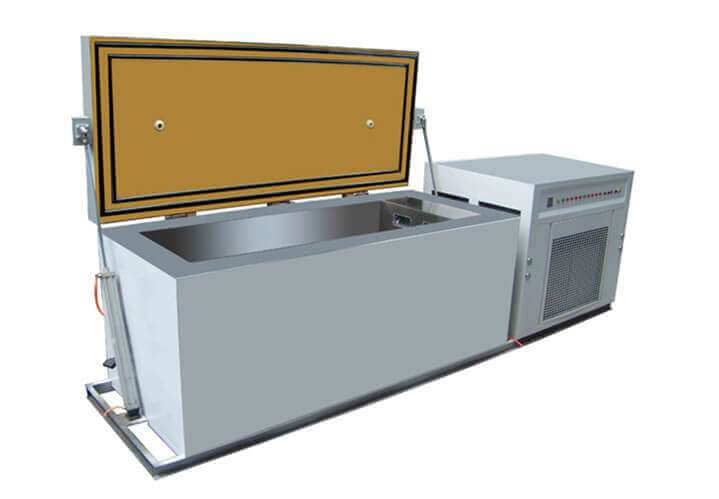

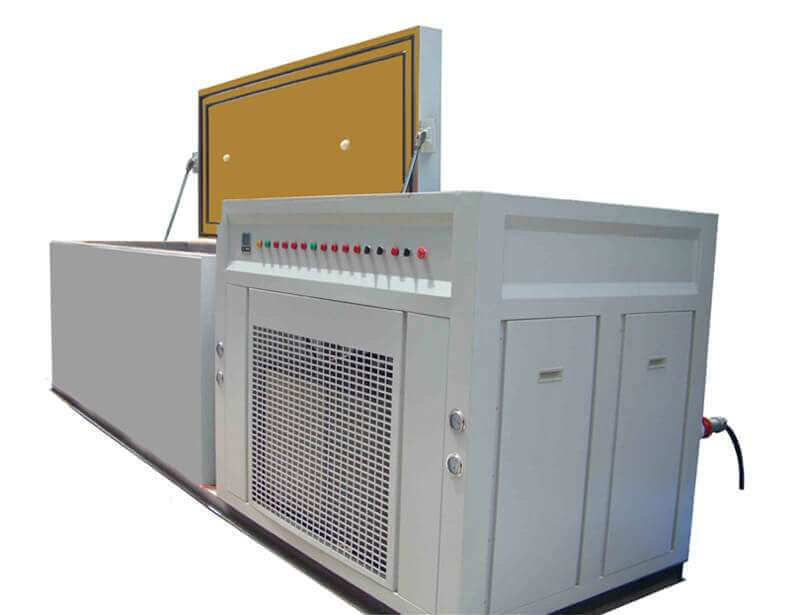

Related small freezer

Model

Internal dimensions

(L*W*H, mm)

External  dimensions

(L*W*H, mm)

Power

Temperature range

Product features

TMAX-40-50-LA

360*408*405

540*630*1080

315







-15~-40


Top opening door, with secondary insulation door inside, right angle flat bottom or with step liner, imported microcomputer temperature controller, with sound and light alarm system

TMAX-40-158-LA

460*430*800

700*700*1535

550

TMAX-40-60-WA

390*370*400

520*500*795

300

TMAX-40-100-WA

695*465*300

900*670*795

350

TMAX-40-200-WA

845*465*590

1050*670*795

400

TMAX-40-300-WA

1195*465*590

1400*670*795

450

TMAX-40-568-WA

1755*465*650

1880*670*795

550

TMAX-40-1000-WA

2120*757*670

2265*898*843

900

TMAX-60-50-LA

360*408*405

540*620*1080

400









-25~-65










Integral polyurethane foam door, stainless steel insulated inner door, imported microcomputer temperature controller, complete alarm system

TMAX-60-158-LA

460*430*800

540*620*1080

600

TMAX-60-400-LA

550*630*1140

700*700*1535

800

TMAX-60-598-LA

700*680*1255

850*930*1945

1200

TMAX-60-60-WA

390*370*400

940*950*1920

350

TMAX-60-108-WA

695*465*300

520*500*795

400

TMAX-60-208-WA

845*465*590

900*670*795

450

TMAX-60-308-WA

1195*465*590

1050*670*795

500

TMAX-60-468-WA

1260*540*670

1400*670*795

600

TMAX-86-50-LA

360*408*405

540*630*1080

400







-40~-86

TMAX-86-158-LA

460*430*800

700*700*1535

720

TMAX-86-400-LA

550*630*1140

850*930*1945

850

TMAX-86-598-LA

700*680*1255

940*950*1920

1300

TMAX-86-60-WA

390*370*400

520*500*795

400

TMAX-86-108-WA

695*465*300

900*670*795

400

TMAX-86-120-WA

550*400*555

1280*780*980

450

TMAX-86-208-WA

845*465*590

1050*670*795

450

TMAX-86-308-WA

1195*465*590

1400*670*795

500

TMAX-86-468-WA

1260*540*670

1920*800*1070

700

TMAX-136-120-WA

550*400*545

1280*780*980

2300

-80~-136

TMAX-153-120-WA

550*400*545

1280*780*980

3800

-110~-153

TMAX-165-120-WA

550*400*545

1280*780*980

4800

-120~-165

TMAX-180-120-WA

550*400*545

1280*780*980

8500

-140~-180
