Film Coater

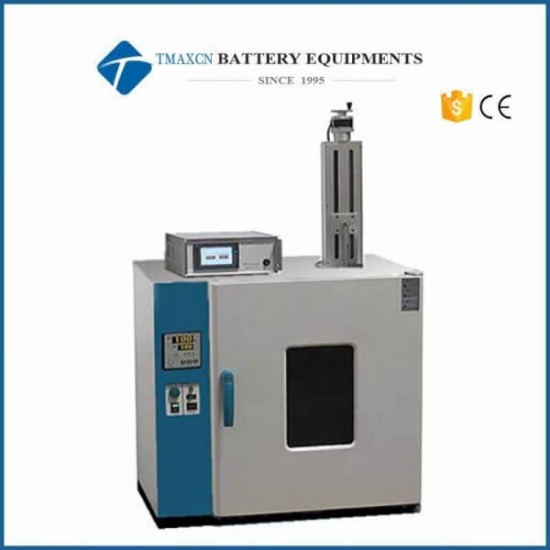

Large size 5-position programmable dip coater w/ 225L Dry Oven

  • Model Number:

    TMAX-PTL-OV5P-L
  • Compliance:

    CE Certified
  • Warranty:

    One Year limited warranty with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    7 day
  • contact now
Product Details

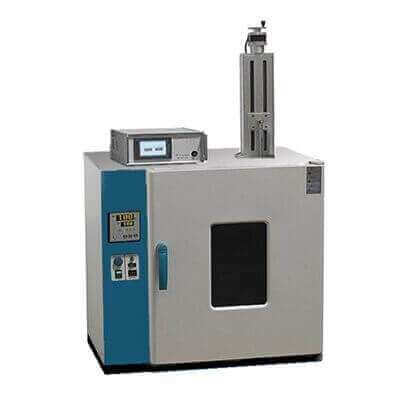

Large size 5-position programmable dip coater w/ 225L Dry Oven



Specifications:

Structure

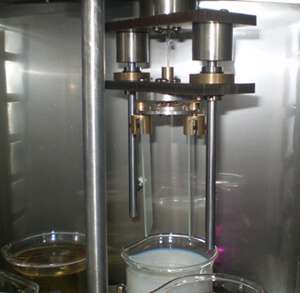

· 5 positions programmable rotary stage

· stepping motor control pulling system with control resolution as low as 1mm/min

· Stainless steel pulling wire

· quick sample clip for up to 10" x 3" sample

· Stainless steel oven chamber

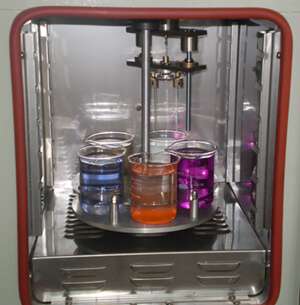

Rotary dipping stage

The rotary dipping stage has five slots to place coating solution containers. It is controlled by the program to send each container sequentially in position for sample coating. According to the program which user can coat their sample with one or multiple layers of coating at one go.

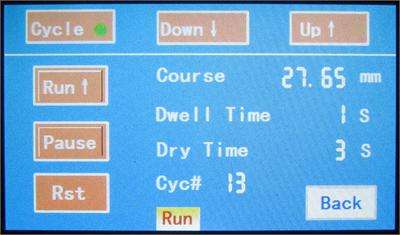

Touch screen controller

6" color touch screen controller


Travelling Distance

300 mm max.

Dipping/Pulling Speed

1-200 mm/min Adjustable

Max. Working Temperature

200°C (+/- 1.5°C accuracy)

Max. Sample Size

10" x 3"

Max. Sample Weight

4 kg

Dipping/Pulling Motor

Stepping Motor

Oven

· Working Voltage: 208-240V AC

· Max. Power Consumption: 2300W

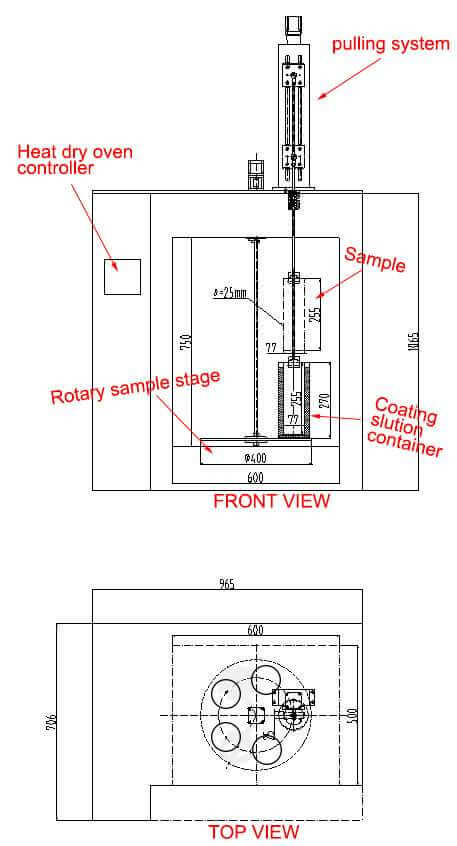

· Inside dimensions: 600 x 500 x 750mm (L W H)    ( 225L)

Compliance

CE Certified

Warranty

One year limited with lifetime support

Application Notes

· In order to get better film coating, the substrate shall be treated by plasma cleaner

· Use ultrasonic processor to disperse nanopowder or homogenize solution to get better coating

Net Weight

100 kg (220lbs)

Shipping Dimensions

40"(L) x 40"(W) x 60"(H)

Shipping Weight

182 kg (400 lbs)


        Dip Coater

Dip Coater

Dip Coater

Dip Coater

Dip Coater

Dip Coater






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Film Coater


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
