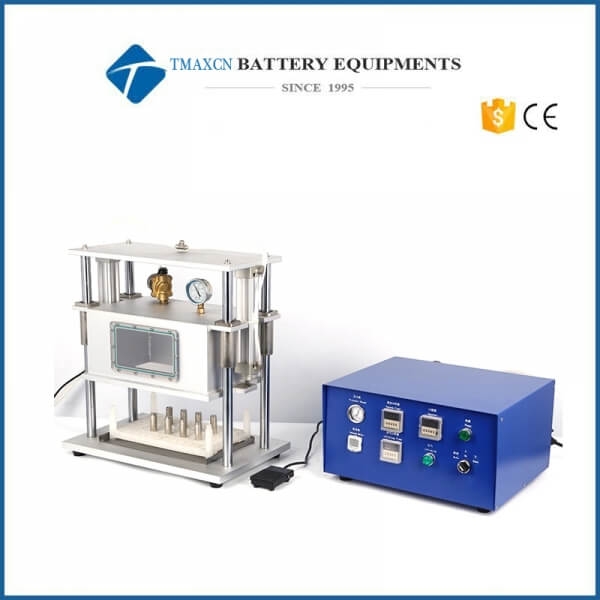

Li-ion Battery Electrolyte Diffusion & Degassing Chamber
Model Number:
TMAX-JZ200Dimension(L*W*H):
326mm(L) x 206mm(W) x 148mm(H)Compliance:
CE CertifiedWarranty:
One year limited with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
8 Channel Battery Tester (6.0-3000mA, up to 5V) with Laptop & Moble Phone & Software for ResearchNext:
Laboratory Small Electrolyte Filling Machine for Li-ion Battery
Li-ion Battery Electrolyte Diffusion & Degassing Chamber
Specification
Model |
TMAX-JZ200 |
Power Supply |
110-240 V, Single Phase 50/60Hz |
Max. Power |
50W |
Compress Air |
≥0.6Mpa, <=1.5Mpa |
Inner Chamber Size |
326mm(L) x 206mm(W) x 148mm(H) |
Chamber Body |
12mm thick Aluminum case with observation window |
Gas Filling Rate |
<= 5 psi |
Air Pressure Range |
0 - 1 Mpa (0 - 99 psi) Adjustable (Air Compressor is required , but not included. Please click here to order) |
Vacuum Level |
· Vacuum condition remains stable, vacuum degree and vacuum circulation times can be set independently |
Air Inflation Time |
0 - 99.99 sec |
Vacuum Condition Hold Time |
0 - 99.99 sec |
Operation Temperature |
-20 to 40 ℃ |
Product Dimensions |
· Vacuum Box: 470mm(L) x 330mm(W) x 420mm(H) · Control Unit: 460mm(L) x 220mm(W) x 340mm(H) |
Warranty |
One year limited with life time support |
net weight |
37.5kg |
Application Notes |
Attention: High purity inert gases and Vacuum Pump are necessary for operating the GN-170 Vacuum Standing Box |
Slot Trays (included)
