LiFePO4

LiFePO4 Powder for Power Battery Material

  • Model Number:

    TMAX-LFP-1
  • Compliance:

    CE Certified
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    2 days
Product Details

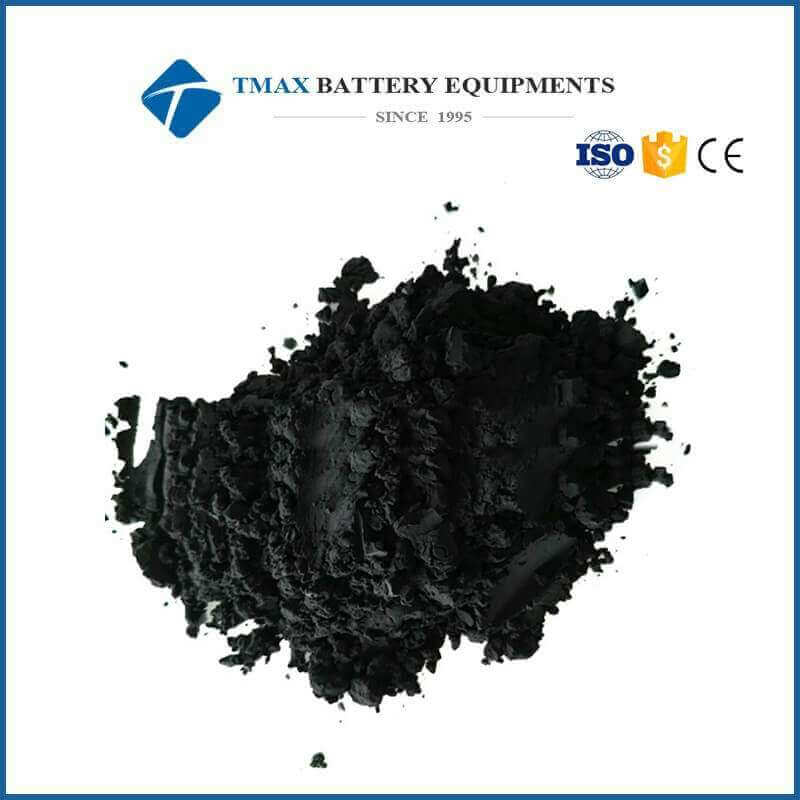

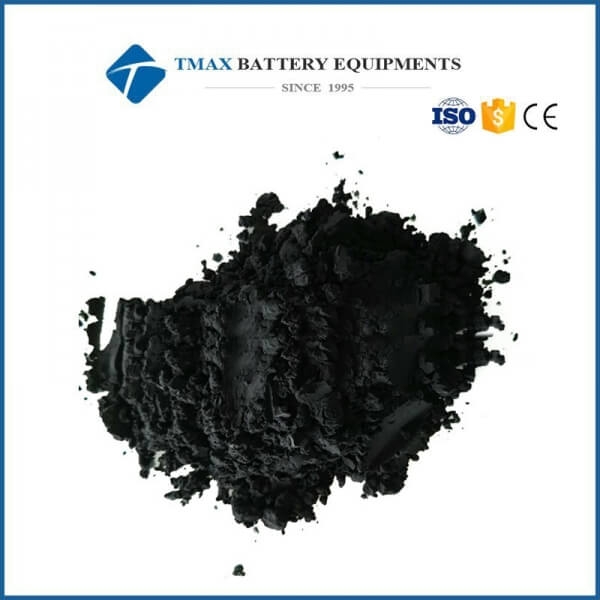

LiFePO4 Powder for Power Battery Material


SPECIFICATIONS

Main characteristics:

1. High energy density, Its theoretical specific capacity is 170 mAh/g, Actual product specific capacity can be more than 140 mAh/g (0.2 C, 25 ° C);

2. High security, is the safety of lithium ion battery cathode material; Do not contain any harmful heavy metals;

3. long life: In 100% DOD (depth of discharge) conditions, can charge and discharge more than 2000 times; (reason: lithium iron phosphate lattice stability is good, the lithium ions embedded and emergence of lattice impact is not big, so it has good reversibility. The deficiencies are ionic conductivity electrode is poor, not suitable for large current charge and discharge, stuck in applications. Solution: in the electrode coating on the surface of conductive material, doped modified electrode. )



The service life of the lithium iron phosphate battery with temperature, temperature too low or too high in the charging and discharging process and use process produce greatly bad hidden trouble. Electric cars use especially in northern China, in the fall and winter normal power supply of the lithium iron phosphate batteries or power supply is too low, need to adjust its working environment temperature to maintain its performance. At present, the domestic solve the lithium iron phosphate battery temperature working environment should be considered space limitations, the common solution is to use the aerogel blanket as a thermal insulation layer.



Item

Unit

Test results

Test method

Appearance

N.A

No agglomeration

visual inspection

Tap density

g/cm3

1.132

Contador tap density tester

Resistance

Ω.cm

114.9

Mitsubishi electric conductivity tester

Particle size

D10

um

0.549

MASTERSIZER2000

refractive index 1.84%

absorptivity 0.1%

D50

um

1.508

D90

um

6.010

Carbon

%

1.29

High frequency infrared carbon sulfur instrument

Specific surface area

M2/g

12.21

ST-08 SSA TESTING

PH

N.A

8.92

PH tester

Moisture

PPM

1043.0

Karl-Fisher Moisture analyzer

First discharge efficiency

%

97.5

Half cell

First capacity

mAh/g

155.5

LFP powder




LiFePO4
