BMS Tester

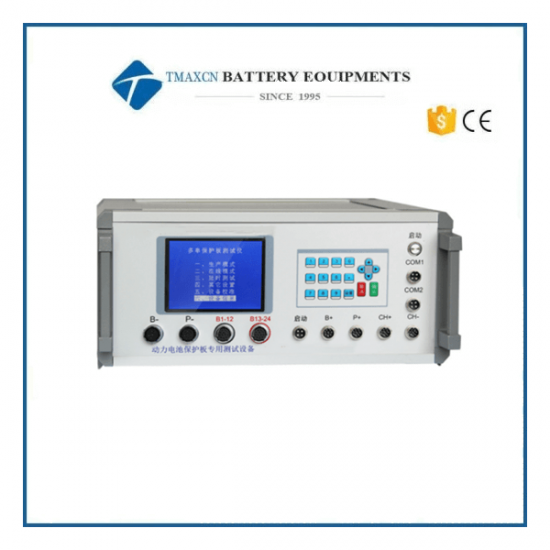

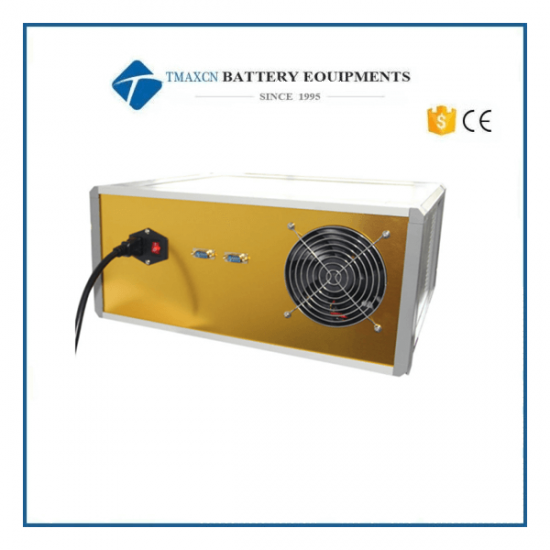

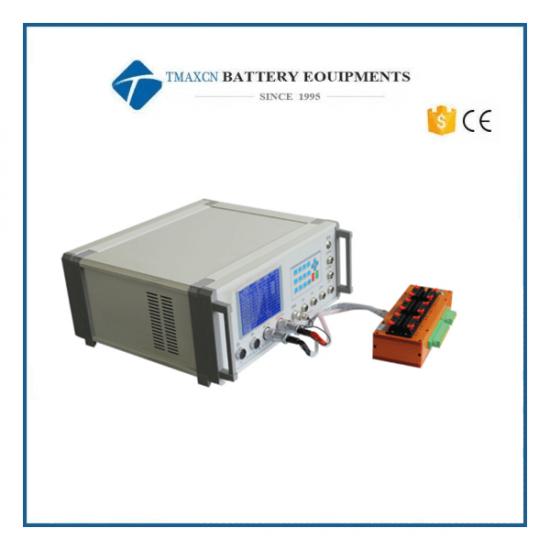

Lithium Battery Pack 1-24 Series Protective Plate (BMS) PCB Tester

  • Model Number:

    TMAX-BMS

  • Input Power:

    600W

  • Dimension(L*W*H):

    420*430*220mm

  • Net Weight:

    16kg

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited warranty with lifetime technical support

  • Place of Origin:

    China

  • Update:

    Optional

  • Shipping Port:

    Xiamen

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

Lithium Battery Pack 1-24 Series Protective Plate (BMS) PCB Tester


1. Application and Function Introduction
1.1 Application: It is mainly used to detect whether the functional indexes of power battery
protection board are within the parameter range, so as to provide a set of detection standards for
staff. It is mainly used for the test of power battery protection board of protection board

manufacturers and power battery manufacturers.

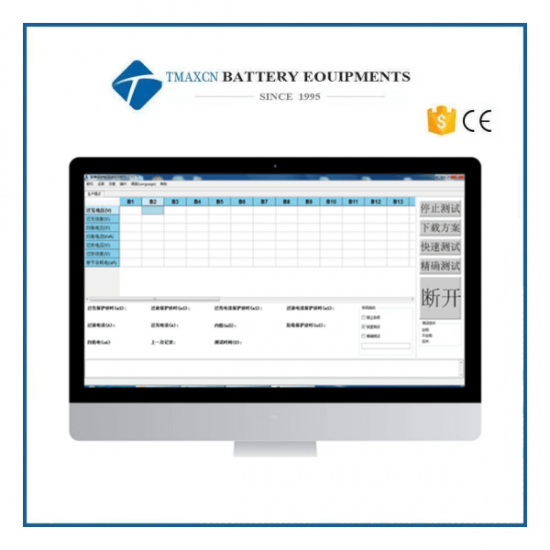

1.2 Function Introduction: PBTS protection board test system is divided into fast test and
accurate test
Accurate test: It can accurately detect the accurate value of various functional parameters of
the power battery protection board (the error is 5mv), facilitate the debugging and development
of samples, and provide a set of standards for rapid detection for R & D personnel.
Quick test: According to the design parameters of the protection board, set the test parameters
to conduct quick test, which is convenient for the protection board manufacturer and power
battery manufacturer to conduct large-scale and rapid test and delivery. It is also applicable to

the protection board test of various hardware schemes and some software schemes.


2. Main Performance
2.1 Routine test items:
Internal resistance test, overcharge and discharge test, overcharge recovery, overcharge and
discharge recovery test, overcurrent test (Charging overcurrent and discharge overcurrent),
overcharge protection voltage, overcharge recovery voltage, overcharge and discharge

protection voltage, overcharge recovery voltage, overcurrent protection, etc.

2.2 Special test items:
Short circuit protection test (Refers to the real short circuit protection test of microsecond level).
Single section self power consumption test (Refers to the true and accurate self power
consumption of each section).
Equalizing current and equalizing voltage (Can accurately grasp the equalizing current and
equalizing opening voltage).
Infrared scanning (Bar code scanning) scans the ID number of each protection board and stores

the record.

2.3 Types of protection boards supporting the test: LiFePO4、LiMn2O4、LiCoO2


3. Technical Parameter

3.1 High current module: The current level is 120A and the current accuracy is 0.1A.
3.2 Voltage module: Voltage range 0.5-5V, programmable output 0.5-5V, voltage accuracy
5mV.
3.3 Short circuit module: Super capacitor, which fully simulates the pack battery voltage,
instantly short circuits the protection board, and accurately captures the short-circuit time and

current.



Test Items

Test Scope

Accuracy

Number of test series

1-24 series



Reference voltage

LiCoO2(3.8V) LiFePO4(3.0V)



Overcharge protection voltage

0.5-5V

±5mV

Over discharge protection voltage

0.5-5V

±5mV

Overcharge recovery voltage (Self recovery)

0.5-5V

±5mV

Over discharge recovery voltage (Self recovery)

0.5-5V

±5mV

Overcharge protection current

1-40A

±0.1A

Over discharge protection current

1-120A

±0.1A

Equalizing opening voltage

0.5-5V

±5mV

Equalizing real-time current

0-1000mA

±1mA

Overcurrent protection delay

0-15S

±1mS

Overcharge protection delay

0-20S

±1mS

Over discharge protection delay

0-20S

±1mS

Single section self power consumption

0-500uA

±1uA

Loop internal resistance

0-500mΩ

±1mΩ

Short circuit protection (More than 6 series)

0-9999us

±1uS

Application

All hardware scheme protection boards and

some software boards in the market (Special test items need to be communicated)


4. Appearance&Structure and Working Environment Requirements
4.1 Equipment size: L420*W410*H200mm, net weight 15kg.
4.2 Working environment: The working power supply requires mains power AC220V input,
power supply fluctuation range (170-260V), working environment temperature - 10 ℃ to 40 ℃,
working humidity of 10% ~ 90%, maximum power of 600W, which occurs only under the
condition of high test current.



BMS Tester

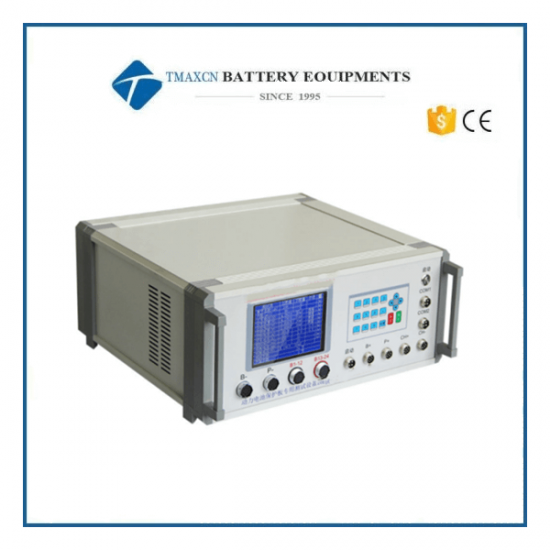

24 series BMS tester

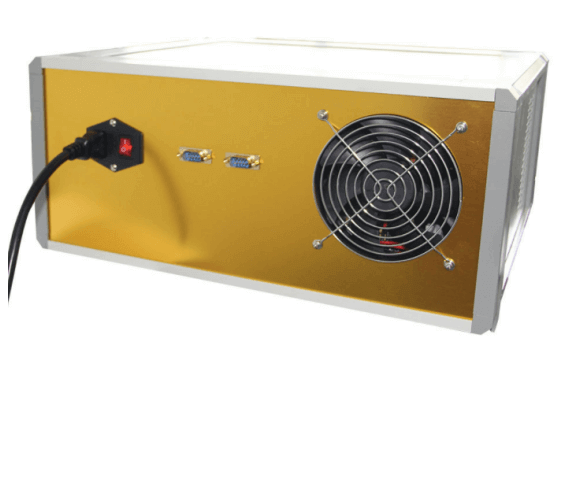

                Protecting Board Tester

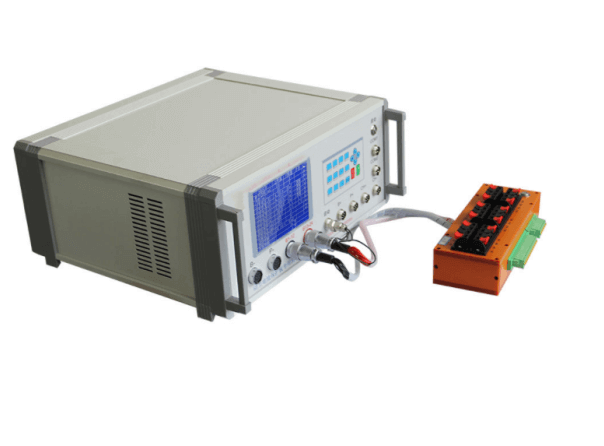

 BMS Testing Machine
