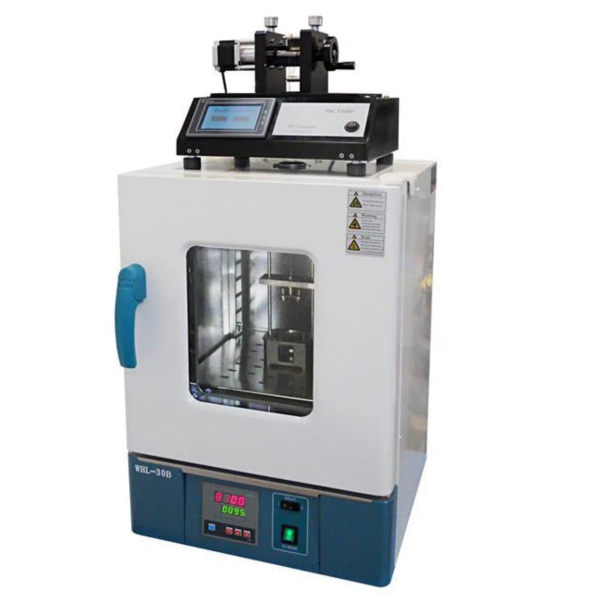

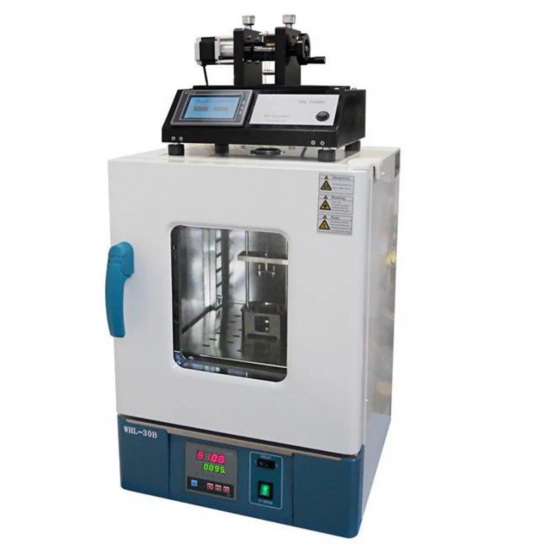

Micron-Level Constant Temperature Film Dip Coater With Hot Chamber

  • Model Number:

    TMAX-06H

  • Compliance:

    CE Certified

  • Warranty:

    One Year limited warranty with lifetime support

  • Shipping Port:

    Xiamen

  • MOQ:

    1

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

Micron-Level Constant Temperature Dip Coater With Hot Chamber


Product Description

The TMAX-06H Micron-Level Constant Temperature Dip Coater is a CE-certified product, designed specifically for dip-coating experiments in liquid-phase thin-film growth. It is a precision lifting device with micron-level accuracy, essential for scientific research institutions engaged in liquid-phase film deposition.

This model adopts a PLC-programmed control system, utilizing a high-precision stepper motor to drive the lifting mechanism and lifting wires, ensuring smooth and precise vertical movement. By immersing and withdrawing samples vertically from the liquid-phase film material, a uniform film thickness is achieved on the sample surface. The system offers two operation modes: "Single Cycle" and "Full Cycle." Parameters such as lifting speed, immersion speed, dwell time in the liquid phase, drying time, and cycle count can be independently configured.

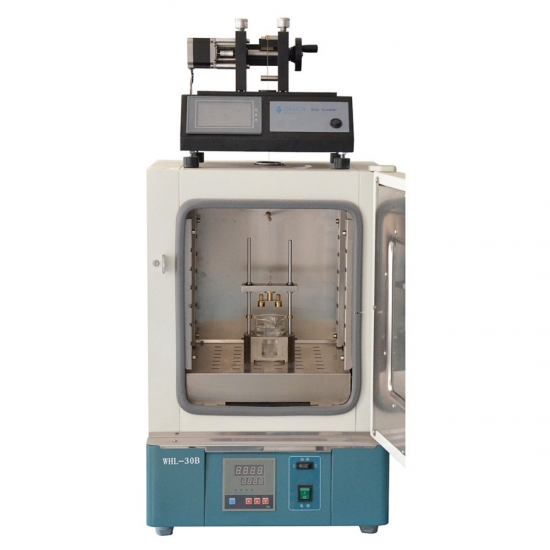

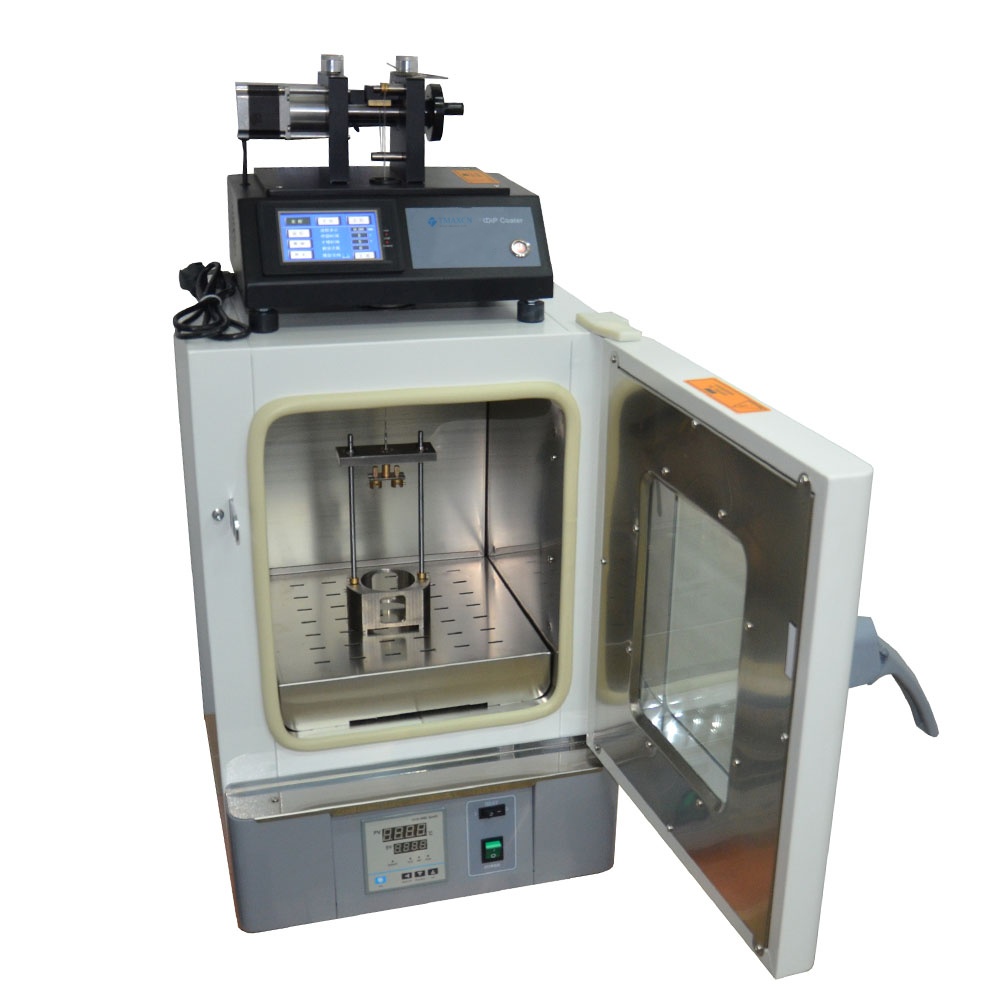

Equipped with a constant-temperature heating drying chamber, this programmable dip coater allows users to set the desired heating temperature based on process requirements. Compact, user-friendly, and portable, it is widely used in laboratories across universities, research institutes, and industrial enterprises.

Key Features

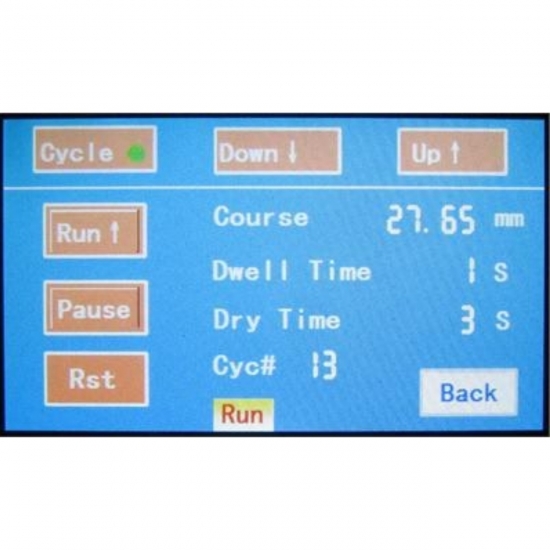

· 4.3-inch color touchscreen with an intuitive interface, suitable for beginners.

· Compact size and high cost-performance ratio, saving lab space.

· PLC-controlled high-precision stepper motor with suspended wire transmission for vibration reduction.

Technical Specifications

Parameter

Specification

Installation Conditions



Power Supply

AC220V, 50/60Hz, 10A standard socket (proper grounding required)

Operating Environment

Temperature: 25°C ±15°C, Humidity: 55%RH ±10%RH

Main Parameters



Lifting Unit Voltage

DC24V 3.75A (Standard adapter: AC100–240V)

Lifting Unit Power

50W

Type

Programmable—Constant Temperature (with heating chamber)

Drive Motor

High-precision stepper motor

Speed Range

1–500 µm/s

Dwell Time

1–999s

Drying Time

1–999s

Lifting Stroke

1–75mm

Lifting Cycles

1–20 times

Max Immersion Depth

≤60mm

Max Load Capacity

≤100g

Sample Substrate Size

75mm × 25mm × 2.5mm (holds 2 pieces)

Display & Control

4.3-inch color touchscreen

Heating Chamber Parameters



Working Voltage

AC220V 50/60Hz

Rated Current

3.6A

Heating Power

0.8KW

Temperature Range

RT (room temp) ~ +100°C

Temperature Control/Setting

Dual-digit PID / 4-button touch setting

Timer Range

0–9999 min/h

Internal Dimensions (Capacity)

310mm × 310mm × 310mm (30L)

External Dimensions

428mm × 500mm × 723mm

Overall Product Dimensions

428mm × 500mm × 995mm

Weight

≈50kg (including heating chamber)

Notes

1. Standard power adapter:

1. Input: AC100–240V 50/60Hz

2. Output: DC24V 3.75A (Actual supply per device label)

2. Optional: AC110V 50/60Hz heating chamber.

Standard Accessories

No.

Accessory

Qty

1

Coating Clamp

1 set

2

Material Cup

1 pc

3

Lifting Wires

3 pcs
