Nail Penetration Tester

Nail Penetration/Crush Tester For Lithium ion Battery

  • Model Number:

    TMAX-BNT-9002
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    20day
  • contact now
Product Details

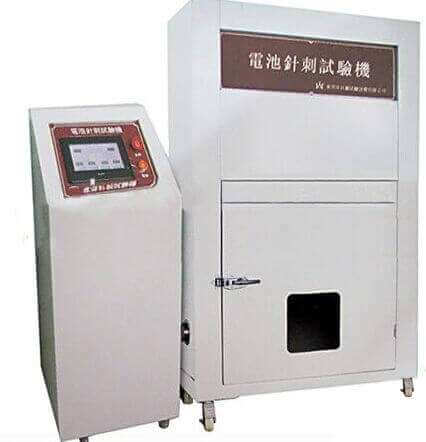

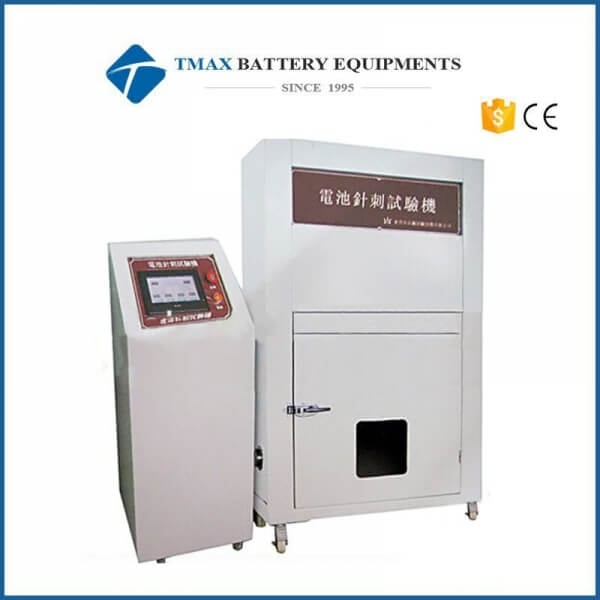

Nail Penetration/Crush Tester For Lithium ion Battery

Model

Battery Needling Testing Machine TMAX-BNT-9002

Dimension

900*1460*500mm

Weight

150kg

Controller dimension

330*1040*330mm

View window dimension

200*200mm, 10mm thickness Double explosion-proof glass

Source voltage

AC 110V/220V, 50HZ

Needling mode

Pneumatic

Needing force

150-200kg,±1% accuracy

Max testing size

200*200*200, adjustable

High temperature resistant steel needle

φ3mm and φ8mm

Needling height

150mm

Needling speed

10-40mm/s, adjustable,

Through the perpendicular to the battery plate direction pierce the battery,

stop (1min~6hour) automatically from a battery pull, easy disassembly.

Anti explosion case

Bottom is provided with four universal wheels, and can move freely

Exhaust fan port

15mm diameter



                   Nail Penetration Tester








1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Spot Welding Machine


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
