Dip Coater

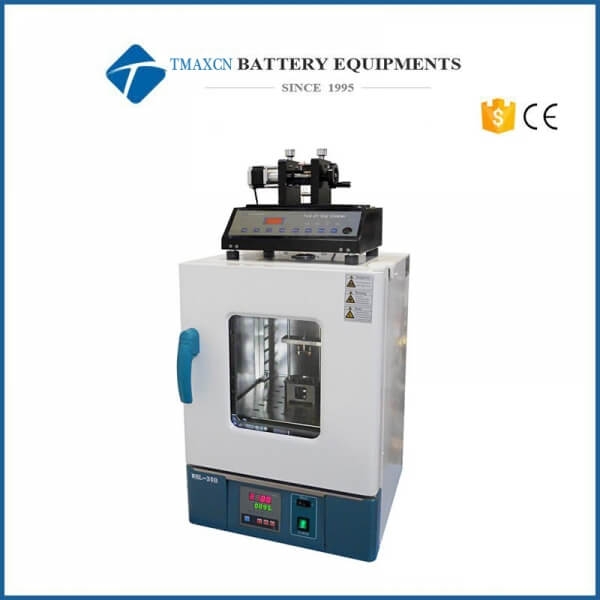

Nanometer Range Programmable Dip Coater with Drying Oven (1-500 nm/sec, 100°C Max. )

  • Model Number:

  • Dimension(L*W*H):

    440mm(L) x 460mm(W) x 1040mm(H)
  • Net Weight:

    57 kg
  • Compliance:

    CE Certified
  • Warranty:

    Two Years limited warranty with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    7 day
Product Details

Nanometer Range Programmable Dip Coater with Drying Oven (1-500 nm/sec, 100°C Max. )

PTL-NMB is CE Certified Nanometer Grade Desktop Programmable Dip Coater (1-500 nm/sec) with "touch-screen" digital control. Dipping rate, pulling rate, dwell time, and cycle life can be setup by touch screen controller and run dip coating automatically in the temperature controllable oven. It is designed for R&D Lab to prepare various optical or epitaxial films from liquid solution.


Working Voltage

110/220V AC selectable

Travelling Distance

0-60 mm Adjustable

Dipping/Pulling Speed

1-500 nm/sec Programmable with accuracy within +/- 0.05%

Temperature Range



6" LCD color touch screen controller

Sample Holder

Two screw sample clips are installed in the sample holder in order to carry the samples sliding up and down through two guide rods

Solution Container

One 150mL beaker is included

Beaker Holder

The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder.

Max. Sample Size

3"(L) x 2"(W)

Sample Weight

Less than 250g

Dipping/Pulling Motor

Stepping Motor


· Working Voltage: 110/220V AC selectable in Personalization

· Max. Power Consumption: 600W

· Chamber Dimensions: 280mm(L) x 280mm(W) x 280mm(H)

· Inner Material: Stainless Steel

· Product Dimensions: 406mm(L) x 406mm(W) x 610mm(H)

Product Dimensions

440mm(L) x 460mm(W) x 1040mm(H)


CE Certified


One year limited with lifetime support

Application Notes

· In order to get better film coating, the substrate shall be treated by plasma cleaner

· Use ultrasonic processor to disperse nano powder or homogenize solution to get better coating

· Liquid solution is placed in the controlled temperature oven with +/-1°C tolerance from room temperature to 100°C. Please keep warm at least half hour after the temperature reach the set point on the digital temperature meter to ensure an equilibrium temperature distribution in the liquid solution


Shipping Weight

46 kg (100 lbs)

Shipping Dimensions

45"(L) x45"(W) x40"(H)
