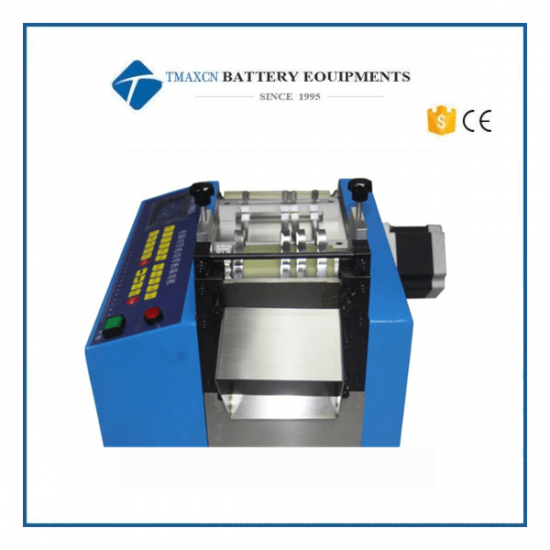

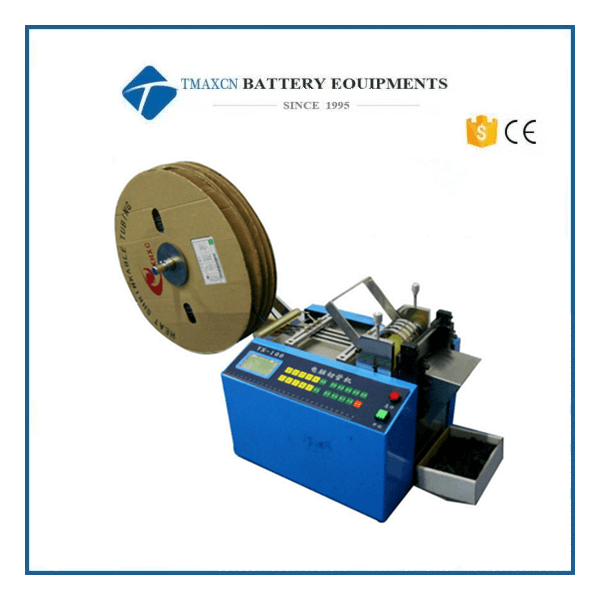

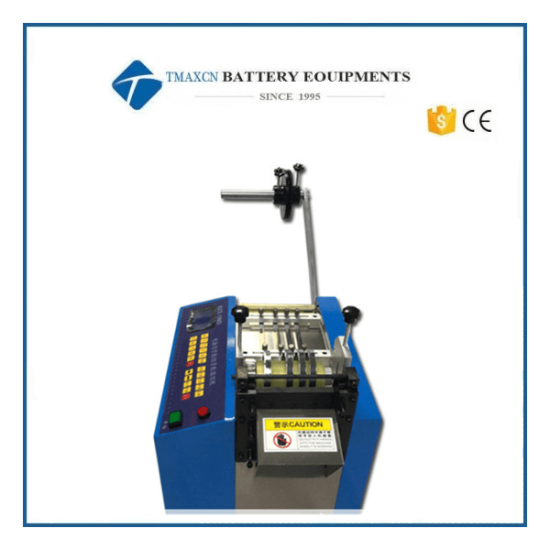

Nickel Belt Automatic Insulation Sleeve Plastic Tape Alloy Strip Cutting Machine

  • Model Number:

    TMAX-HZX-100D
  • Type:

    Automatic
  • Input Power:

    0.6KW

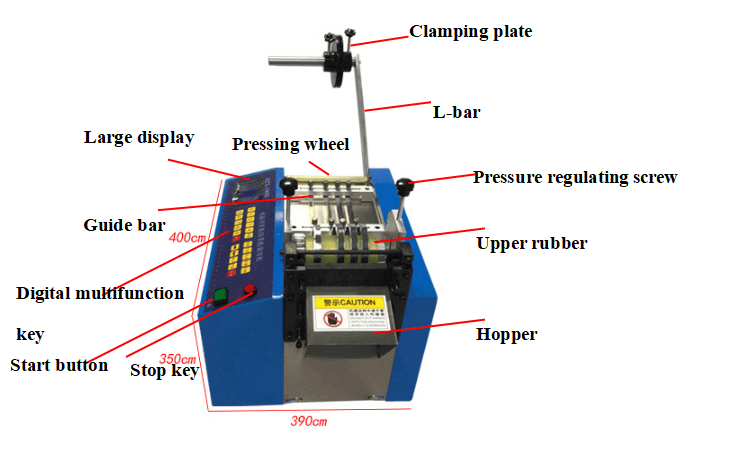

  • Dimension(L*W*H):

    L400*W350*H390mm
  • Net Weight:

    32 kg
  • Compliance:

    CE Certified
  • Warranty:

    One year limited warranty and lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

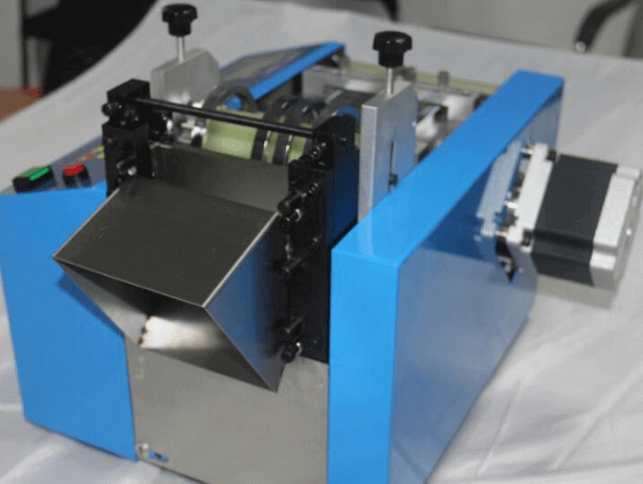

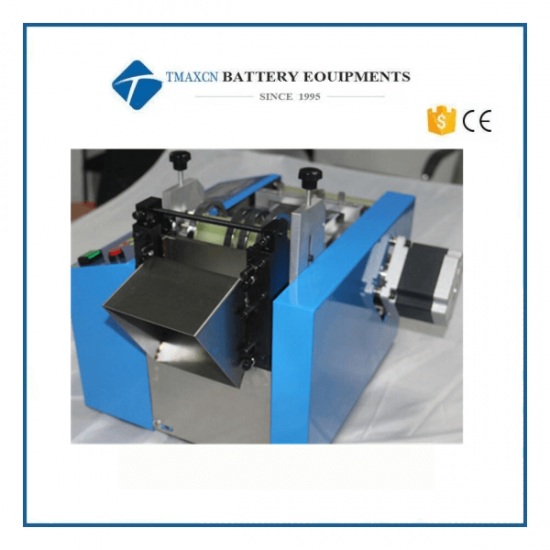

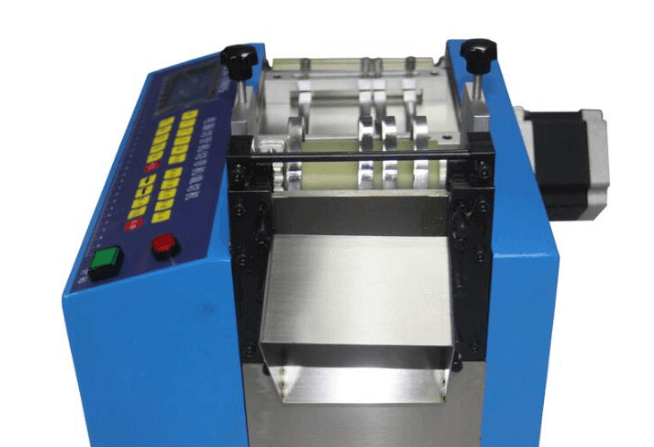

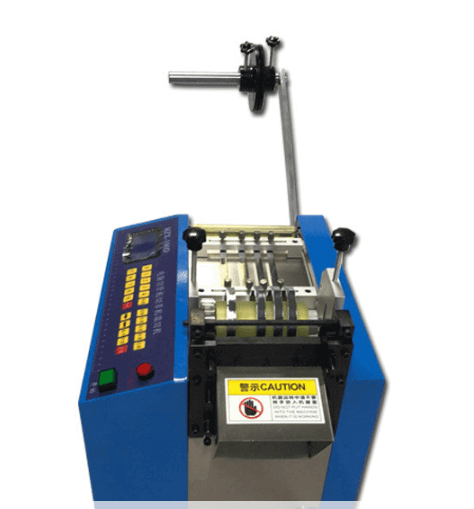

Nickel Belt Automatic Insulation Sleeve Plastic Tape Alloy Strip Cutting Machine



Features

The cutting machine adopts professional art knife and SKD fine steel knife. The cutting knife is more flat and can work efficiently. With the professional control system, the cutting speed can be adjusted and controlled at will, and the total accumulated count of the machine can be accumulated in groups of automatic equipment. The micro-computer automatic cutting machine has the following uses: heat shrinkable pipe cutting, heat shrinkable sleeve cutting, silica gel pipe cutting, PVC hose cutting, rubber pipe cutting, plastic pipe cutting, nylon pipe cutting, PE gas pipe cutting, clean water pipe cutting, latex pipe cutting, transparent pipe cutting, optical fiber pipe cutting, etc.



Advantages

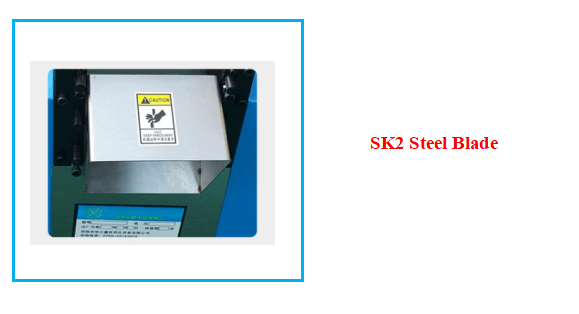

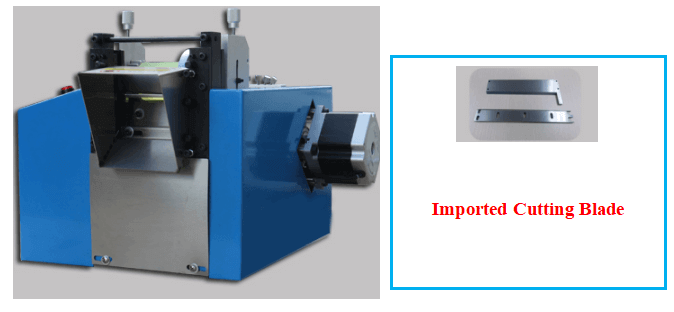

1. High quality imported blade

2. Cutter speed adjustable

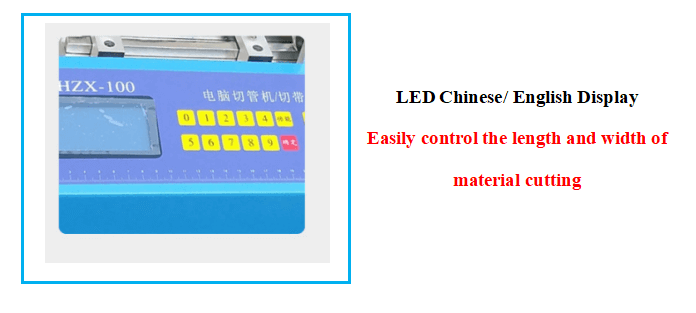

3. LCD large screen display in Chinese and English

4. Total amount can be accumulated automatically

5. Time can be set in batch

6. Accuracy: 0.1mm

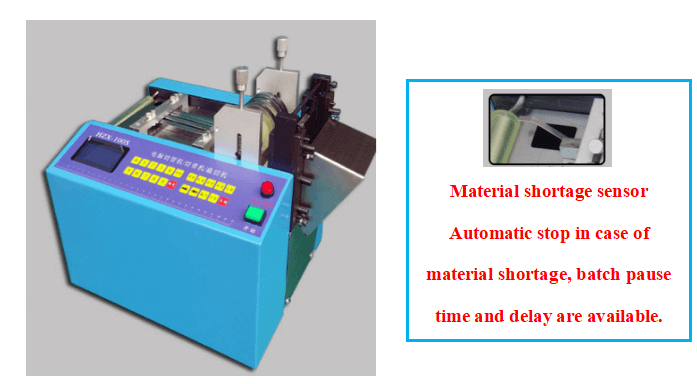

7. The machine will stop automatically in case of material shortage, and no one is required to watch.


Specifications

Model

Knife

Power Supply

Cutting Diameter Range

Cutting Length

Cutting Accuracy

TMAX-HZX-100D

SKD steel knife

220V,0.6KW

1-30mm

1-9999.9

0.1mm

 Cutting width:100-1600mm optional according to customers requirement

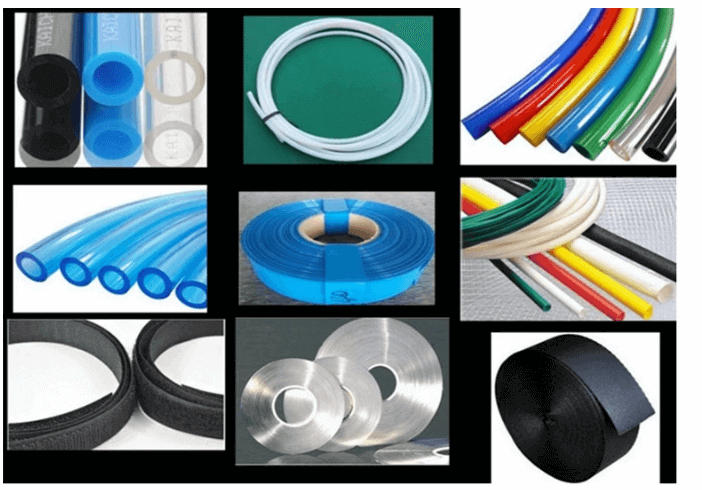

Application
