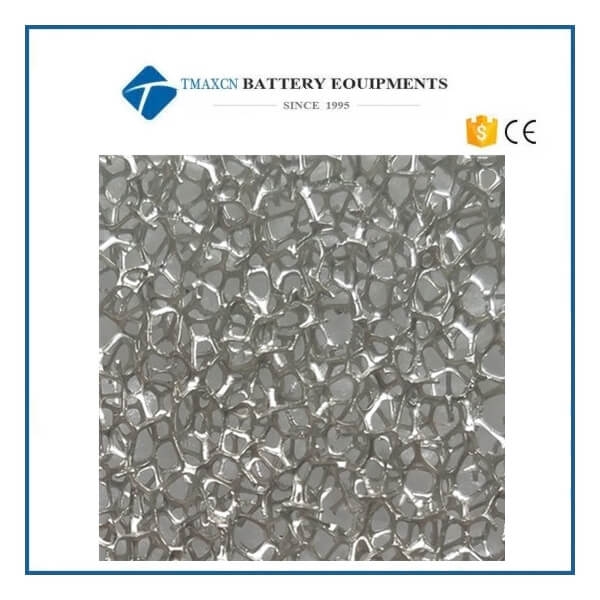

Nickel Foam Sheet Metal Foam for Battery Electric Capacity
Model Number:
TMAX-Nickel-Foam2Compliance:
CE CertifiedPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
2 days
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : Wechat 18659217588
Previous:
Roll Nickel Foam Wholesale Nickel Metal FoamNext:
0.5mm 1.0mm 1.5mm 2.0mm Nickel Foam Electrode Sheet for Lithium Battery Cathode Materials
Nickel Foam Sheet Metal Foam for Battery Electric Capacity
Introduction
Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness.
Usefulness: (Various shapes can be produced)
1. Used as the base plate/substrate of positive electrode in Ni-MH / Ni-Cd battery, Supercapacitor.
2. Filtration materials of air / oil / smoke etc.
3. Porous electrode in Galvano-Chemistry Engineering.
4. Elimination of heat.
5. Amortization materials.
6. Noise-Absorbing and Vibration-Absorbing materials.
7. Electromagnetic shielding materials.
8. Catalyst carrier.
9. Precious metal recovery.
Specifications
Type
Open cell
Purity
> 99%
Form
Sheet or Roll, depending on size & thickness
Cell Size (PPI)
10-150PPI, as per request
Thickness
Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request
Size & Shape
Standard: 500*500mm/ 200*300mm; can be made in different shape as per request
Porosity
95%-98%
Open Cell Rate
≥98 %
Volume Density
>0.1g/cm3, as per request
Surface Density
200-2500 g/m ^2, as per request
Thermal Conductivity (Theoretical)
>3W/M.K
Mechanical Strength (Theoretical)
≥2~7MPa
Tensile Strength (Theoretical)
8~50MPa
Temperature Resistance (Theoretical)
≥500℃
Type |
Open cell |
Purity |
> 99% |
Form |
Sheet or Roll, depending on size & thickness |
Cell Size (PPI) |
10-150PPI, as per request |
Thickness |
Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request |
Size & Shape |
Standard: 500*500mm/ 200*300mm; can be made in different shape as per request |
Porosity |
95%-98% |
Open Cell Rate |
≥98 % |
Volume Density |
>0.1g/cm3, as per request |
Surface Density |
200-2500 g/m ^2, as per request |
Thermal Conductivity (Theoretical) |
>3W/M.K |
Mechanical Strength (Theoretical) |
≥2~7MPa |
Tensile Strength (Theoretical) |
8~50MPa |
Temperature Resistance (Theoretical) |
≥500℃ |
0.1mm*200mm*300mm |
0.2mm*200mm*300mm |
0.3mm*200mm*300mm |
0.5mm to 1.7mm*200mm*300mm |
2mm*200mm*300mm |
3 to 4mm*200mm*300mm |
5mm*200mm*300mm |
6mm*200mm*300mm |
8mm*200mm*300mm |
10mm*200mm*300mm |
10 to 20mm*200mm*300mm |
The size can be customized |
