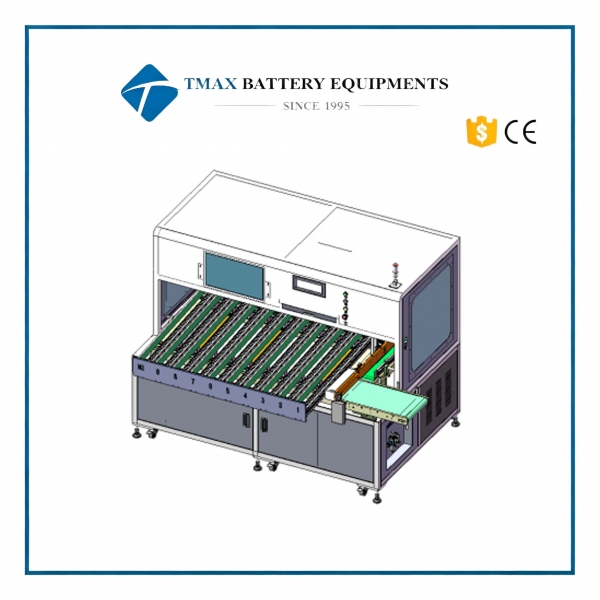

Prismatic Cell Sorting Machine

Prismatic Battery Cell 10 Channels Automatic Sorting Machine

  • Model Number:

    TMAX-FN-10

  • Type:

    Semi-Automatic

  • Compliance:

    CE Certified

  • Warranty:

    1 Year Limited Warranty With Lifetime Support

  • Place of Origin:

    China

  • Shipping Port:

    Xiamen

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    30 days

products categories

contact us

Product Details


Prismatic Battery Cell 10 Channels Automatic Sorting Machine


 Ⅰ Functional Overview

A prismatic cell sorting machine is a high-efficiency automated equipment specifically
designed for the post-production sorting of lithium batteries. The system integrates a
computer, PLC, high-precision servo motors, and a high-accuracy internal resistance tester,
delivering high precision and fast operation.
This equipment is widely used in power batteries, 3C digital batteries, and energy storage
batteries, meeting precise cell matching requirements in the new energy sector. It complies
with international safety standards. Its intelligent features are driving lithium battery
manufacturing toward Industry 4.0, becoming a key solution for improving core

competitiveness.


Ⅱ Performance Parameters

Item

Specification

Applicable battery type

Prismatic cell

Compatible size range

Length 100–300 mm, Width 20–85 mm, Height 100–300 mm

Sorting grades

9 + NG grade

Control system

PLC control (brand can be specified)

Loading & testing

Manual loading + testing integrated (optional internal resistance tester: Hioki / HK or other specified brands)

Scanning function

Supports QR code and barcode scanning

Automation level

Fully automated sorting, minimal manual intervention

MES interface

Real-time data recording (QR code, test data) + SPC report generation

Sorting speed

Up to 1000 pcs/hour (≥3× manual efficiency)



Ⅲ Environmental Requirements

Item

Specification

Ambient temperature

–30°C to 50°C

Humidity

≤90%

Air source pressure

0.5～0.6 MPa

Power supply

220V, 50/60Hz

Floor load capacity

≤200 kg/m²

Grounding type

Direct grounding

Site requirements

No pollution or strong electromagnetic interference

Installation environment

Flat, vibration-free surface

Noise level

≤80 dB



Ⅳ Equipment Specifications

Item

Specification

Machine dimensions

L2210 × W1624× H1596 mm (subject to actual machine)

Machine weight

Approx. 458kg

Standard color

White (customizable)

Total power

≤1.5 kW



Ⅴ Machine Appearance & Size





Ⅵ Machine Structure Description

The equipment is composed of a mechanical platform, electrical components, stepper motor, sensors, PLC controller, and industrial PC.



Machine Structure Overview (Diagram subject to actual machine)





Machine Configuration

Configuration Name

Component

Brand

Remarks

Main Machine

Cabinet

TMAX

Sheet metal base + profile frame

Main worktable

TMAX



Electrical System

Barcode scanner

Honeywell



Industrial PC

Yuefei

N5095

Servo motor

Xinjie



PLC

Xinjie



Display monitor

Philips / HKC



Internal resistance tester

HOPU



Standard components

Xingchen, Deke

coating laminating machine
