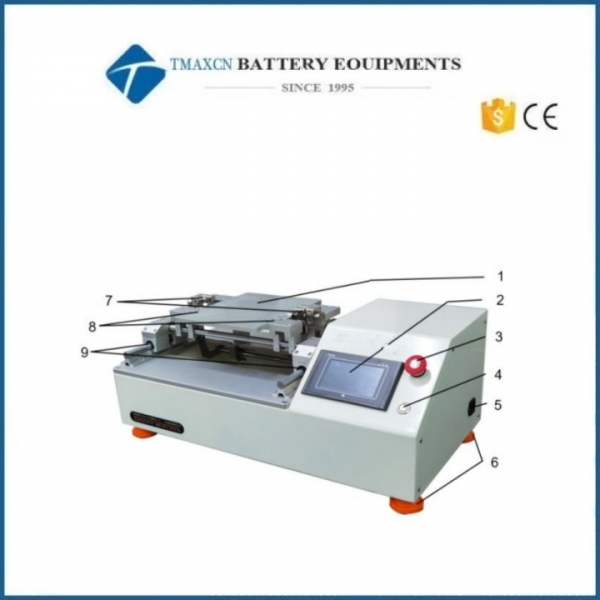

Programmable Flexible Bending Cycle Tester for Products up to 15 Inches

Product Introduction

Purpose: This machine is mainly used for the bending tests of flexible film batteries, FPC, OLED, etc. It performs back-and-forth bending tests at a certain speed, stroke, angle, and count. The machine is compact in size and suitable for laboratory use.

Features: This machine is mainly composed of AC servo motors, imported linear sliders, PLC programs, touch screens, steel materials, etc. It is a professional testing equipment specifically for flexible product testing. The operation is simple and easy to understand, and it is a highly stable device.

1. Test station: 1 station

2. Test product size: 0 - 15 inches

3. Testing angle: 0 - 180° programmable

4. Bending radius: R1 - R20 manually adjustable

5. Operating mode: 7-inch color touch screen

6. Control mode: PLC software

7. Counting: 0 - 99999999 times set by PLC

8. Speed: 10 - 60 times/minute adjustable

9. Transmission: Using AC servo motors

10. Fixture: Designed according to the sample (optional)

11. Power supply: 220V 50Hz

12. Weight: Approximately 30kg
