Supercapacitor Assembly Machine Line, 60138 Cylinder supercapacitor production line

Riveting And Pressing Machine

  • Model Number:

    TMAX-YM60-2G
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

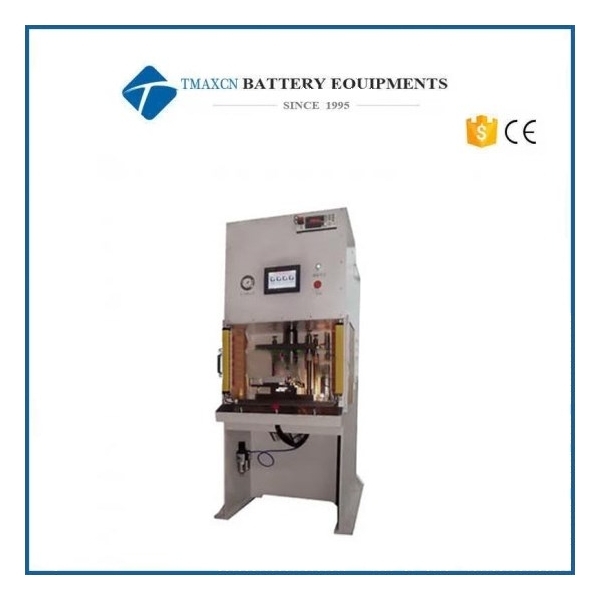

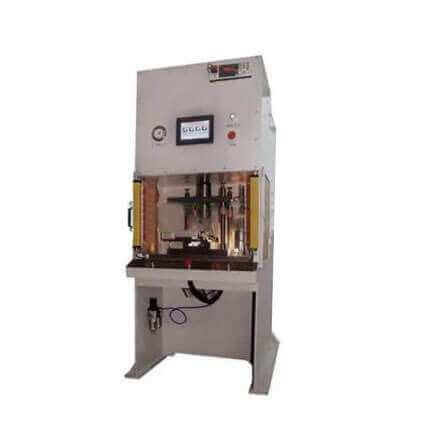

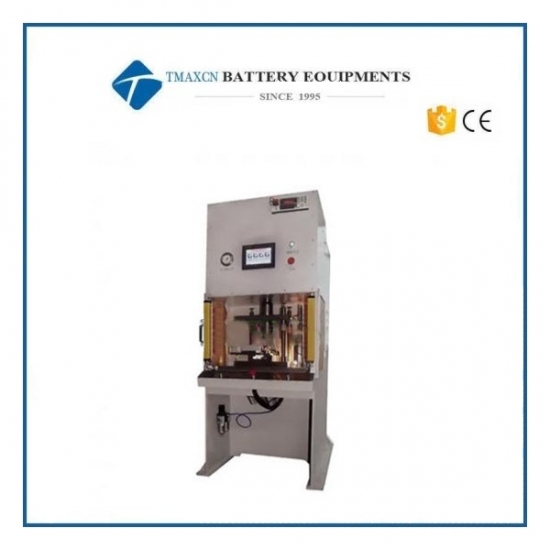

Riveting And Pressing Machine


Functional overview

The device is suitable for the riveting and pressing of quadrate supercapacitor and lithium ion power battery' s pole ear and leading-out terminal.


Functional characteristics

1.Adopt hydraulic system as the punching and trimming power, with big force, adjustable speed and high efficiency.

2.Mould squeeze head adopts high-strength and high-wear-resisting alloy die steel, with good wear resistance.

3.Equipped with the imported resistance tester to measure the contact resistance between pole ear and terminal after riveting and pressing.

4.Equipped with the imported displacement sensor to measure the thickness of the product after riveting and pressing.

5.Equipped with the imported two-dimension bar code scanner. Data can be stored and derived, for the convenience

of quality control and traceability on product.

6.Equipped with security door and safety protection light grid, with safe and reliable device operation.

7.Adopt the imported PLC. Touch screen displays operation.


Technical parameters

Capacity

0.39~0.6ea/s

Punching diameter

φ6.5mm±0.05mm(customized)

Unipolar ear piercing

2pcs

Punching and shearing localization accuracy

±0.2mm

Hole punching and shearing burrs

≤13pm

Hole punching and shearing thickness

3~5mm

Power source

AC380V(±10%)  50Hz

Power

 6kW

Overall dimensions (LxWxH)

830x860x2970mm

Weight

800kg
