Model

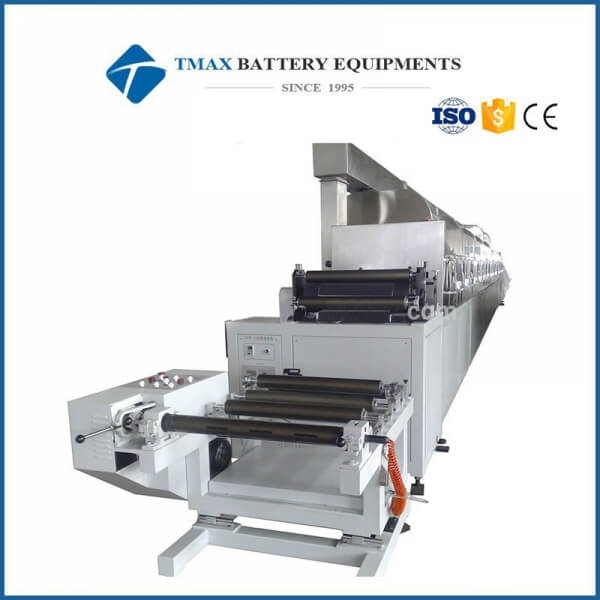

Lithium ion Battery Coating Machine TMAX-DYG-132MS

Source voltage

AC 220V/110V, 50HZ/60HZ

Power

40000W

Suitable material thickness

Aluminum foil : 0.01-0.03mm

Copper foil : 0.006-0.020mm

Max electrode width

400mm

Warranty

One Year limited warranty with lifetime support

Mechanical tape speed

1-6m/min

Coating speed

0.6～8m/min, adjustable

Air compression

0.5-0.7MPa

Coating mode

Single face continuous and intermittent coating

Equipment length

8.5M (3M*2Section oven+2.5M)

Equipment function

1 PLC intelligent control equipment, has a continuous convex point easily

   eliminate clearance

2 Use hot air circulation heating mode, high thermal efficiency

3 Coating method : continuous and intermittent coating

   3.1 The first face automatic fixed-length block coating

   3.2 The second face automatic tracking the first face composite coating

   3.3 Reverse coating interval length distance
4 Coating length : More than 50mm can set clearance or continuous coating
   The minimum coating length : 8mm, Minimum interval length : 5mm,

   The minimum track length : 50mm

5 Double-sided dry thickness accuracy : ≤±0.003mm
  5.1 Both the front and coated alignment error : ≤±0.5mm

  5.2 Each length error : ≤±0.5mm
  5.3 Each paragraph width error : ≤±0.5mm
  5.4 Trailing : ≤±0.5mm
6 Volume release tension can be adjusted continuously : 0～25N

7 Precision rectification controller : ±0.2mm(Re)
8 Core winding diameter : 3 inches, USES the gas rose axis, Max 300kg

9 Baking mode :

  9.1 Hot wind drying, hot wind circulation,
  9.2 Electric heating,

  9.3 Hot air volume can be adjusted, air volume can be adjusted
