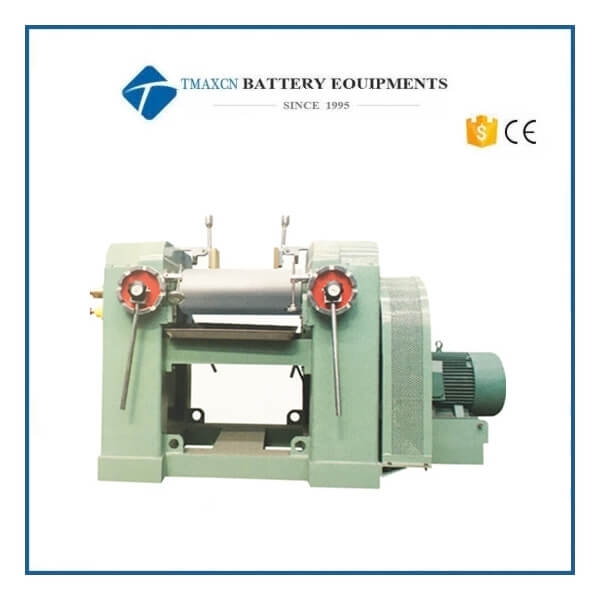

Three Roller Mill Machine

Roller Diameter 150mm 230/260mm 305mm 400mm, Three Roller Mill Machine with A Speed Reducer Gear Box

  • Model Number:

    TMAX-SQ/JRS
  • Input Power:

    3KW
  • Net Weight:

    500KG
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Roller Diameter 150mm 230/260mm 305mm 400mm, Three Roller Mill Machine with A Speed Reducer Gear Box


Roller mill is welded by high quality steel plate. The transmission gear adapts oil-immersed type and the operative handwheel is transmitted by gear. It features beautiful appearance, convenient to operate, long life and so on. Particularly it is suitable for grinding the material with high dispersive viscosity and fine size. JRS series Three Roller Mill machine widely used in pencil leads, colorant, which need very strong force. The machine with a speed reducer gear box.


Applications

SQ series roller mill is widely used in grinding & dispersing soap, oil, cosmetics, lubrication grease, CSA new material, Carbon fiber, etc.

20161125152454_1362


Applications

It is widely used in all kinds of oil, electronic paste, plant gum , soap, etc. And YSH three roller mill specialized in grinding and dispersing powder type material like peanut, guar gum, etc.


Configuration table

Optional

Material of body frame

Stainless steel



Carbon steel

Adopting gap adjusting

Topple over device

Chamber

Inverter control



Model

SQ6/JRS150

SQ9/JRS260

SQ12

SQ16/JRS405SGX16

Roller diameter(mm)

150

230/260

305

400

Length of roller working surface(mm)

300

380/675

514

810

Distance from discharge hole to ground(mm)

660

720

680

730

Output(L/h)

25-30

30-60

60-90

100-140

Roll rotating speed

Low speed roll

34

13.4

148

11.5

Medium speed roll

78

39.4

43.9

21

HIgh speed roll

181

116.3

129.8

91.9

Main motor power(KW)

3

15

30

55

Overall dimension (mm)

L

920

2060

2400

3430

W

880

1420

1680

2010

H

1150

1200

1250

1500

Machine weight(kg)

500

2500

4800

6000

Packing dimension(mm)

L

1000

2200

2500

3550

W

1000

1550

1800

2150

H

1400

1500

1600

1900
